OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

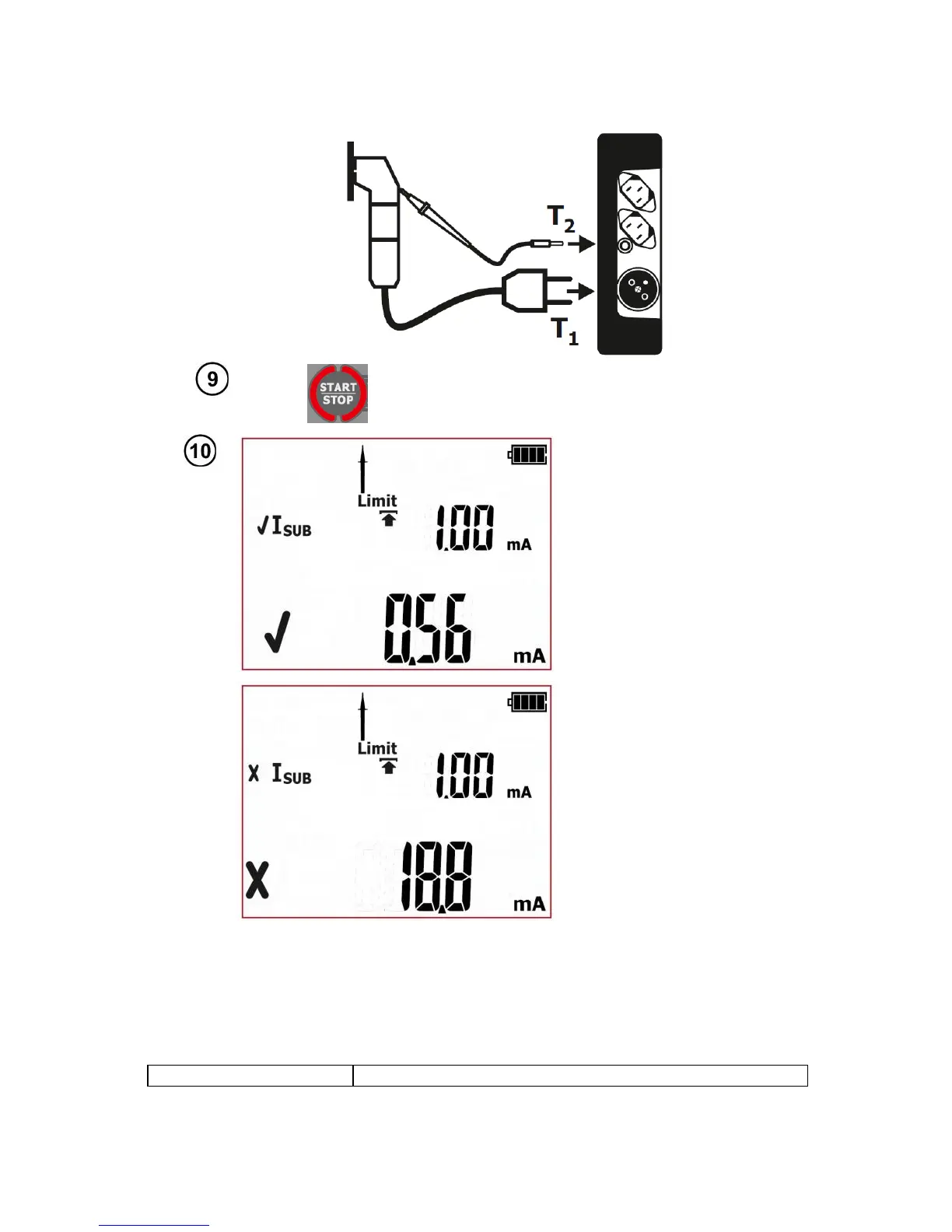

Press START/STOP to commence
measurement of protective conductor re-
sistance.
Correct result. The value
of leakage current is
below the set limit. Green
LEDs of PASS indication
are on.
Inorrect result. The value
of leakage current is
above the set limit. Red
LEDs of FAIL indication
are on.
The result is displayed on screen until ESC button is pressed, another test is run
by pressing START/STOP button, measurement mode is changed, settings mode
is activated or the test result is stored in the memory.
Additional information displayed by the tester
Measuring range is exceeded.
More messages displayed by the tester are described in section 2.1.2 of this manual.
Connection diagram for Class II (III) appliances. The test lead with the probe
must be connected to T
2
terminal socket. The measurement is made between
shorted L and N, and the probe:
