OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02
35

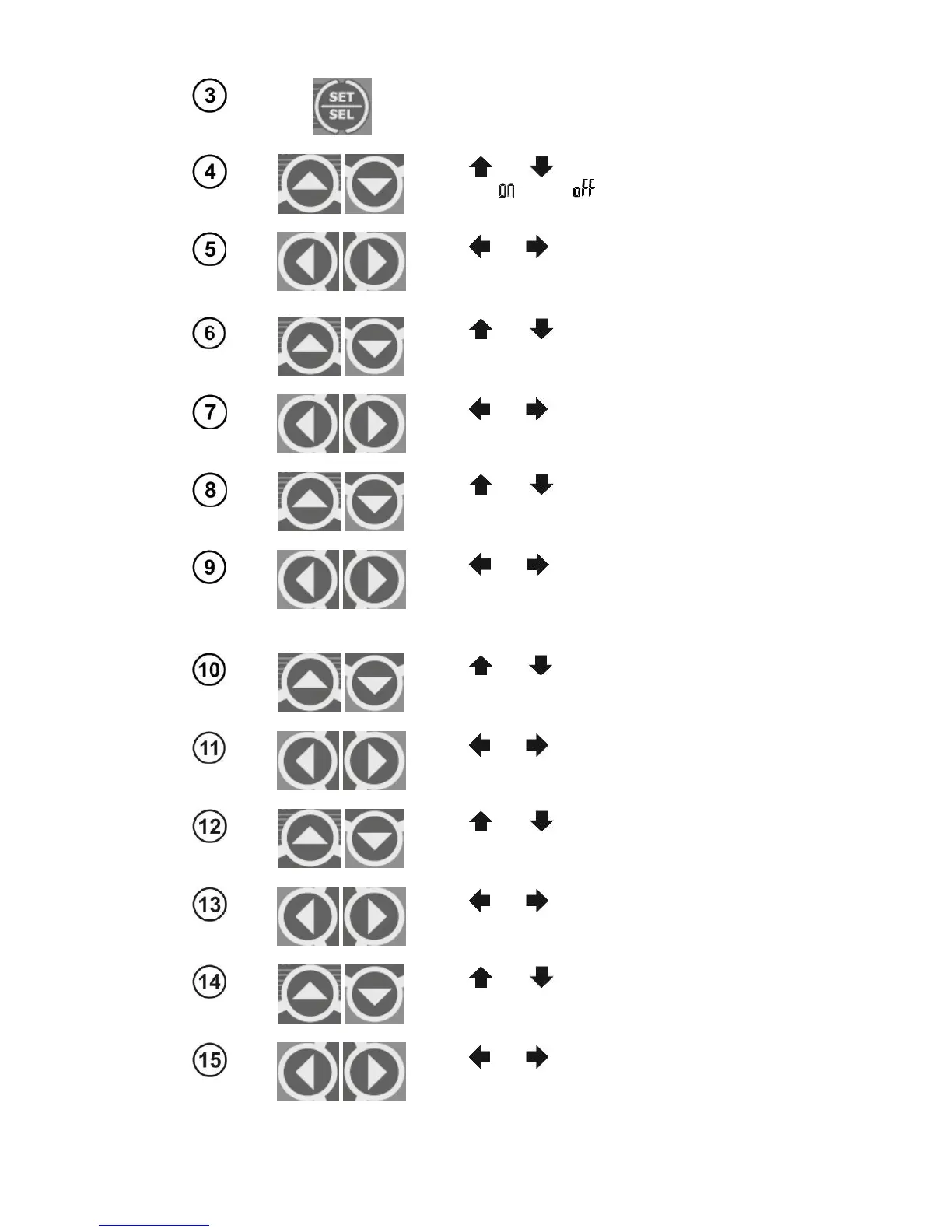

Press SET/SEL button to set the meas-
urement parameters.
Use and
to set the visual inspec-
tion
: on ( ) or off ( ).
Use and to go to the settings of test
current value for PE resistance measure-
ment.
Use and
to set the test current val-
ue for PE resistance measurement
.
Use and to go to the limit settings
for PE resistance measurement.
Use and
to set the upper limit for
the PE conductor resistance
.
Use and to go to the test time dura-
tion settings for PE conductor measure-
ment. Select „oFF” to switch off this test
completely.
Use and
to set the test time
duration
for PE conductor measurement.
Use and to go to the insulation re-
sistance measurement voltage settings.
Use and
to set the test voltage of
insulation resistance measurement
.
Use and to go to the limit settings
for insulation resistance measurement.
Use and
to set the lower limit of in-
sulation resistance
.
Use and to go to the test time
duration settings for insulation resistance
measurement.
