OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

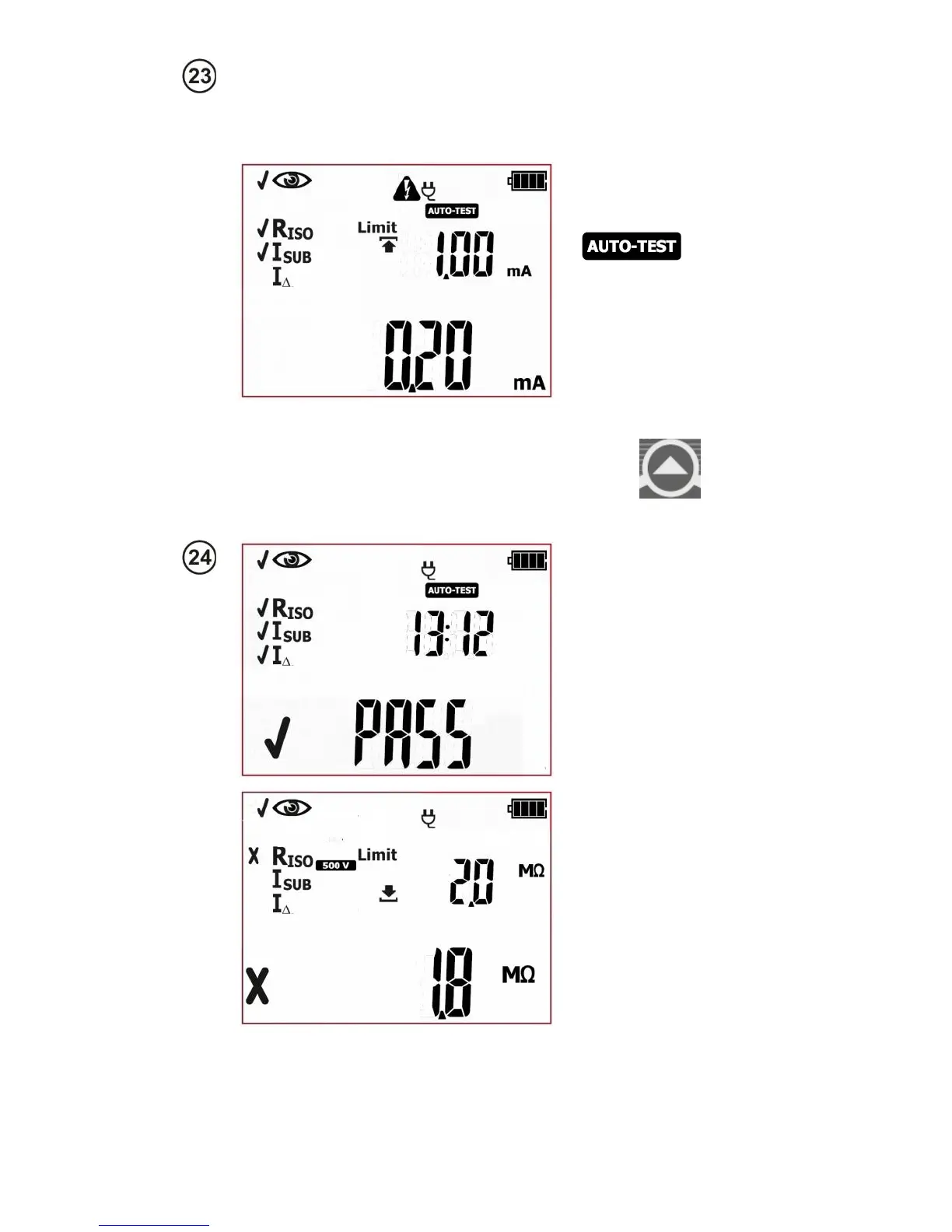

Measurement of substitite
leakage current has been
completed. If the
measurement result is
negative, further
measurements will not be
conducted. In case of the
positive test result:
If the AUTO-TEST
( ) mode is
on, the tester will
automatically run the
subsequent tests. If the
AUTO-TEST mode is off
the tester will wait for the
START/STOP button to
be pressed. At this stage
it is possible to return to
the previous test to repeat
it: press button.
Positive test result for the
tested device. The result
of each single test of the
sequence is positive.
Green LEDs of PASS
indication are on. On the
right side of the screen
the current time is shown.
Negative test result for the
tested device. One of the
subsequent tests has
ended with negative result
- that result is displayed
on screen (screen on the
left, as an example, shows
failed insulation resistance
test). Red LEDs of FAIL
indication are on.
The result is displayed on screen until ESC button is pressed, another test is run
by pressing START/STOP button, measurement mode is changed, settings mode
is activated or the test result is stored in the memory.
