OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

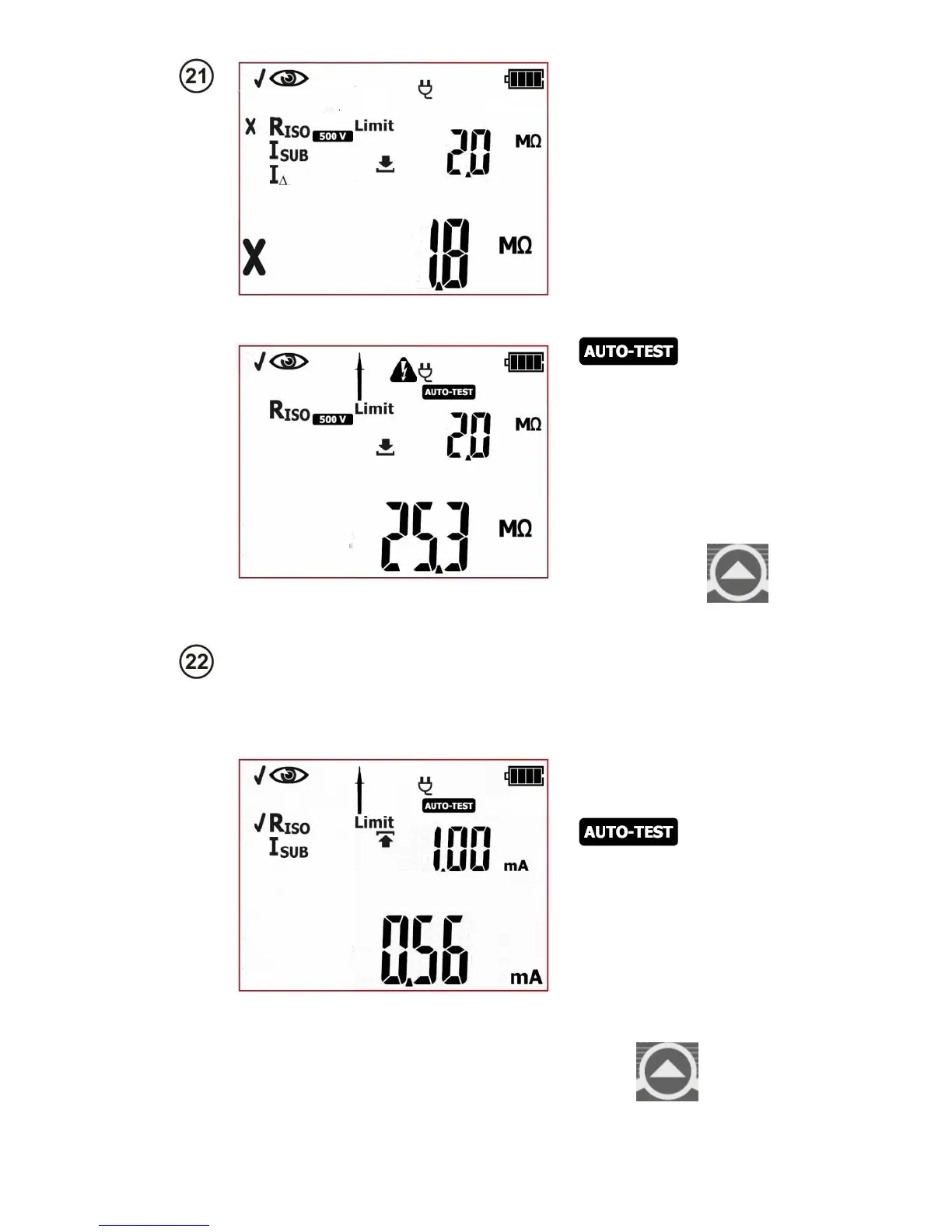

Negative visual inspection
result, further measure-
ments will not be con-
ducted. Red LEDs of FAIL
indication are on. On the
right side of the screen
the current time is shown.
Positive visual inspection
result. If the AUTO-TEST
( ) mode is
on, the tester will automat-
ically run the subsequent
tests, which by default is:
R
ISO
. If the AUTO-TEST
mode is off the tester will
wait for the START/STOP
button to be pressed. At
this stage it is possible to
return to the previous test
to repeat it: press
button.
Measurement of R
ISO
insulation resistance has
been completed. If the
measurement result is
negative, further
measurements will not be
conducted. In case of the
positive test result:
If the AUTO-TEST
( ) mode is
on, the tester will
automatically run the
subsequent test, which by
default is: I
SUB
. If the
AUTO-TEST mode is off
the tester will wait for the
START/STOP button to
be pressed. At this stage
it is possible to return to
the previous test to repeat
it: press button.
