3.6.5 External Reset IC
MCU
VDD
VSS
VCC
GND
R
S
T
Reset
IC
VDD
VSS
RST
Bypass
Capacitor
0.1uF

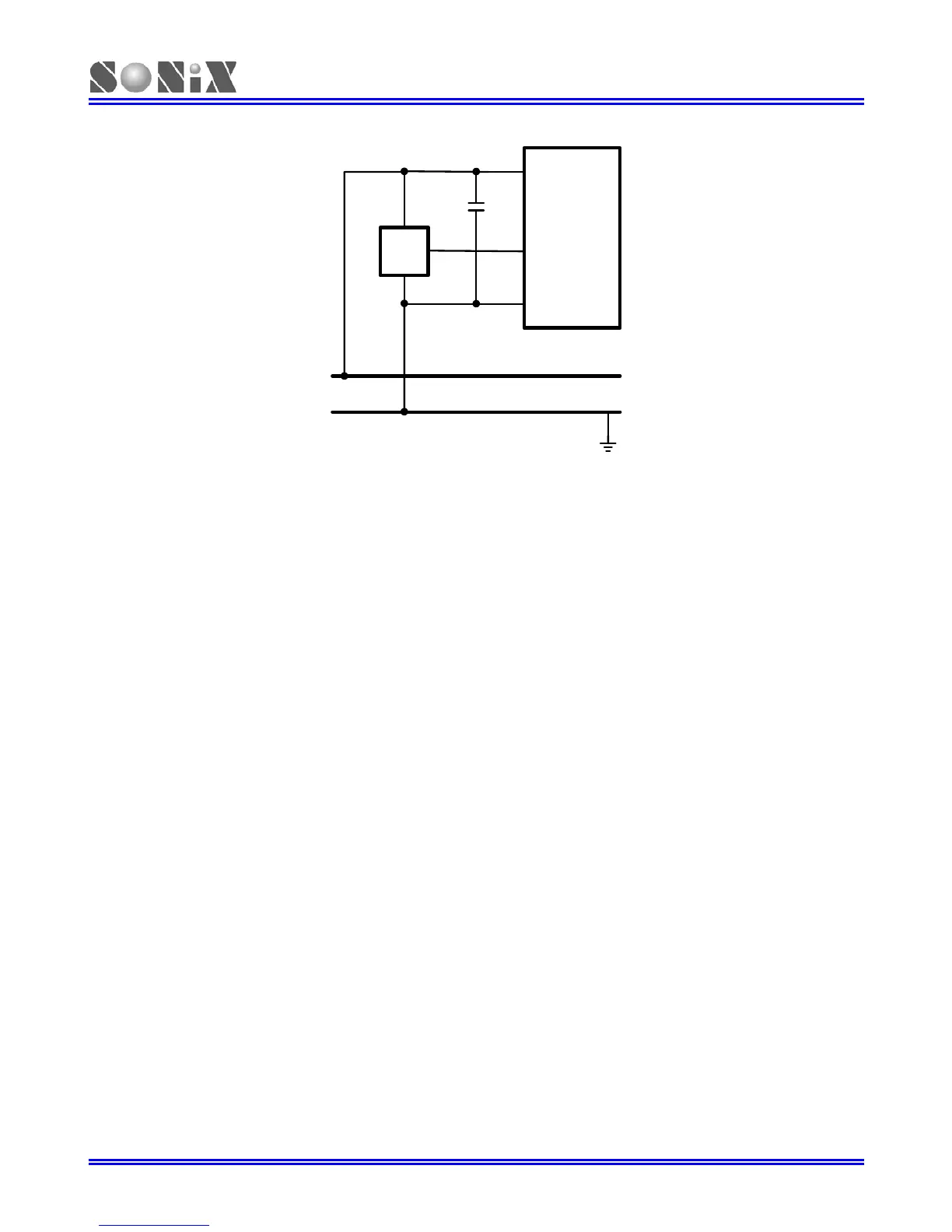

The external reset circuit also use external reset IC to enhance MCU reset performance. This is a high cost and good
effect solution. By different application and system requirement to select suitable reset IC. The reset circuit can
improve all power variation.
