SONIX SN8P2624 - 12.2 SOP 28 PIN

SN8P2624
8-Bit Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 92 Version 0.3

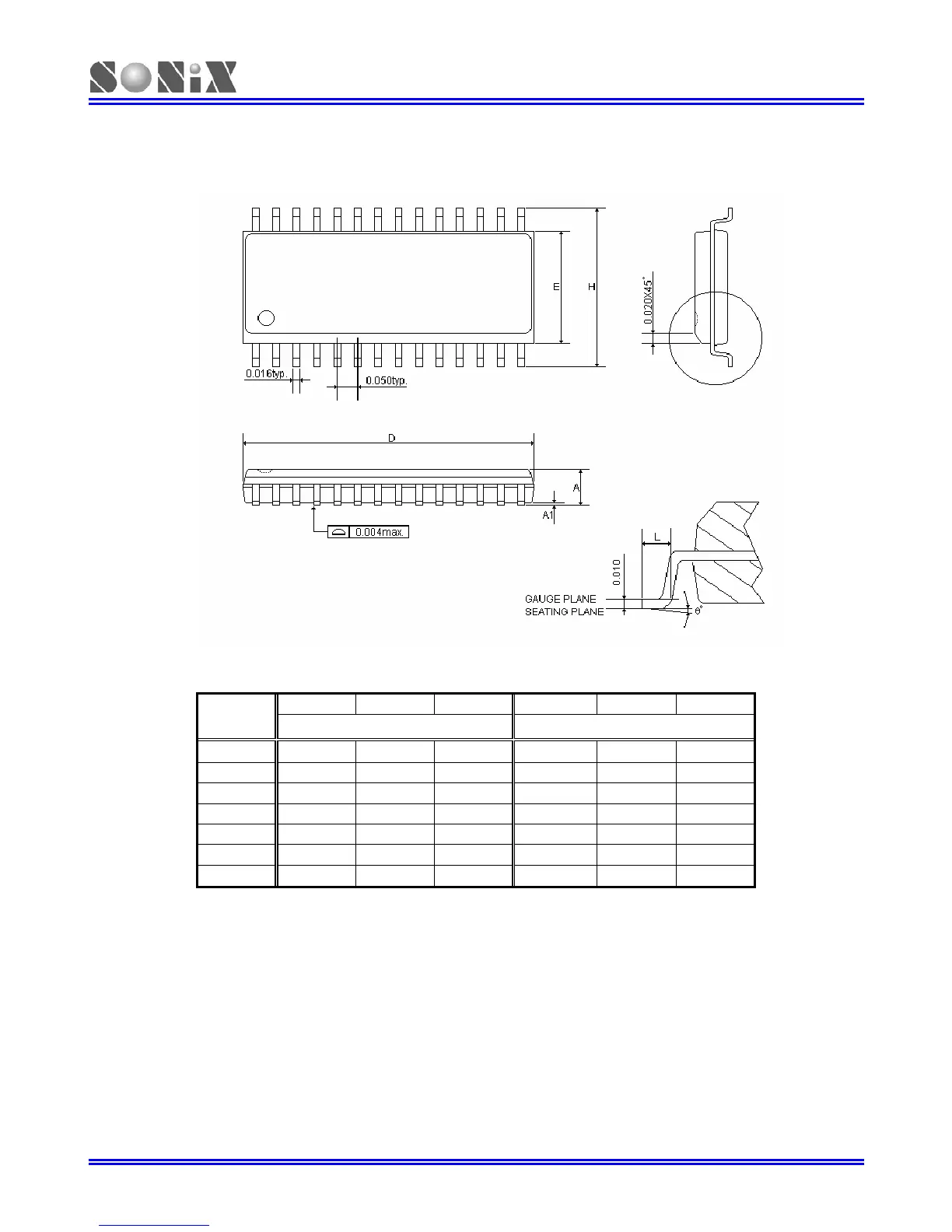

12.2 SOP 28 PIN
MIN NOR MAX MIN NOR MAX
SYMBOLS
(inch) (mm)
A 0.093 0.099 0.104 2.362 2.502 2.642
A1 0.004 0.008 0.012 0.102 0.203 0.305
D 0.697 0.705 0.713 17.704 17.907 18.110
E 0.291 0.295 0.299 7.391 7.493 7.595
H 0.394 0.407 0.419 10.008 10.325 10.643
L 0.016 0.033 0.050 0.406 0.838 1.270
θ° 0° 4° 8° 0° 4° 8°
