SONIX SN8P2624 - 12 Package Information; 12.1 SK-DIP 28 PIN

SN8P2624
8-Bit Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 91 Version 0.3
1
1
1
2
2
2

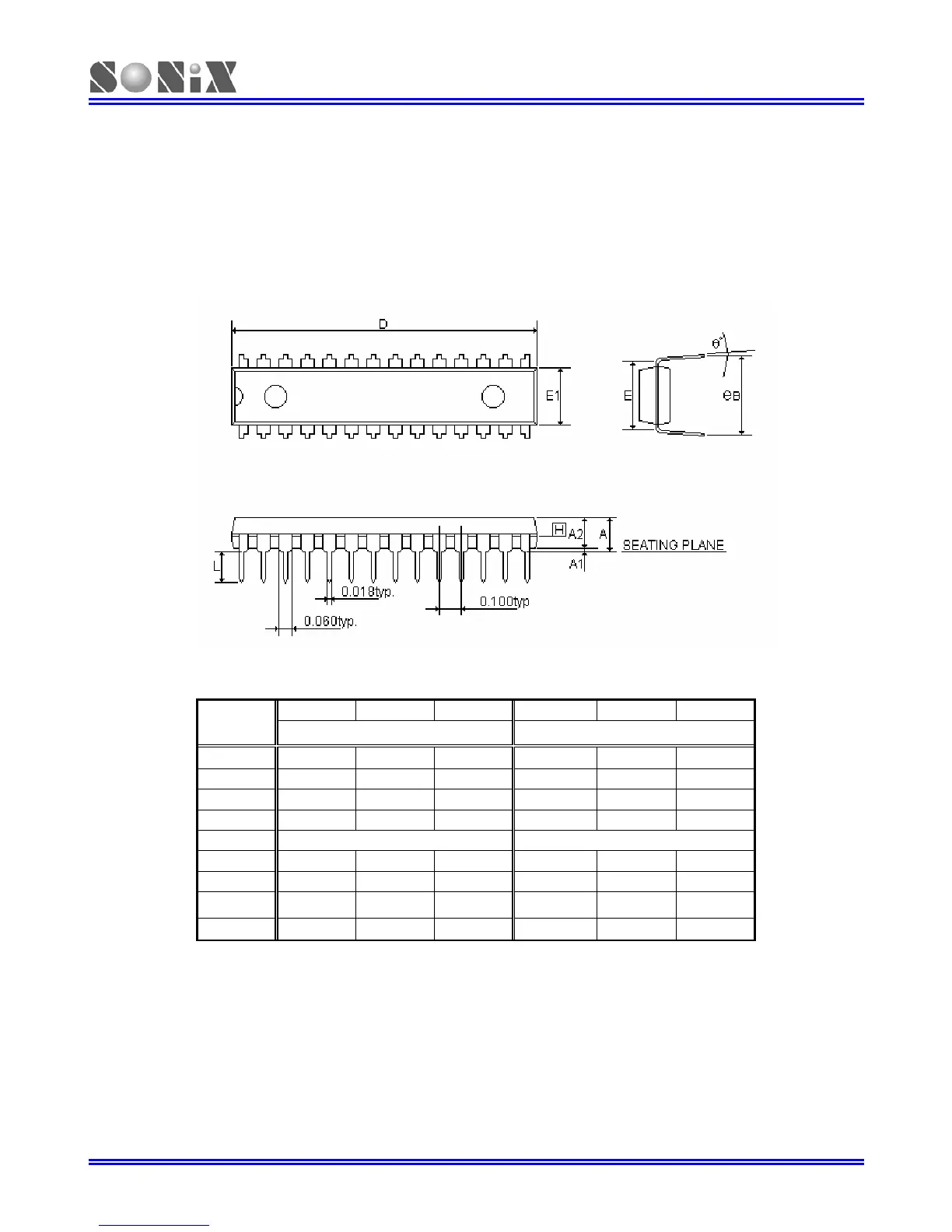

PACKAGE INFORMATION
12.1 SK-DIP 28 PIN
MIN NOR MAX MIN NOR MAX
SYMBOLS
(inch) (mm)
A - - 0.210 - - 5.334
A1 0.015 - - 0.381 - -
A2 0.114 0.130 0.135 2.896 3.302 3.429
D 1.390 1.390 1.400 35.306 35.306 35.560
E 0.310 7.874
E1 0.283 0.288 0.293 7.188 7.315 7.442
L 0.115 0.130 0.150 2.921 3.302 3.810
ｅ B
0.330 0.350 0.370 8.382 8.890 9.398
θ° 0° 7° 15° 0° 7° 15°
