SONIX SN8P2624 - 12.3 SSOP 28 PIN

SN8P2624
8-Bit Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 93 Version 0.3

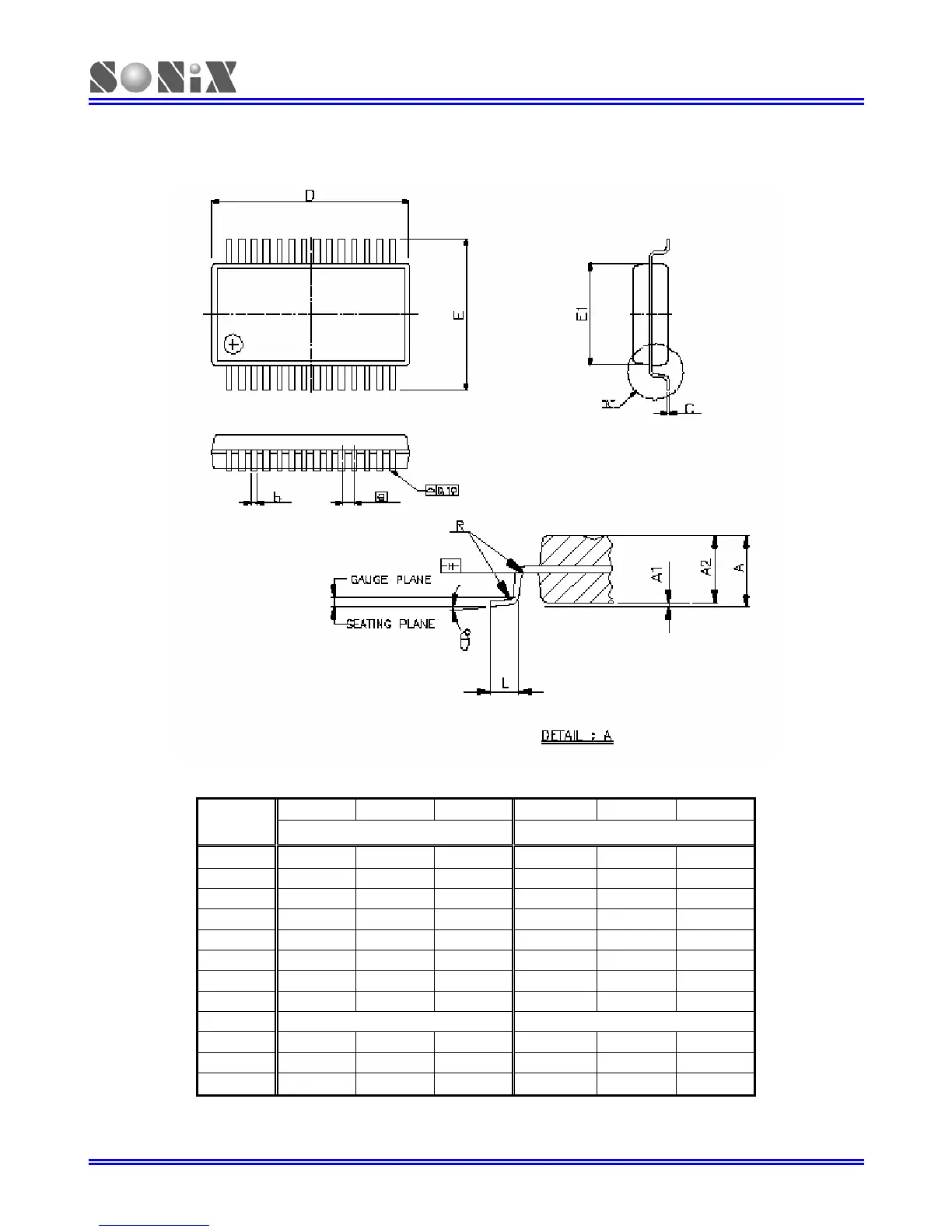

12.3 SSOP 28 PIN
MIN NOR MAX MIN NOR MAX
SYMBOLS
(inch) (mm)
A
- - 0.08
- - 2.13
A1
0.00 - 0.01
0.05 - 0.25
A2
0.06 0.07 0.07
1.63 1.75 1.88
b
0.01 - 0.01
0.22 - 0.38
C
0.00 - 0.01
0.09 - 0.20
D
0.39 0.40 0.41
9.90 10.20 10.50
E
0.29 0.31 0.32
7.40 7.80 8.20
E1
0.20 0.21 0.22
5.00 5.30 5.60
[e] 0.0259BSC 0.65BSC
L
0.02 0.04 0.04
0.63 0.90 1.03
R
0.00 - -
0.09 - -
θ°
0° 4° 8°
0° 4° 8°
