S2/S2BW
Digital Color Doppler Ultrasound System

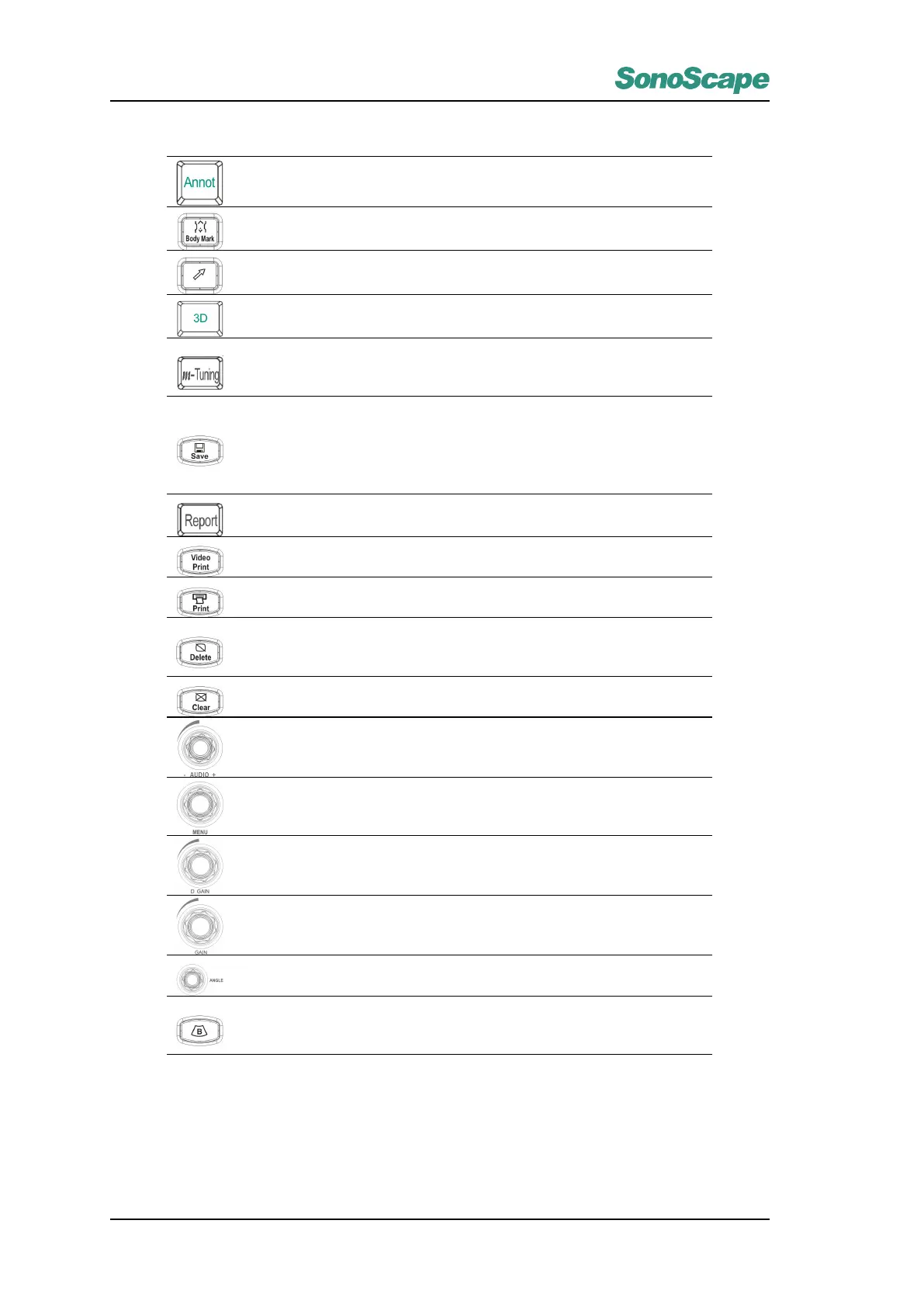

Key
Description of the Usage
Annotation
insert texts or predefined annotation items.
Bodymark
insert Bodymarks.
Arrow
insert an arrow symbol on the ultrasound image
3D/4D
start volume mode (3D or real time 4D mode).
m-Tuning
press this key during scanning to let the system automatically adjust various
parameters to obtain high quality image.
SAVE
press this key during real time scan to save the current application mode as
a new customized application mode.
press this key while the ultrasound image is frozen to save a single frame or
a cine clip.
REPORT
write report for current diagnosis.
VideoPrint
Press to print the screen using a video printer.
PRINT
trigger the network printers.
DELETE
remove the most recently inserted annotations or Bodymarks.
or redefine the route of trace.
CLEAR
clear the all measurements and calculations.
AUDIO
adjust the Doppler sound volume.
MENU
open the context menu.
D GAIN
rotate this key to adjust the Doppler gain.
GAIN
rotate this key to adjust the 2D gain.
ANGLE
Adjust the angle degree.
B Mode
press this key during the real time scan to start B mode imaging and remove
additional modes.
continued on next page . . .
P/N: 4710.00149A01
3-6
