2.1.8 Sliding Lens Cover

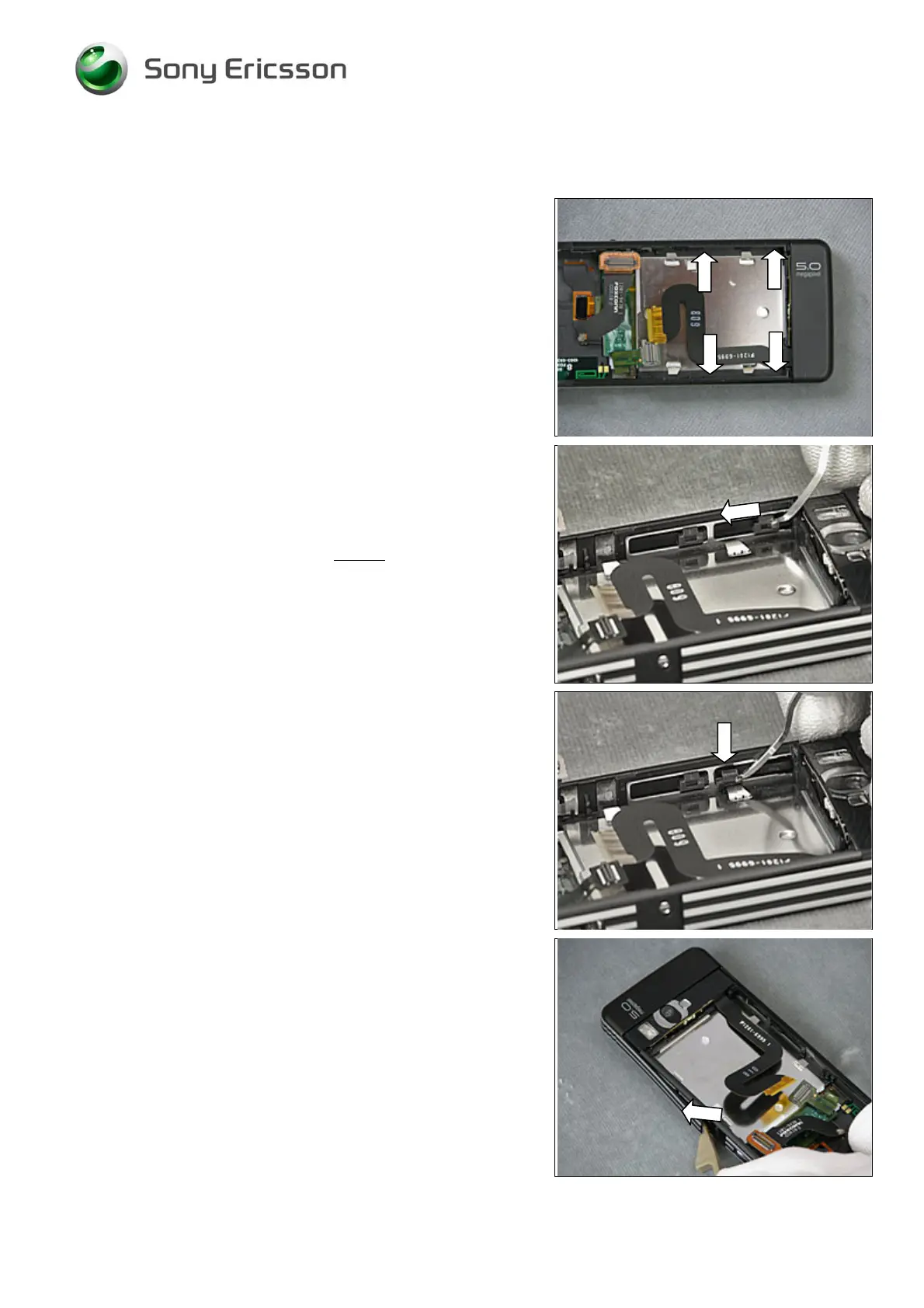

There are four Plastic Slider Snap as indicated by the
arrows in the picture.
Use the Dentist Hook and push all four Plastic Slider Snap
down to unsnap them.
Use the Dentist Hook to release them and to have them
removed.
T
HE FOUR PLASTIC SLIDER SNAP MUST BE SCRAPPED,
CANNOT BE REUSED!
Use the Front Opening Tool to unsnap the Sliding Lens
Cover on this side,
