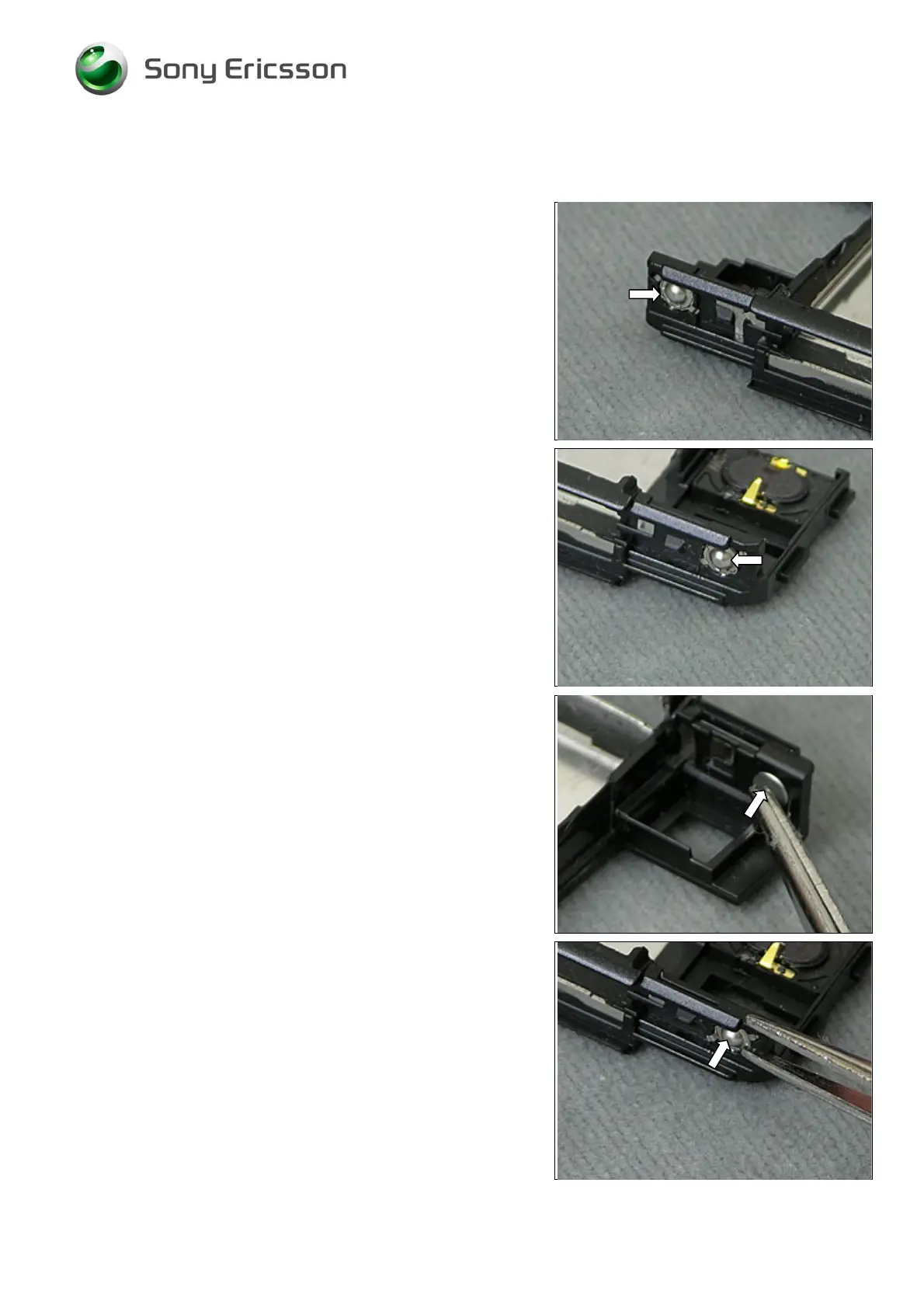

3.26 MComp Spring Metal pogo spring
REMOVAL
Follow the 2.1.1 – 2.1.6 & 2.1.8 - 2.1.9 Disassembly
instructions!
There are two MComp Spring Metal pogo spring at the top
of the Frame Assy, located here,
and here.
Remove the MComp Spring Metal pogo spring by pressing
with the tweezers from the inside of the Frame Assy.
INSTALLATION
Insert new MComp Spring Metal pogo spring from the
outside of the Frame Assy and push with the tweezers as
far as it goes.
Follow the 4.1.4 – 4.1.5 & 4.1.7 – 4.1.12 Reassembly
instructions!
