3.17 Carrier Top Front Inner Panel Assy
REMOVAL
Follow the 2.1.1 – 2.1.6 & 2.1.8 - 2.1.9 Disassembly
instructions!

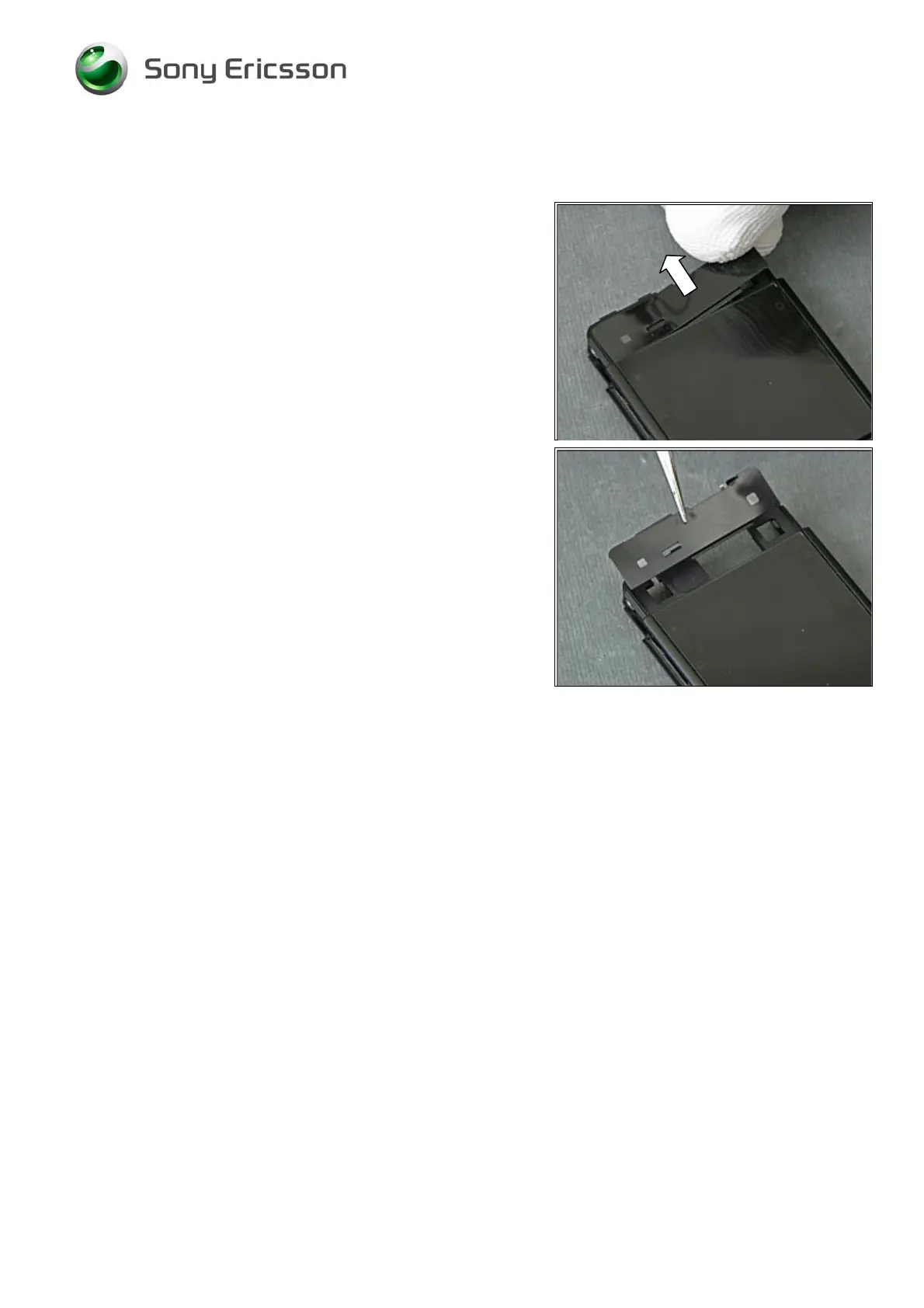

Release the Carrier Top Front Inner Panel Assy from the
Frame Assy at one of the top corners using your fingers or
the Dentist Hook and then carefully pull to have the panel
removed.
INSTALLATION
Position the new Carrier Top Front Inner Panel Assy so that
it fits perfectly in the cavity of the Frame Assy and then
press with your fingers to have it securely attached.
Follow the 4.1.4 – 4.1.5 & 4.1.7 - 4.1.12 Reassembly
instructions!
