2.1.12 Keyboard FPC Assembly

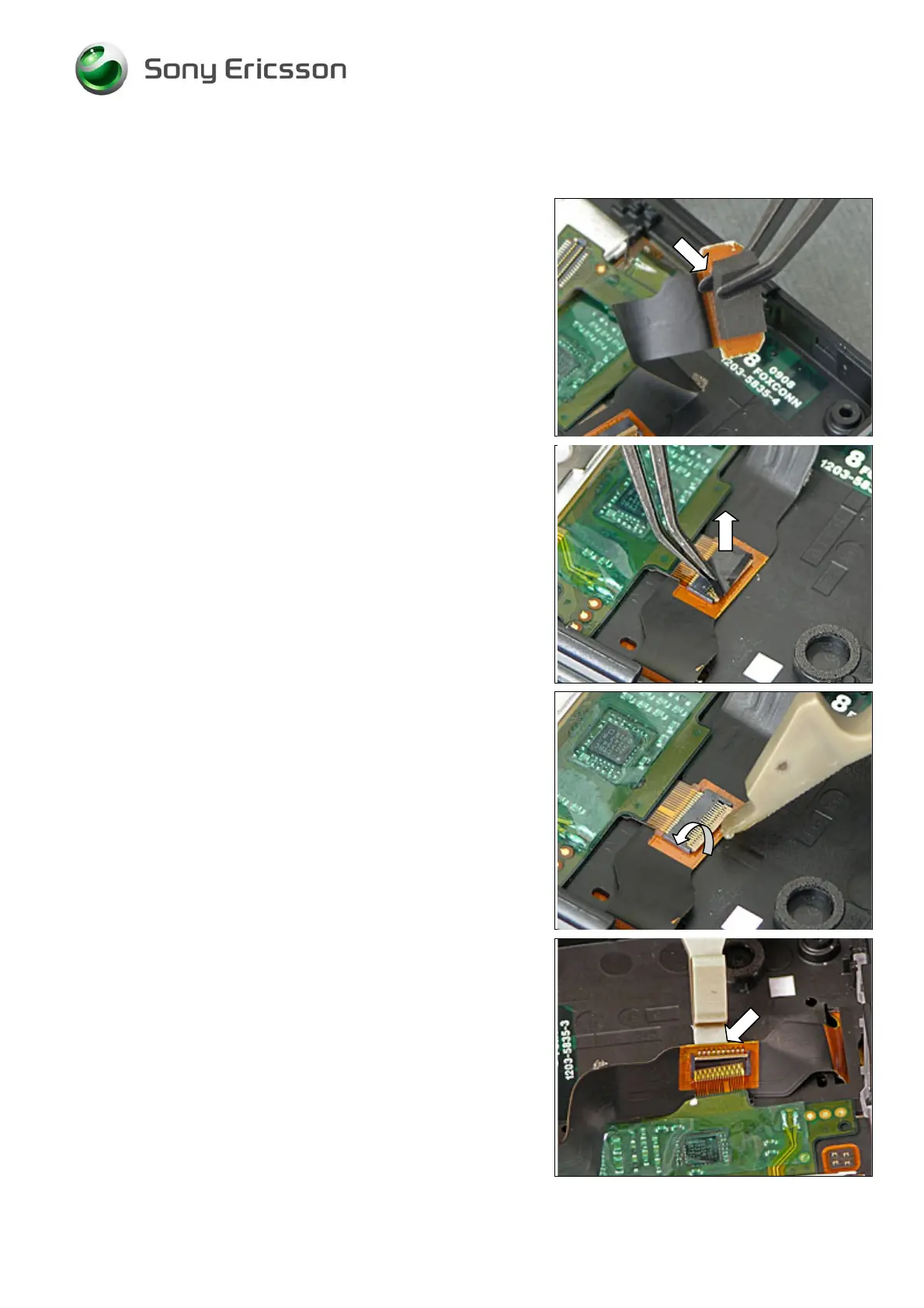

Use an ESD Tweezer to separate the Gasket for Keyboard
BtB from the Keyboard FPC Assembly.
THE GASKET FOR KEYBOARD BTB MUST BE SCRAPPED,
CANNOT BE REUSED!
Use the ESD Tweezers to remove the Foil Adhesive Double
Side 0.0 mm Adhesive Keyboard Flex.
T
HE FOIL ADHESIVE DOUBLE SIDE 0.0 MM ADHESIVE
KEYBOARD FLEX MUST BE SCRAPPED, CANNOT BE REUSED!
Use the Front Opening Tool, or the ESD Tweezers, to
unlock the ZIF connector.
Use a Front Opening Tool, or the ESD Tweezers, to release
the Keyboard FPC Assembly from the Frame Assy.
