3.22 Shield Can Lid BB 2
REMOVAL
Follow the 2.1.1 – 2.1.6 Disassembly instructions!

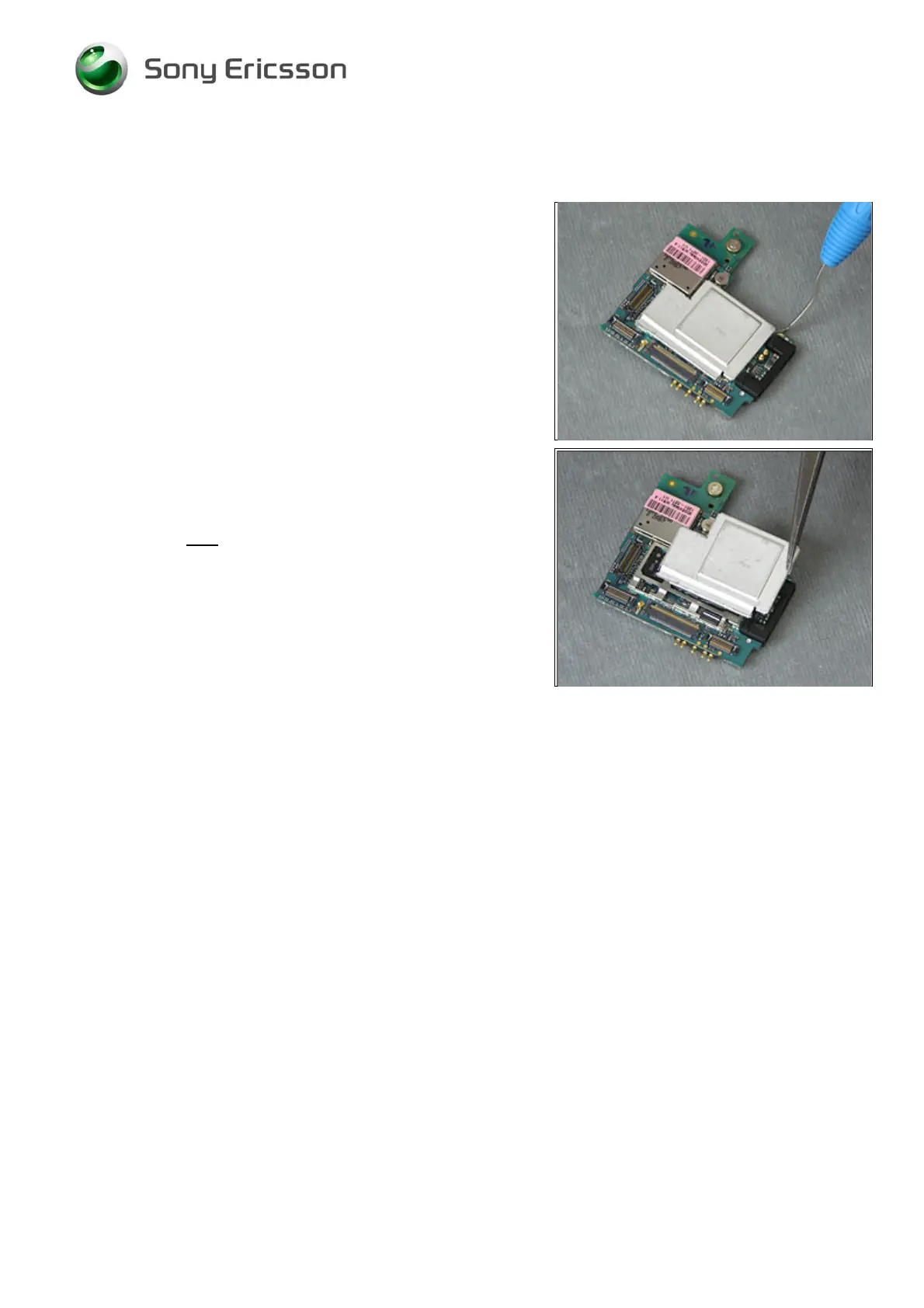

Use the Dentist Hook to release the Shield Can Lid BB 2
from the Shield Can Fence and then remove it.
T
HE SHIELD CAN LID BB 2 MUST BE SCRAPPED, CANNOT BE
REUSED
!
INSTALLATION
Position the new Shield Can Lid BB 2 over the Shield Can
Fence and press gently with your fingers until it is properly
attached on all sides.
Follow the 4.1.7 – 4.1.12 Reassembly instructions!
