Sony Ericsson C902 - Ear Speaker

Working Instruction Repair Instruction Mechanical/,
Mechanical
1212-7760 State: Preliminary 8.1
Company Internal
© Sony Ericsson Mobile Communications AB
32(66)
3.18 Ear Speaker
REMOVAL
Follow the 2.1.1 – 2.1.6 & 2.1.8 - 2.1.9 Disassembly
instructions!

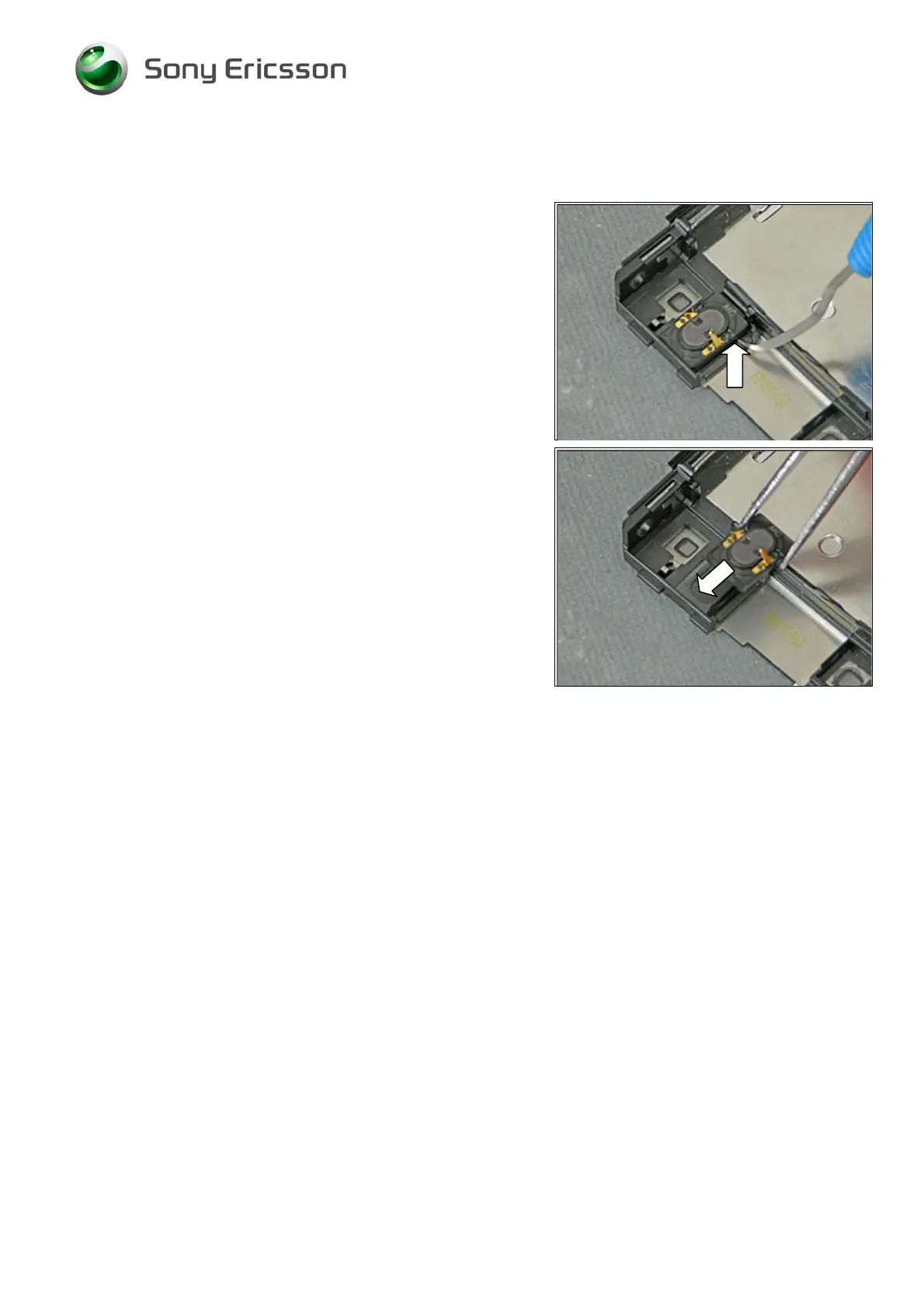

Insert the Dentist Hook underneath the Ear Speaker to
loosen it from the Frame Assy and remove the Ear Speaker
using the tweezers.
INSTALLATION
Use the tweezers to position the new Ear Speaker in the
Frame Assy and then press with the tweezers, without
touching the contacts, to have it securely attached.
Follow the 4.1.4 – 4.1.5 & 4.1.7 - 4.1.12 Reassembly
instructions!
