4.1.7 PBA incl. Card Reader Assembly

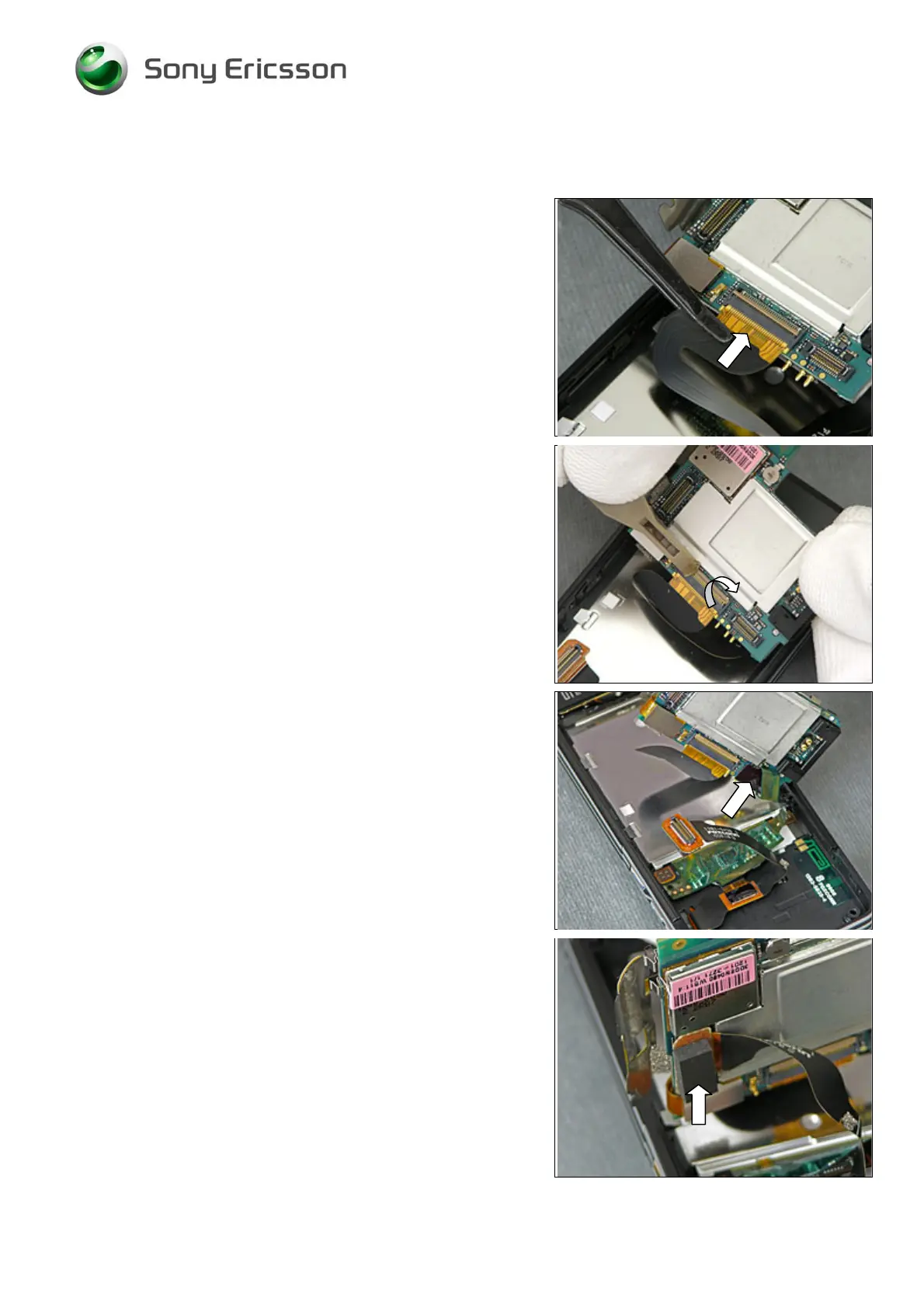

Turn the PBA upside/down and insert the FPC into the ZIF
connector using the Flex Film Assembly Tool as shown in
picture.
Lock the ZIF connector.
Raise the PBA and connect the LCD FPC BtB connector by
carefully pressing with your finger,
and then connect the Keyboard FPC Assembly BtB
connector to the PBA in the same way.
