Sony CA-550 - Connection Connector; Removal of CCZ Connector

1-5 (E)
CA-550
CA-550P
1-2-2. Connection Connector
Connection made with the connector panels during instal-
lation or service, should be made with the connectors/
complete cable assemblies specified in the following list,
or equivalent parts.
Connector Name
GENLOCK/
PROMPT(BNC)
RET OUT
RET CONT
(6P FEMALE)
REMOTE
(8P FEMALE)
INCOM
(5P FEMALE)
MIC IN
(3P FEMALE)
DC IN
(4P MALE)
DC OUT
(4P FEMALE)
VTR
(26P MALE)
Connection Connectors/Cables
1-560-069-11 Plug, BNC or
B-B Cable assembly
(cable length 1.5 m, option)
1-560-078-00 Plug, 6P Male or
HIROSE HR10-7PA-6P equivalent
1-766-848-11 Plug, 8P Male or
CCA cable assembly (option)
CCA-5-10 (10m)/ CCA-5-3 (3m)
1-508-370-11 XLR, 5P Male or
CANNON XLR-5-12C equivalent
1-508-084-00 XLR, 3P Male or
CANNON XLR-3-12C equivalent
1-508-362-00 XLR, 4P Female or
CANNON XLR-4-11C equivalent or
Cable assembly (supplied with AC-550)
1-551-577-00 Cable with XLR plugs
1-566-425-11 Plug, 4P Male or
HIROSE HR10A-7P-4P equivalent
1-564-184-00 Plug, 26P Female or
CCZ cable assembly (option)
CCZ-2 (2m)/CCZ-10 (10m)

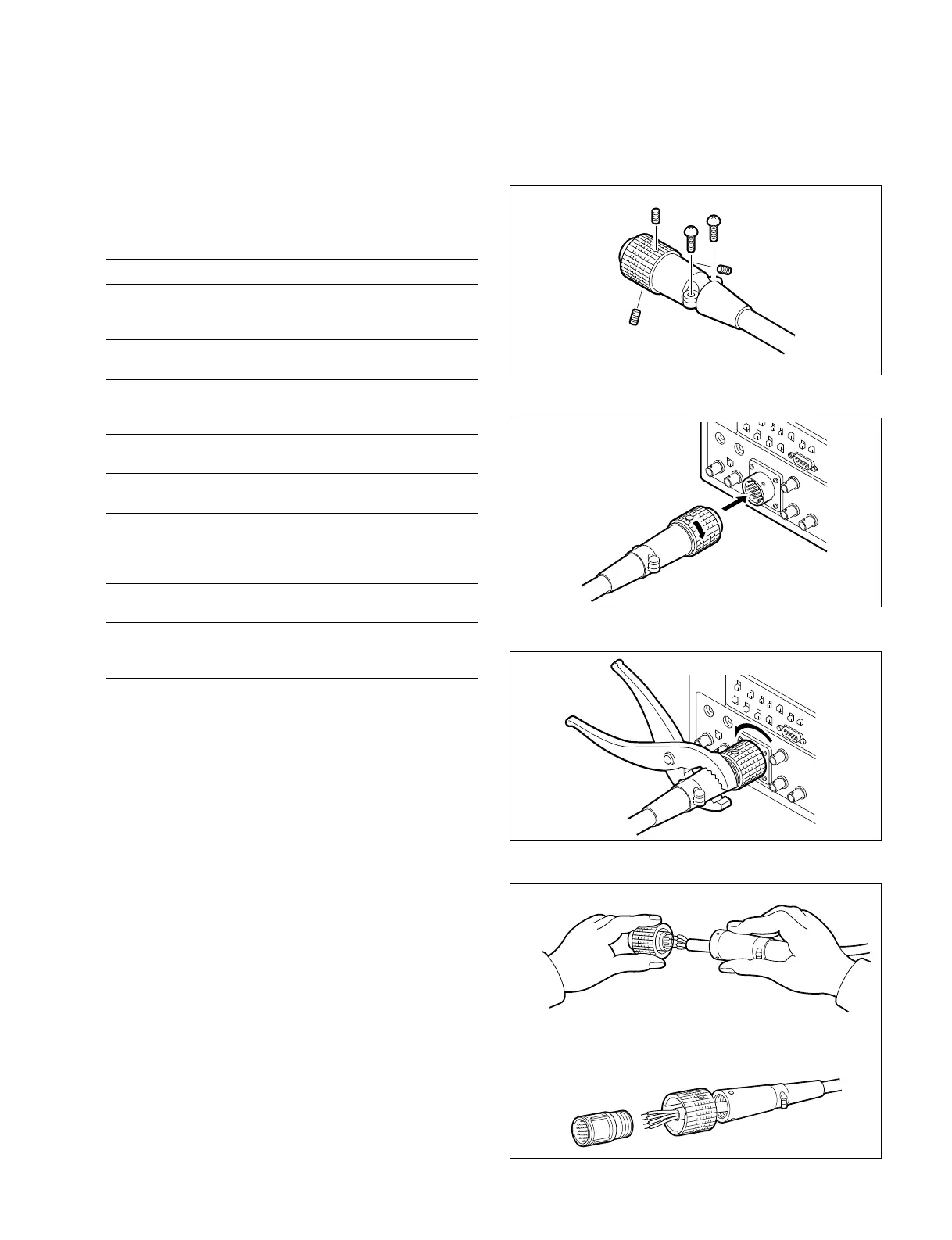

1-2-3. Removal of CCZ Connector
1. Remove the two screws and three setscrews.
2. Connect the plug to the VTR or camera.
3. Loosen the plug counterclockwise by pliers.
4. Disassemble as illustrated and unsolder.
↓
1-2. Connectors and Cables
