Sony CA-550 - Triax and Function Switches;Controls

4-4
CA-550
CA-550P
No. Part No. SP Description
201 ! A-8272-609-A o TRIAX ASSY (J)
202
! A-8272-574-A o TRIAX ASSY (UC)
203
! A-8272-612-A o TRIAX ASSY (CE)
204
! 1-533-191-11 s HOLDER, FUSE
205
! 1-561-844-00 s CONNECTOR, COAXIAL”TRIAX” (CE)
206
! 1-565-797-12 s CONNECTOR,DOUBLE
COAXIAL”TRIAX”(J)
207
! 1-565-801-11 s CONNECTOR,DOUBLE
COAXIAL”TRIAX”(UC)
208
! 1-576-231-41 s FUSE (H.B.C.) 250A T4AH
209 1-657-762-21 o PRINTED CIRCUIT BOARD, SW-750
210 1-657-763-21 o PRINTED CIRCUIT BOARD, SW-784
211 1-762-548-11 s SWITCH, TOGGLE
No. Part No. SP Description
212 3-171-996-03 s KNOB (R), VR
213 3-178-098-11 s SHEET (VR), INSULATING
214 3-185-891-01 o CONNECTOR, ROTARY SHAFT
215 3-185-892-11 o NUT
216 3-185-896-01 o WASHER, CONDUCTIVE
217 3-185-949-11 o BOX, TRIAX
218 3-312-823-00 s PACKING, KNOB
219 3-676-244-11 s COVER, SW
220 3-692-170-02 o PLATE,CONNECTOR(INCOM)
221 3-692-172-02 o PLATE,TRIAX
222 3-692-177-02 o COVER,SWITCH PS
223 3-692-178-11 o PLATE,CONNECTOR(PS)
224 7-623-710-97 s WASHER 18, WABE TYPE

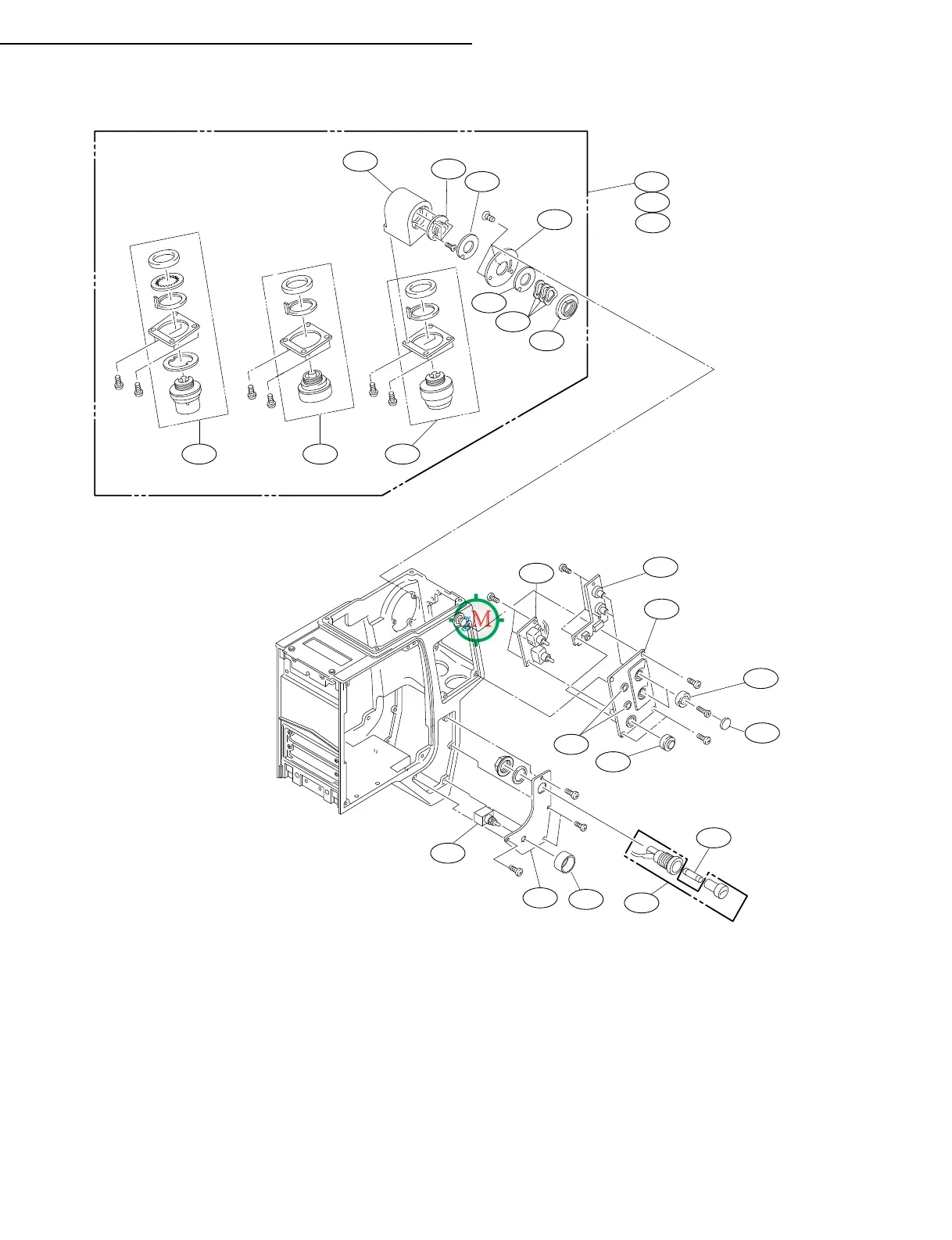

TRIAX AND FUNCTION SWITCHES/CONTROLS
201
202
203
221
214
224
217
B3 X 6
B3
X 6
K3
X 6
B3
X 6
BTP2.6
X 6
BTP2.6
X 6
Precision
P2.6
X 5
Precision
P2.6
X 5
Precision
P2.6
X 5
Precision
P2.6
X 5
Precision
P2.6
X 8
Precision
P1.7
X 4
210
209
220
212
213
208
222
204
223
211
218
216
207
205 206
215
216
K3 X 6
219
