Sony CA-550 - Rear Panel Block

4-6
CA-550
CA-550P
No. Part No. SP Description
401 1-507-251-99 s JACK “EARPHONE”
402 1-509-176-31 s CONNECTOR, 3P MALE “MIC”(J)
403 1-509-184-31 s CONNECTOR, 3P FEMALE “MIC”
(UC,CE)
404 1-562-244-00 o CONNECTOR, 26P MALE “VTR”
405 1-563-159-11 s CONNECTOR, 5P FEMALE “INCOM”
406 1-563-833-11 s CONNECTOR, 6P REMALE “RET CONT”
407 1-657-764-21 o PRINTED CIRCUIT BOARD, CN-1164
408 1-955-074-11 o HARNESS, SUB (CCZ)
409 3-166-346-01 s CAP (CCZ), DROP PROTECTION
410 3-186-499-01 o CONNECTOR, CAP
No. Part No. SP Description
411 3-437-229-01 s INSULATOR (B), JACK
412 3-685-115-01 o CAP, 6P CONNECTOR
413 3-692-142-11 o PLATE,CA
414 3-692-159-11 o PLATE,CONNECTOR(MIC)
415 3-692-180-02 o PLATE EARPHONE
416 3-694-181-01 s SCREW, PRECISION P2.6 TYPE1
417 3-741-726-01 o CAP (2), XLR (FOR MALE CONNECTOR)
418 3-741-727-01 o CAP (1), XLR (FOR FEMALE
CONNECTOR)
419 3-849-405-00 s COVER, EARPHONE JACK

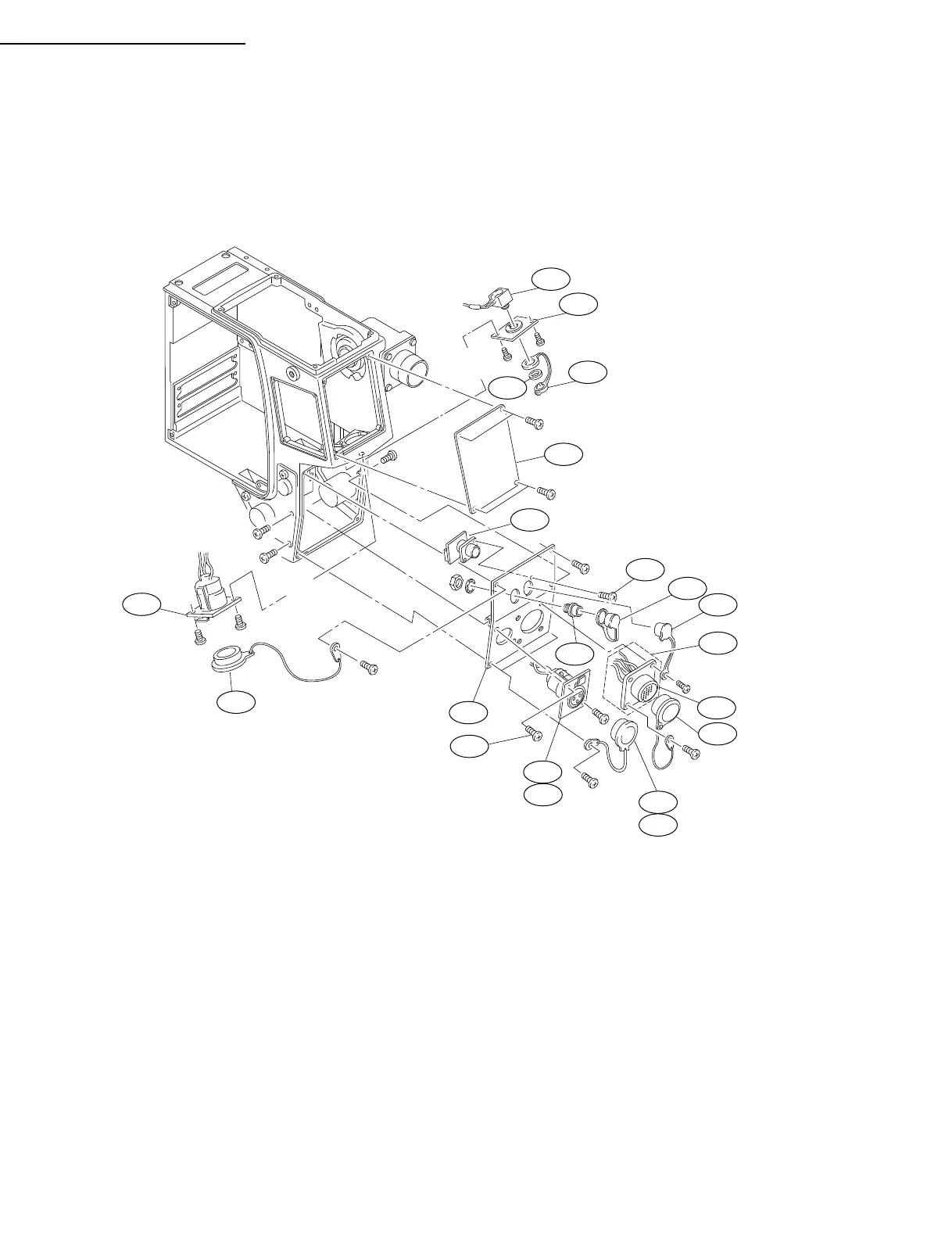

REAR PANEL BLOCK
