Sony CA-550 - Left Side Panels and Boards

4-3
CA-550
CA-550P

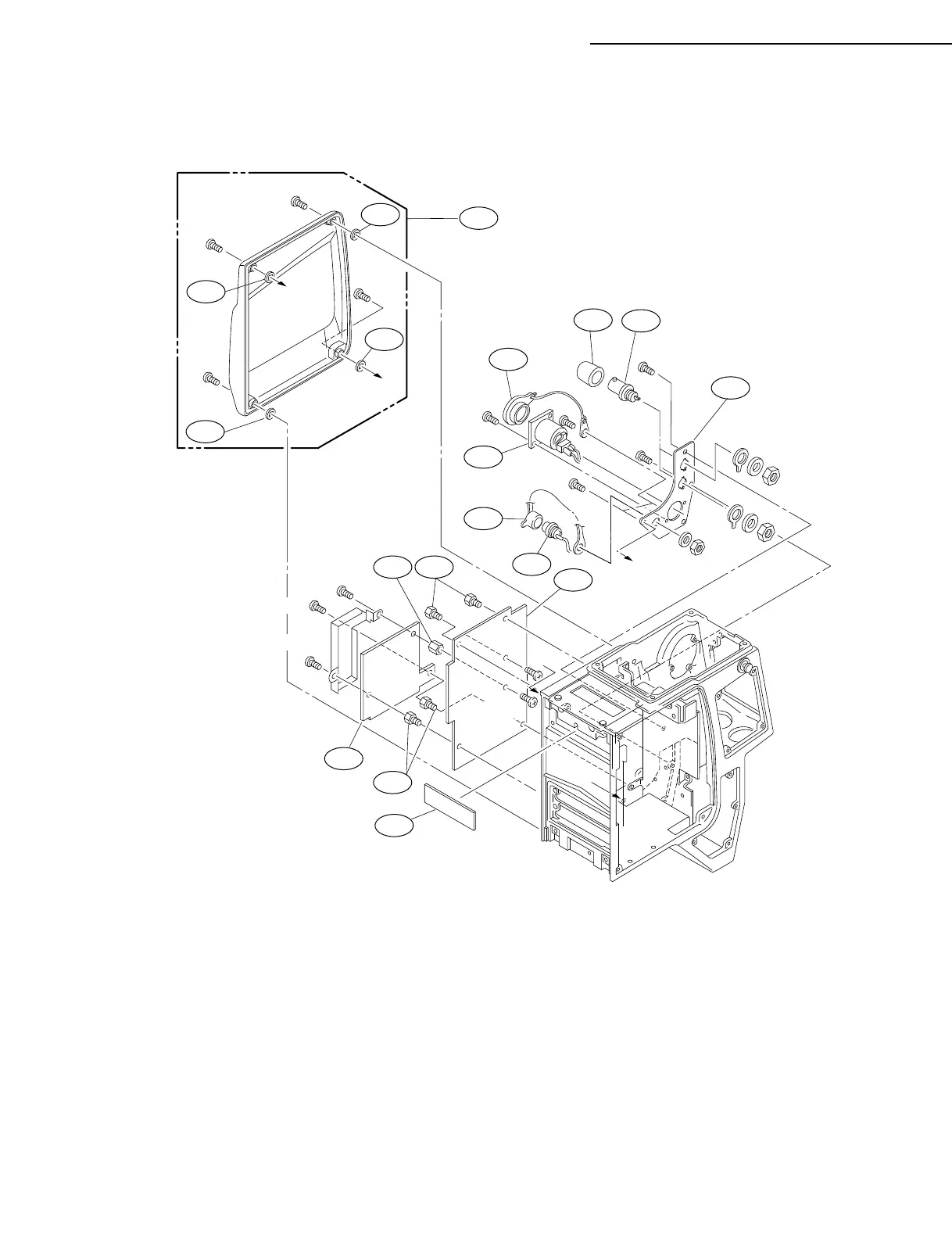

LEFT SIDE PANELS AND BOARDS
No. Part No. SP Description
101 A-8272-593-A o MOUNTED CIRCUIT BOARD, MB-605
102 A-8272-580-A o MOUNTED CIRCUIT BOARD, DM-98
103 X-3678-483-1 o PANEL ASSY,LEFT
104 1-561-781-11 s CONNECTOR, BNC
“PROMPT/GENLOCK””RET OUT”
105 1-564-603-11 s CONNECTOR(W/ DC SW)4P MALE
“DC IN”
106 1-565-072-11 s CONNECTOR, 4P FEMALE “DC OUT”
107 2-280-622-01 o SUPPORT (M3), HEXAGON
No. Part No. SP Description
108 3-685-115-01 s CAP (6P), DROP PROTECTION
109 3-687-116-01 o WASHER (4), STOPPER
110 3-692-171-11 o PLATE,CONNECTOR(BNC)
111 3-692-187-02 o PLATE,PROTECTION
112 3-717-823-01 s COVER, BNC
113 3-741-726-01 o CAP (2), XLR
114 4-924-260-01 o BOSS (D)
Precision
P2.6 X 5
109
103
B4 X 12
Precision
P2.6
X 5
B3 X 4
B4
X 12
B4 X 12
B4
X 12
109
112
109
113
109
105
104
110
108
111
114
101
102
107
*2
*2
*1
*1
Precision
P2.6
X 5
B3 X 4
Precision
P2.6
X 8
B3 X 4
B3
X 4
106
114
