Sony CA-550 - Supplied Accessories; Connectors and Cables

1-1 (E)
CA-550
CA-550P
Section 1
Installation
1-1. Supplied Accessories
Accessory Sony P/N Qt’y
Shoulder Belt A-6772-374-A 1
Battery Spacer (for DC-300) 3-694-183-01 1
Cable Holders 3-692-186-01 2
Cable Holder Fixing Screws 7-682-547-09 4
COAX connector* 1-955-388-11 1
Operation Manual 1
Maintenance Manual 1
* Refer to Section 1-3 for installation procedures of
COAX connector.
1-2. Connectors and Cables
1-2-1. Connector Input/Output Signals
• GENLOCK IN*
1
/PROMPT OUT*
2
BNC 75 Ω 1.0 Vp-p
*
1
: In connection with VTR
*
2
: In connection with CCU
• TRIAX
King type (for CA-550)
Fischer type (for CA-550P)
• RET OUT
BNC 75 Ω 1.0 Vp-p
* Refer to Section 1-4. “Function of Internal Switches,
DM-98 Board” for details.

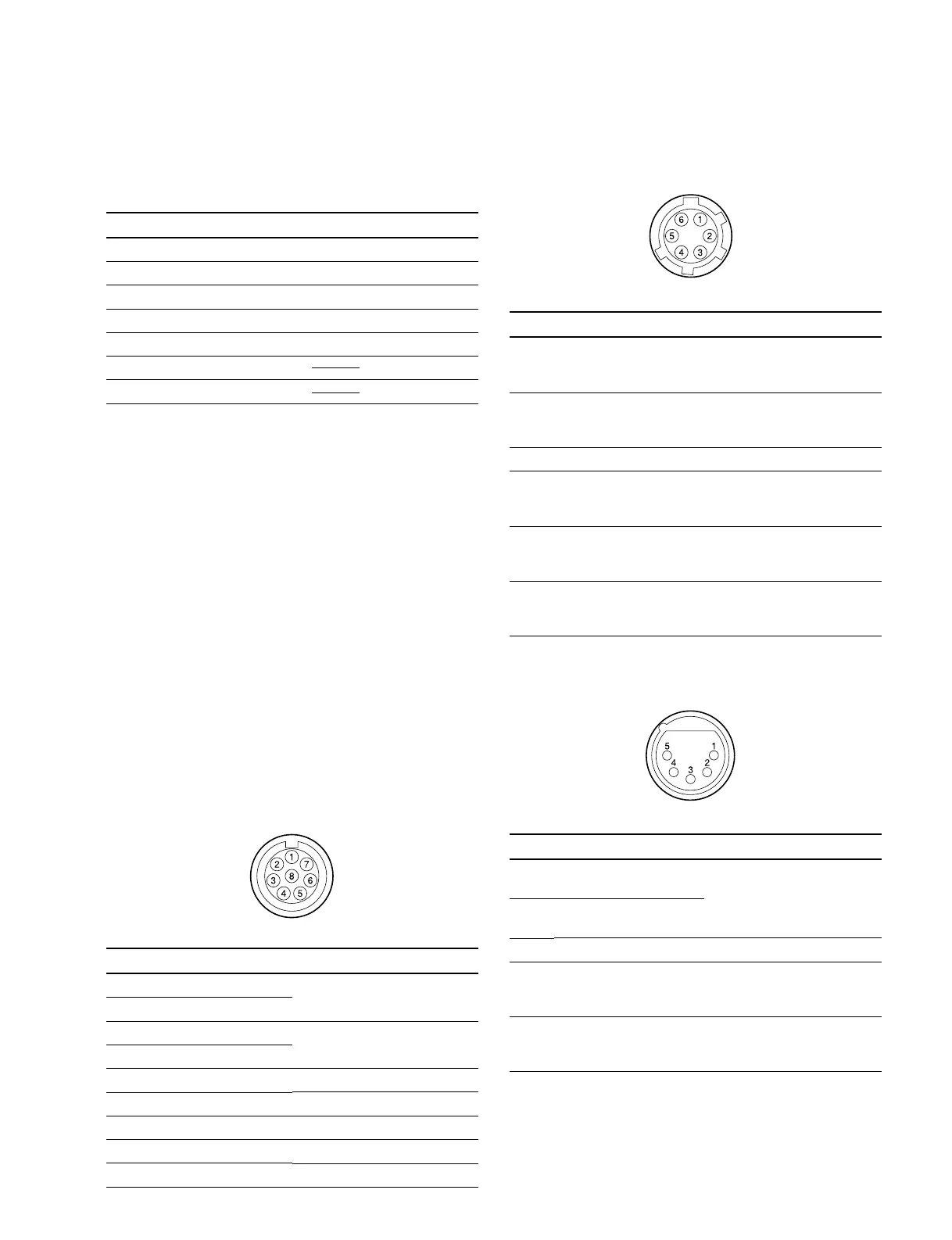

REMOTE (8P FEMALE)
(EXTERNAL VIEW)
No.
1
2
3
4
5
6
7
8
SIGNAL
TX (+)
TX (–)
RX (+)
RX (–)
TX GND
POWER (+) OUT
POWER (–) OUT
NC
CHASSIS GND
SPECIFICATIONS
BVP SERIAL DATA
CCU/MSU/RCP/CNU/VCS
SERIAL DATA
GND for TX
+26 V, 200 mA (MAX)
GND for +26 V
No connection
CHASSIS GND
RET CONT (6P FEMALE)
(EXTERNAL VIEW)
No. SIGNAL SPECIFICATIONS
1 INCOM 1 Zi ≥ 10 kΩ
MIC ON/OFF IN ON:GND
OFF:OPEN
2 INCOM 2 Zi ≥ 10 kΩ
MIC ON/OFF IN ON:GND
OFF:OPEN
3 GND
4 RET 3 ON/OFF IN Zi ≥ 10 kΩ
ON:GND
OFF:OPEN
5 RET 1 ON/OFF IN Zi ≥ 10 kΩ
ON:GND
OFF:OPEN
6 RET 2 ON/OFF IN Zi ≥ 10 kΩ
ON:GND
OFF:OPEN
INCOM (5P FEMALE)
(EXTERNAL VIEW)
)
No.
1
2
3
4
5
SIGNAL
INCOM MIC
IN (Y)
INCOM MIC
IN (X)
GND (PGM)
INCOM
RECEIVE OUT
PGM 1/2 OUT
SPECIFICATIONS
–20 dBu
(CARBON MIC)
–60 dBu
(DYNAMIC MIC)
–20 dBu
(with INCOM level control
set to mechanical center)
–20 dBu
(with PGM level control set
to mechanical center)
(0 dBu=0.775 Vrms)
