Sony CA-550 User Manual

1-7 (E)
CA-550
CA-550P

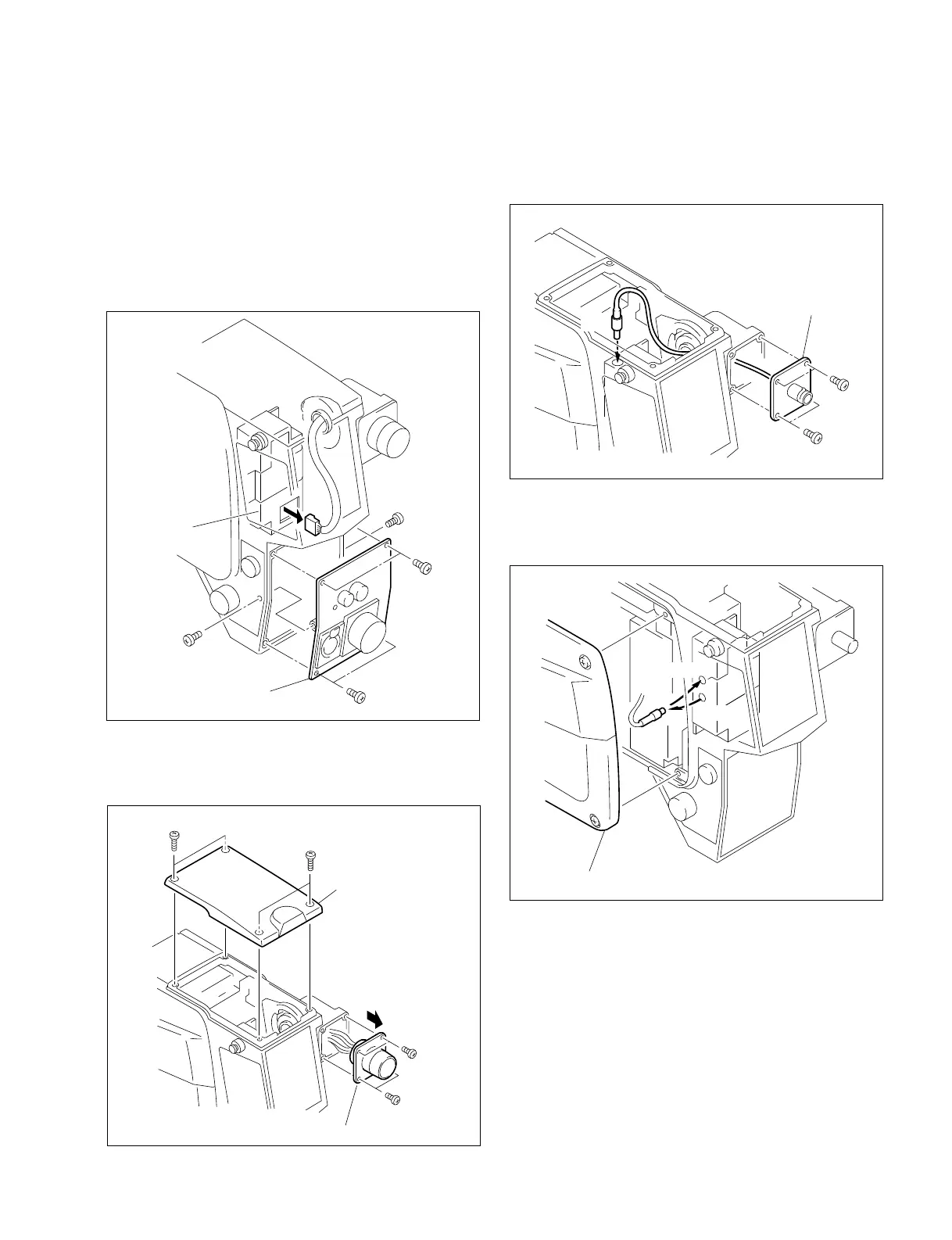

1-3. Installation of COAX Connector
1-3. Installaton of COAX Connector
To connect between the CA-550/550P and CCU-700/700P
with a coaxial cable, instead of a triaxial cable, the TRIAX
connector of the CA-550/550P can replace the supplied
COAX connector. Proceed as follows.
1. Remove the six screws to remove the MIC connector
panel. Disconnect CN1 on the FL-180 board.
3. Install the COAX connector to the connector box with
the screws that were removed in Step 2. Connect the
cable to CN3 on the FL-180 board. Insert until it
clicks.
4. Remove the right side panel, referring to Section 2-1.
Unplug the cable from CN4 on the FL-180 board and
reconnect it to CN5. Insert until it clicks.
COAX connector
CN3
CN5
CN4
Right side panel
5. Reinstall the top and right side panels.
2. Remove the four screws and carefully pull out the
TRIAX connector. Remove the top panel, referring to
Section 2-1.
B3 X 6
B3
X 6
B3 X 6
B3 X 6
Top panel
TRIAX connector
FL-180
MIC connector
panel
CN1
Precision
P2.6
X 8
Precision
P2.6
X 5
Precision
P2.6
X 8
Precision
P2.6
X 5
