Sony DFS-900M - Adjusting 3 D DME Warp Effects

140
Customizing DME Effects
Chapter 5 Adjusting Wipes and Keys

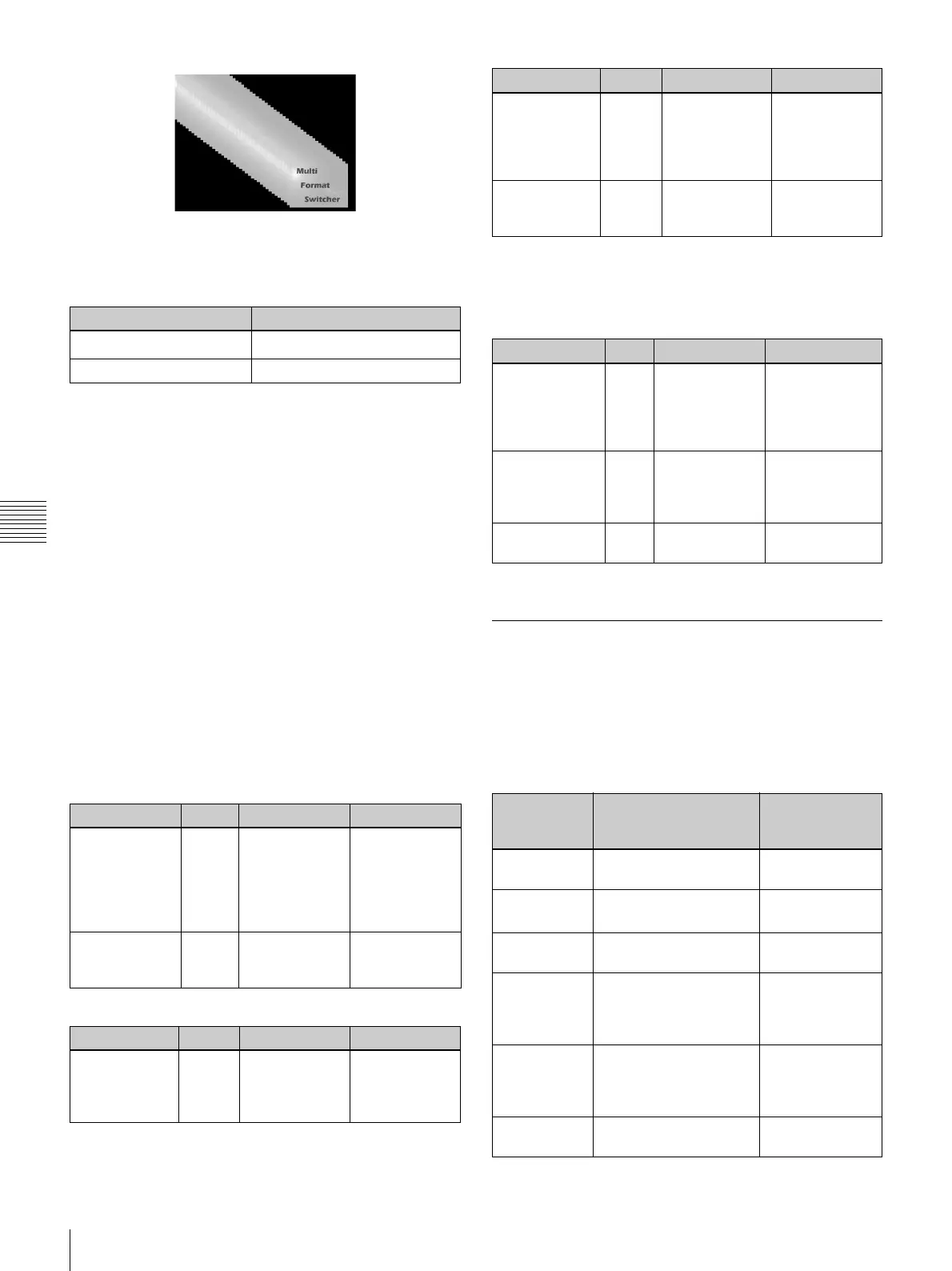

Trail effect example
Make trail and chroma control settings in the following sub
menus.
a) Shown only on the touch panel
To display the Sub Effects sub menus
Press the SHIFT button in the DME/SETUP block,
lighting it, and then press the SUB EFF button.
The most recently used sub menu appears in the display
panel.
To switch between sub menus, press the h and H
buttons in the numeric keypad.
Trail sub menu parameters
Adjust the following parameters to select whether to add a
trail effect, and to adjust the length and color of the trail, if
added.
The Trail sub menu has two pages. To switch between
pages, press the h and H buttons in the numeric
keypad.
(xxx: “M/E” appears if you are setting up a transition, and
“KEYER” appears if you are setting up a key.)
xxx Trail 1 (1)
xxx Trail 2 (2)
Chroma Control sub menu parameters
Adjust the following parameters to change the colors of
images (Chroma Control).
a) The video becomes black and white if you select Sepia and set Sat to 0.0.
Adjusting 3D DME Warp Effects
You can adjust the parameters of the Warp sub menus to
apply 3D DME warp effects to images. These effects allow
you to warp, bend, and divide images in many different
ways.
Use the sub menus of the Warp sub menu to do the
following.
Sub menu Operation
Tra il
a)
Make trail effect settings.
Chroma Control Change the color type.
Operation Knob Parameter Settings
Selects
whether to add
a trail effect.
F1 Typ (Trail Type) Off: Do not add
Decay: Add
Star:
Afterimage
disappearing
as stardust
Adjusts the
length of the
afterimages.
F2 Len (Length) 1 to 6
Operation Knob Parameter Settings
Adjusts the
luminance of
the
afterimages.
F2 Lum
(Luminance)
0.0 to 108.6
Adjusts the
saturation
(color density)
of the
afterimages
F3 Sat (Saturation) 0.0 to 100
Adjusts the hue
of the
afterimages.
F4 Hue 0.0 to 359.5
Operation Knob Parameter Settings
Select the
chroma control
type.
F1 T (Type) Through: Do
not change
the colors
Sepia: Sepia
Nega: Negative
Adjust the
saturation (color
density) of the
image color.
F3
Sat
a)
(Saturation)
0.0 to 100
Adjust the
image hue.
F4 Hue 0.0 to 359.5
Sub menu Operation Operation target
pattern
numbers
Ripple
a)
Adjust the parameters of
the Ripple effect.
100 to 114
xxx Swirl
b)
(Swirl)
Adjust the parameters of
the Swirl effect.
115, 116
Mosaic
a)
Adjust the parameters of
the Mosaic effect.
117, 118
xxx Slats
b)
(Slats)
Adjust the parameters of
the Slats effect (which
divides the video into
separate strips).
119 to 124
Lens
a)
Adjust the parameters of
the Lens effect (which
shows the video as if
seen through a lens).
125 to 184
Page Turn
a)
Adjust the parameters of
the Page Turn effect.
185 to 223
Operation Knob Parameter Settings
