2-8. LS-067 BOARD, LASER UNIT
When soldering the laser unit on the LS-067 board,
observe the following things.
(Refer to Service Note (page 1-2)).
Observe the following conditions of temperature
and time of soldering.
Temperature of soldering iron : 350
° C
Time of contacting the soldering : 3 seconds
iron with the solder
The laser diode may suffer electrostatic breakdown
because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the
human body.
During repair, pay attention to electrostatic breakdown
and also use the procedure in the printed matter which
is included in the repair parts.
The flexible board is easily damaged and should be
handled with care.

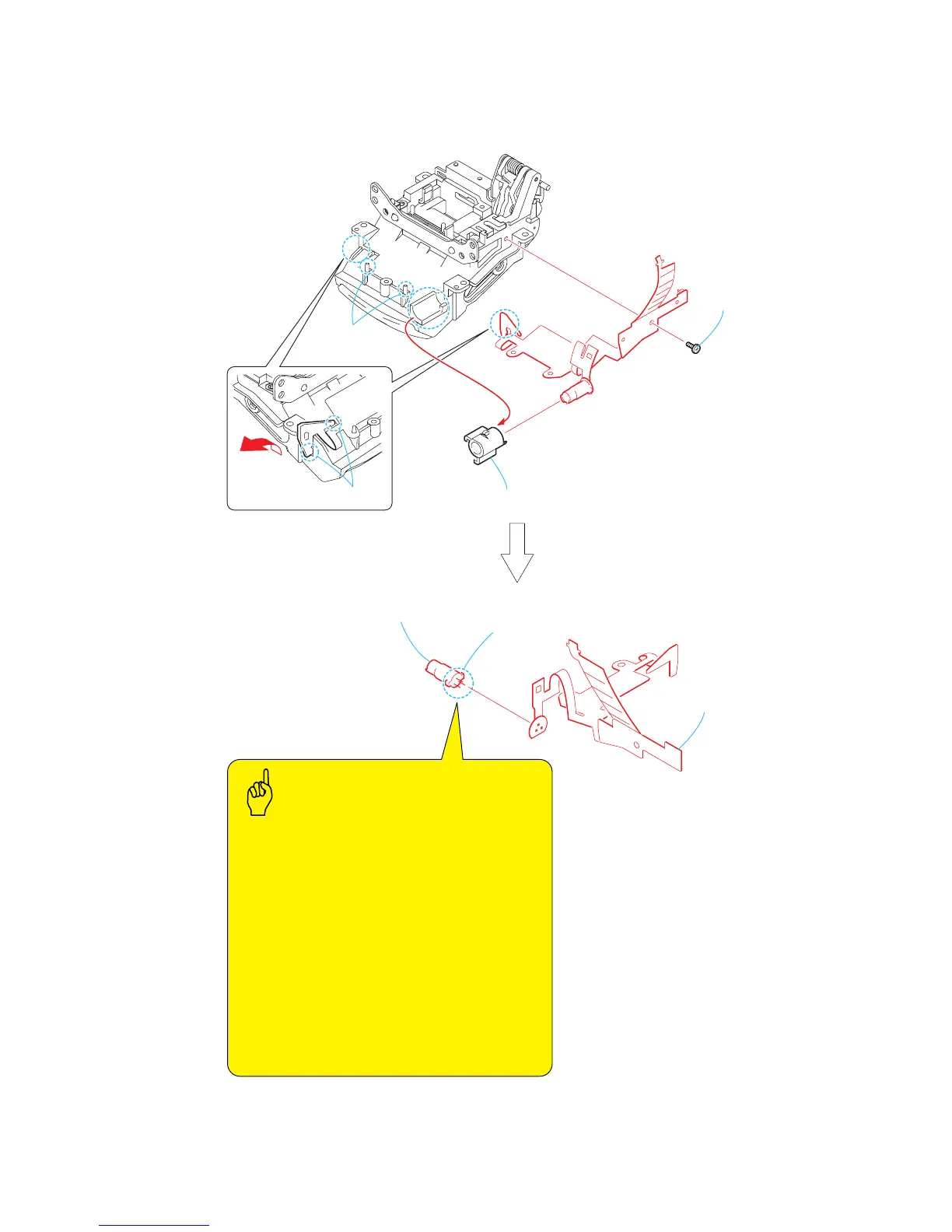

1 Tapping screw
(M1.7
× 4)
4 ST laser holder
3 Two grooves
7 LS-067 board
2 Two dowels
Caution
5 Remove the
three solderings
6 Laser unit (D001)
