6-17
DSC-F828
7. Color Shade Check
7-1. Installing the “F828 C1 MATRIX ADJ”
Install the adjustment software “F828 C1 MATRIX ADJ” in the
PC.
System requirements of the PC:
OS : Windows98/98SE/Me/2000/XP
RAM : Recommend 256MB or higher
USB : USB2.0 or USB1.1 (USB2.0 is recommended. Two USB
connectors are required.)
Installing the “F828 C1 MATRIX ADJ”:
1) Extract “828matrix.zip” file and obtain “Setup.exe” file.
2) Start up the “Setup.exe” and install the “F828 C1 MATRIX
ADJ”.
Note1: Contact our service headquarter of each area how to get the
“828matrix.zip” file.
Note2: For “F828 C1 MATRIX ADJ” adjustment software’s operating,
the following two conditions need to be satisfied.
• The application for adjustment (SEUS) is already installed in
the PC.
• The PC is equipped with the HASP key.
7-2. Color Shade Check
Compensate the color shade.
Mode STILL (P AUTO) ( P )
Subject Clear chart (PTB-1450)
(Standard picture frame)
About 6cm from the front of the lens
Adjustment Page 6F
Adjustment Address 06, 07
Note1: Check that there are no reflections on the clear chart.
Switch setting:
ZOOM.................................................................... WIDE end
Adjusting method:
1) Check that “1. Data Setting during Camera System
Adjustments” is performed.
2) Start the F828 C1 MATRIX ADJ on the PC.
3) Click [Connect] on the F828 C1 MATRIX Adjustment screen.
If the connection is normal, the F828 C1 MATRIX Adjustment
screen will be as shown in bellow, indicating the “connected”
state
4) Check that the picture frame is the standard picture frame.
5) Click [Color Shading Adjustment] on the F828 C1 MATRIX
Adjustment screen.

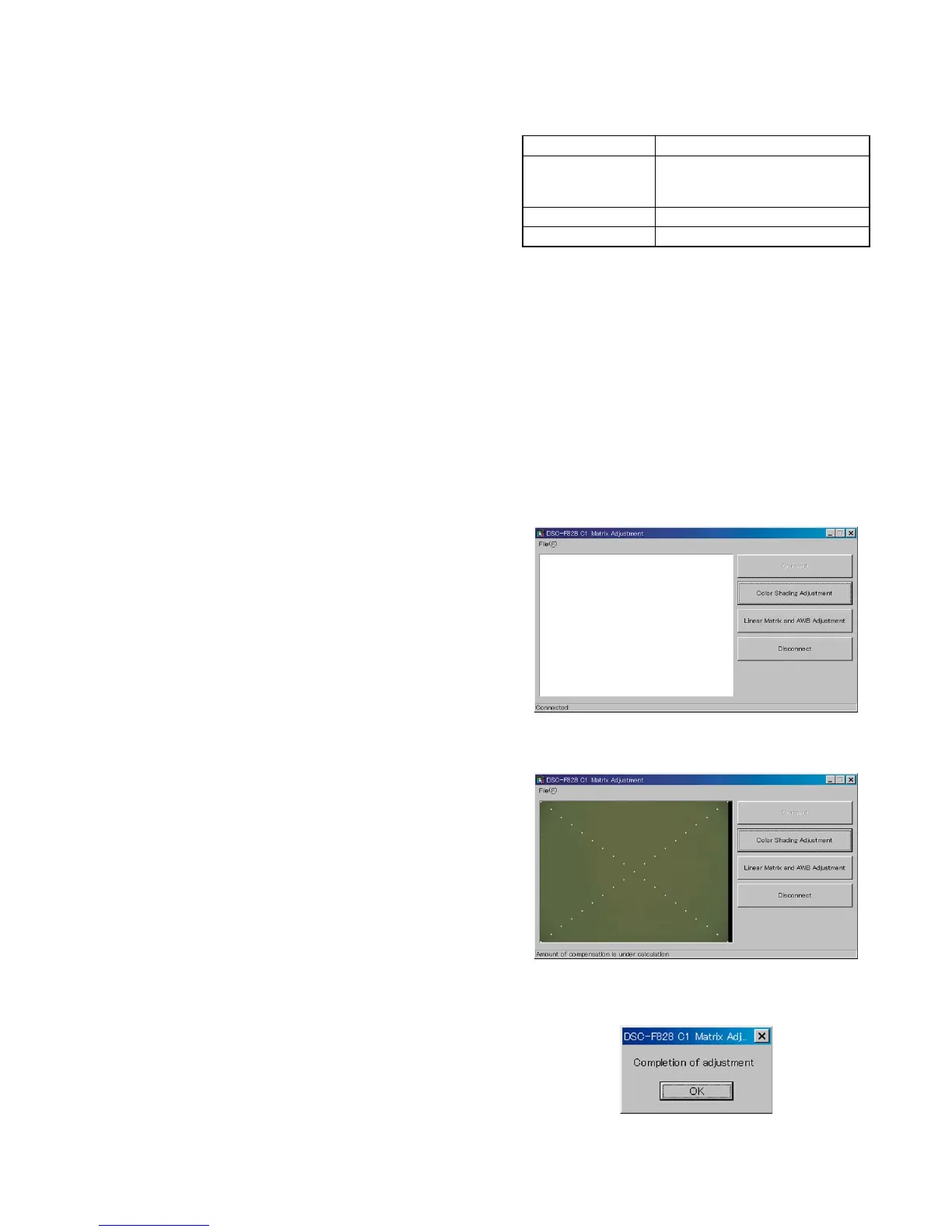

Fig. 6-1-16.
6) Color shading adjustment is performed automatically.
Fig. 6-1-17.
7) When the “Completion of adjustment” message is displayed.
Click the [OK] button.
Fig. 6-1-18.
8) If finish the camera system adjustments, release the data setting.
(See “1. Data Setting during Camera System Adjustments”.)
