1-1-2. Preparations
1) Connect the equipment for adjustments according to Fig. 6-1-4.
2) Set the MS/CF switch to MS (Memory stick).
3) Start up the application for adjustment (SEUS).
Note1: Setting the “Forced Power ON Mode (Forced STILL Mode)”
1) Select page: 00, address: 01, and set data: 01.
2) Select page: 2F, address: 23, and write data: 11.
3) Save the data.
4) Wait for 2 sec.
The above procedure will enable the power (STILL mode) to
be turned on with POWER switch (Control switch block (TOP))
disconnected. After completing adjustments, be sure to exit the
“Forced Power ON Mode”.
Note2: Setting the “Forced Power ON Mode (Forced PLAY Mode)”
1) Select page: 00, address: 01, and set data: 01.
2) Select page: 2F, address: 23, and write data: 12.
3) Save the data.
4) Wait for 2 sec.
The above procedure will enable the power (PALY mode) to be
turned on with POWER switch (Control switch block (TOP))
disconnected. After completing adjustments, be sure to exit the
“Forced Power ON Mode”.
Note3: Exiting the “Forced Power ON Mode”
1) Select page: 00, address: 01, and set data: 01.
2) Select page: 2F, address: 23, and write data: 80.
3) Save the data.
4) Wait for 2 sec.
5) Select page: 00, address: 01, and set data: 00.
1-1-3. Discharging of the flashlight power supply
The capacitor which is used as power supply of flashlight is charged
with 200V to 300V voltage. When disassembling the unit, discharge
this voltage in order to protect service engineers from electric shock.
Discharge procedure
1. Remove the power supply (AC power adaptor or battery).
2. Fabricate the discharging jig as shown in Fig. 6-1-3. locally by
yourself. Connect the discharging jig to the positive (+) and
negative (–) terminal of the flash voltage charge capacitor. Allow
ten seconds to discharge the voltage.

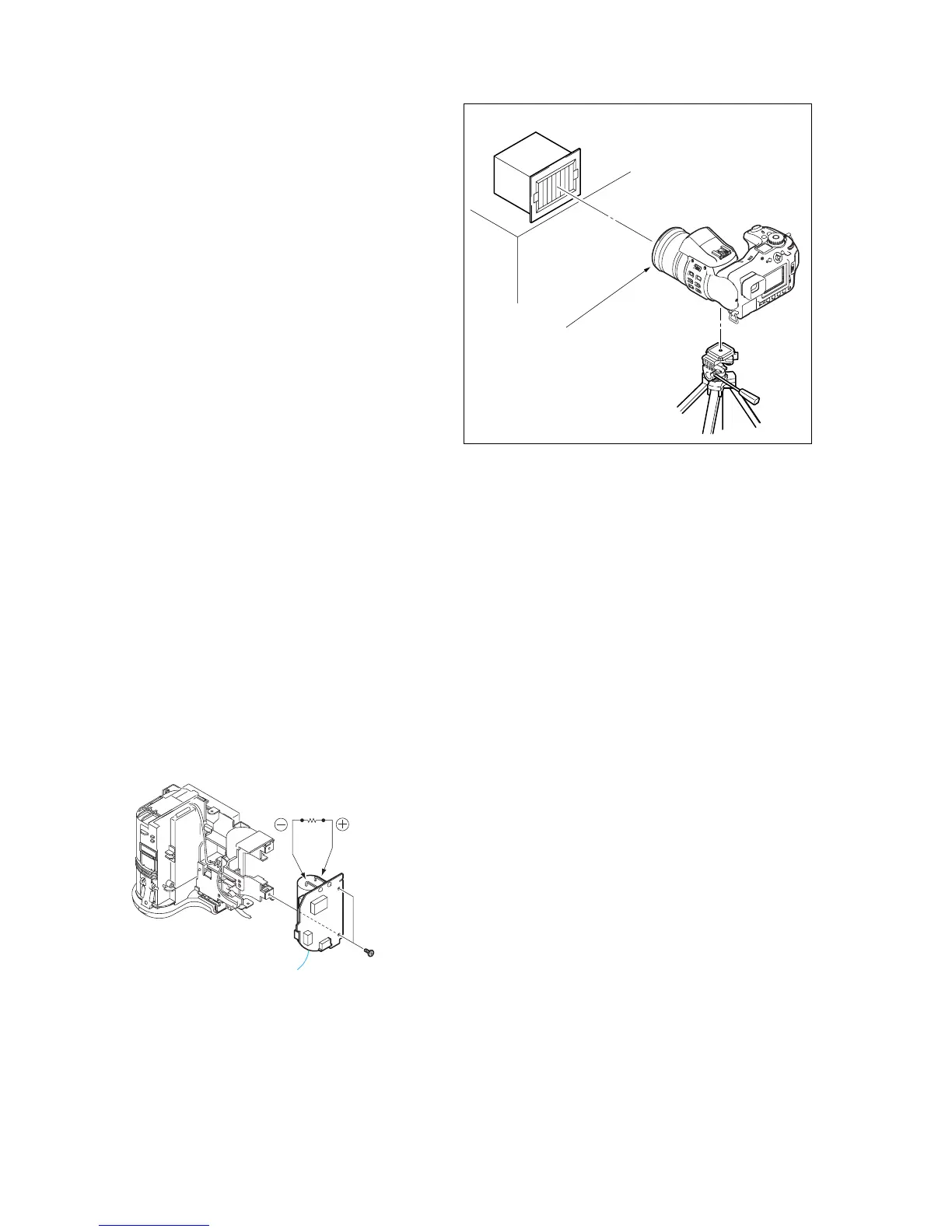

Fig. 6-1-2.
Fig. 6-1-3.
Front of the lens
About 6cm (PTB-1450)
About 20cm (PTB-450)
Pattern box
DD-204
DD-204 board
Short jig
(1k
Ω
/1W)
