7 REEL POSITION
Checks the reel position motor and the reel MINI/M/STD position
sensor.
1. Execute the REEL POSITION.

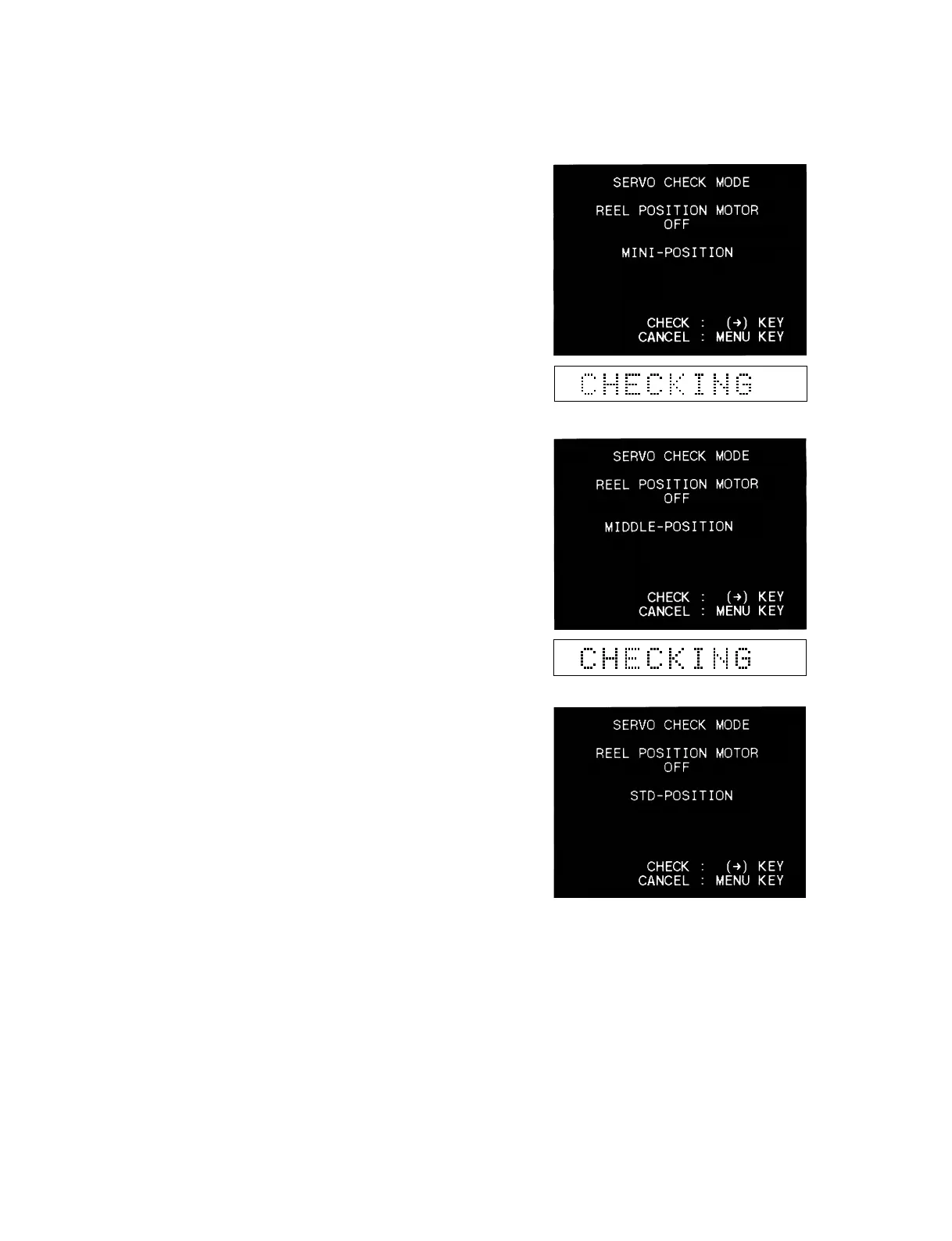

2. Confirm that the reel table moves in the order of the MINI
position → the M position → the STD position then returning
to the MINI position each time pressing the [ENTRY] (→)
key and the monitor display changes in accordance with the
move.
In the case of trouble :
If the reel table does not move or the monitor display does not
change, check the reel position motor, the reel MINI/M/STD
position sensor (the SE-522 and MS-64 boards) and reel position
motor driver circuit (the SV-212 board).
