5-20
DSR-2000A/2000AP
22
22

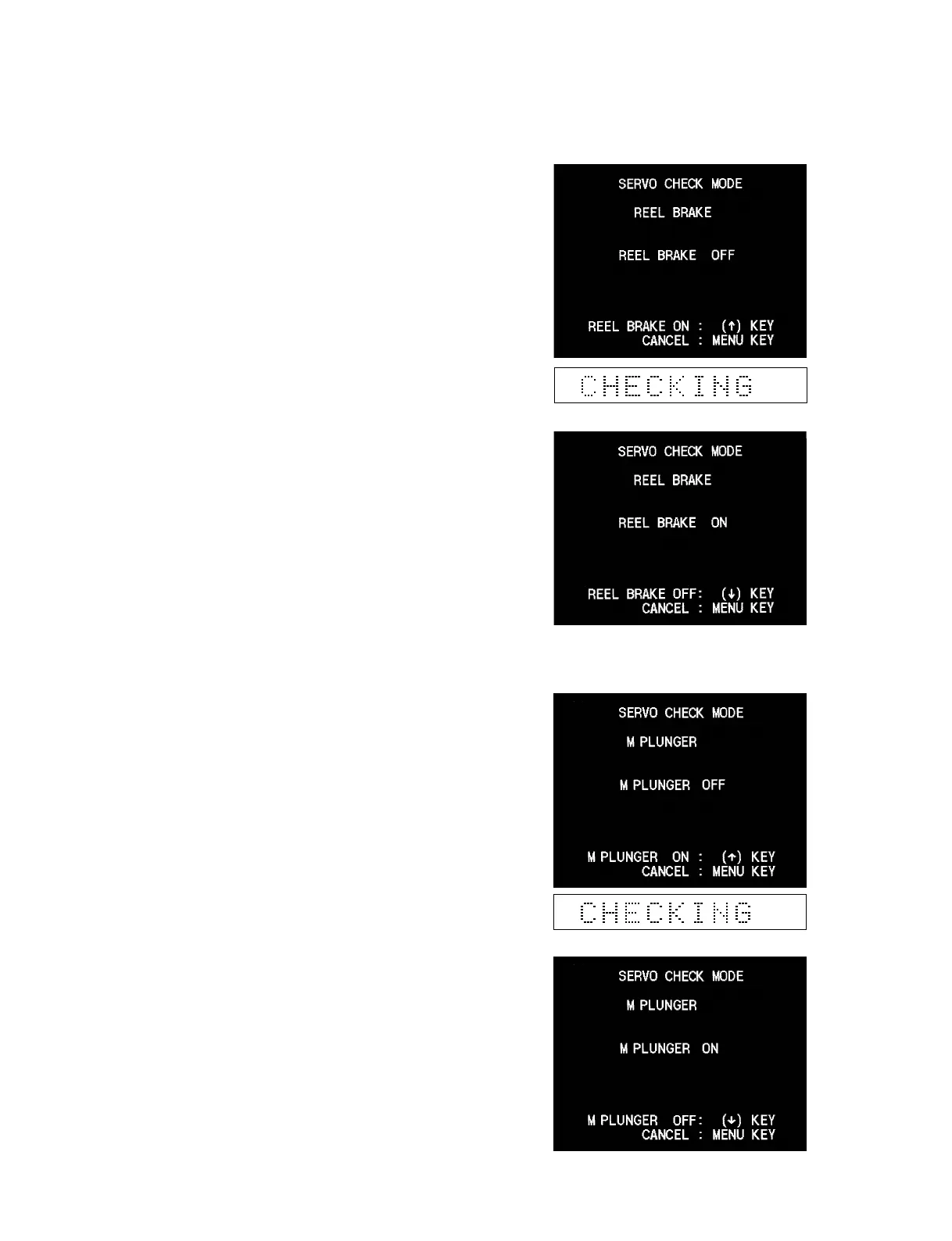

2 REEL BRAKE
Checks the reel brake solenoid.
1. Execute the REEL BRAKE and confirm that the reel brake
solenoid operates.
2. Press the [AUDIO|IN] (↑) and [IN] (↓) keys to confirm that
the REEL BRAKE comes to ON/OFF.
3. Press the [MENU] key to release the reel brake solenoid.
Doing so, the monitor display returns to the main menu.
In the case of trouble :
If the reel brake solenoid does not operate, check the reel brake
solenoid and its driver circuit (the SV-212 board).
33
33
3 M PLUNGER
Checks the M plunger solenoid.
1. Execute the M PLUNGER.
2. Press the [AUDIO|IN] (↑) and [IN] (↓) keys to confirm that
the M PLUNGER comes to ON/OFF.
3. Press the [MENU] key to release the M plunger solenoid.
Doing so, the monitor display returns to the main menu.
In the case of trouble :
If the M plunger solenoid does not operate, check the M plunger
solenoid and its driver circuit (the SV-212 board).
