5-23
DSR-2000A/2000AP
(3) T-REEL ONLY
Executes the automatic adjustment of the T reel only.
1. Execute the T-REEL ONLY.

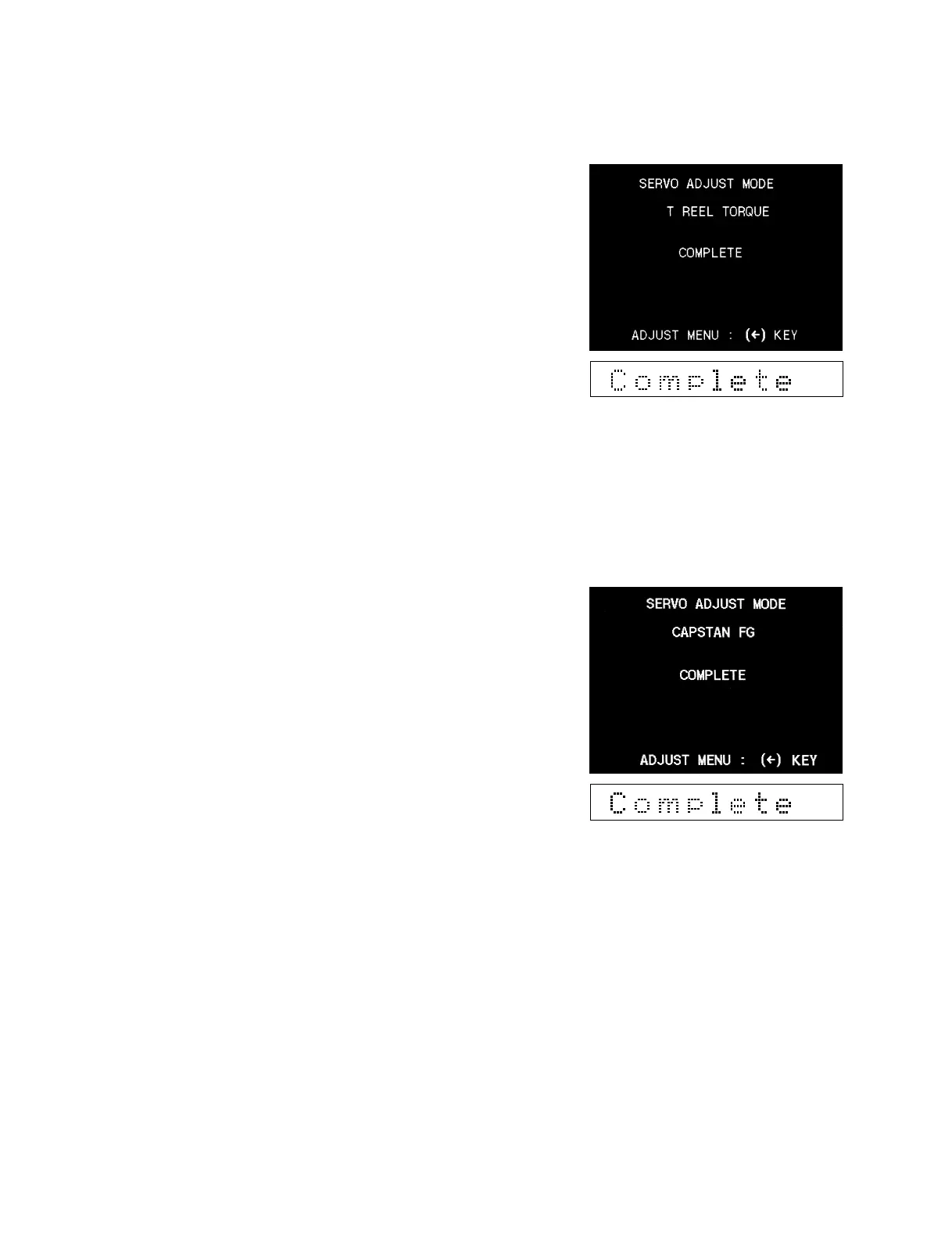

2. After completing adjustment, confirm that “COMPLETE”
appears.
Adjustment items
t reel fg adjust
t reel offset/friction
t reel torque
In the case of trouble :
When “ADJUST INCOMPLETE” appears on the monitor display,
check the SV-212 and MS-64 boards (the reel FG amplifier circuit,
the reel motor driver circuit) and the T-reel motor.
(4) CAPSTAN ONLY
Executes the automatic adjustment of the capstan FG only.
1. Execute the CAPSTAN ONLY.
2. After completing adjustment, confirm that “COMPLETE”
appears.
Adjustment item
capstan fg adjust
In the case of trouble :
When “ADJUST INCOMPLETE” appears on monitor display,
check the SV-212 and MS-64 boards (the capstan motor driver
circuit, the capstan FG amplifier circuit) and the capstan motor.
