7-23
DSR-2000A/2000AP

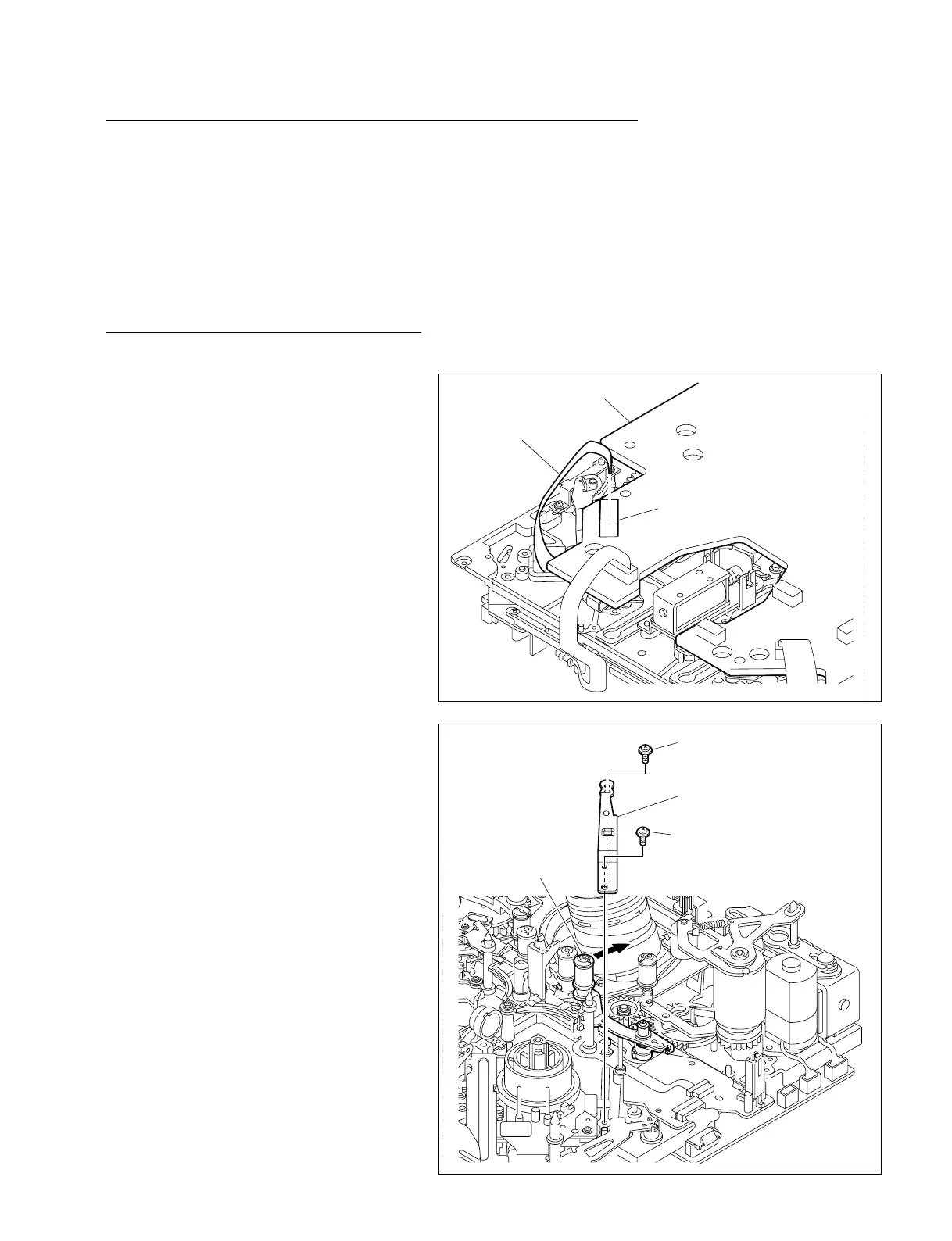

P1.4 x 3.5 (a)
P1.4 x 3.5 (b)
RMP retainer (T1) assembly
T drawer arm assembly
MS-64 board
T reel motor assembly
flexible card wire
Connector (CN6)
Tools
. Torque screwdriver’s bit (for M1.4) : J-6325-110-A
. Torque screwdriver’s bit (for M2) : J-6325-380-A
. Torque screwdriver (for 3 kgf.cm) : J-6325-400-A
. Washer extracting fixture (A) : J-6082-234-A
. Washer mounting fixture Ø1.5 : J-6082-231-A
. Cleaning cloth : 3-184-527-01
. Cleaning fluid : 9-919-573-01
Replacement
1. Removing the MD cover
Remove the MD cover. (Refer to Section 7-2.)
2. Disconnecting the connector
Disconnect the flexible card wire from the
connector (CN6) on the MS-64 board located on
the back side of the MD chassis.
3. Moving the S/T reel tables
Turn the reel shift motor gear by a finger and
bring the S/T reel tables to the standard cassette
position.
(Refer to Section 7-19.)
4. Removing the L push plate
Remove the L push plate. (Refer to Section 7-3.)
5. Removing the MIC assembly
Remove the MIC assembly.
(Refer to Section 7-19.)
6. Removing the RMP (T1) retainer
assembly
(1) Remove the screw (a) with the T-drawer arm
assembly drawn lightly in the arrow direc-
tion.
(2) Remove the screw (b) and remove the RMP
(T1) retainer assembly.
