7-56
DSR-2000A/2000AP
Reel shift
motor gear
T reel table
S reel table
MIC spring
RLR assembly
MIC assembly

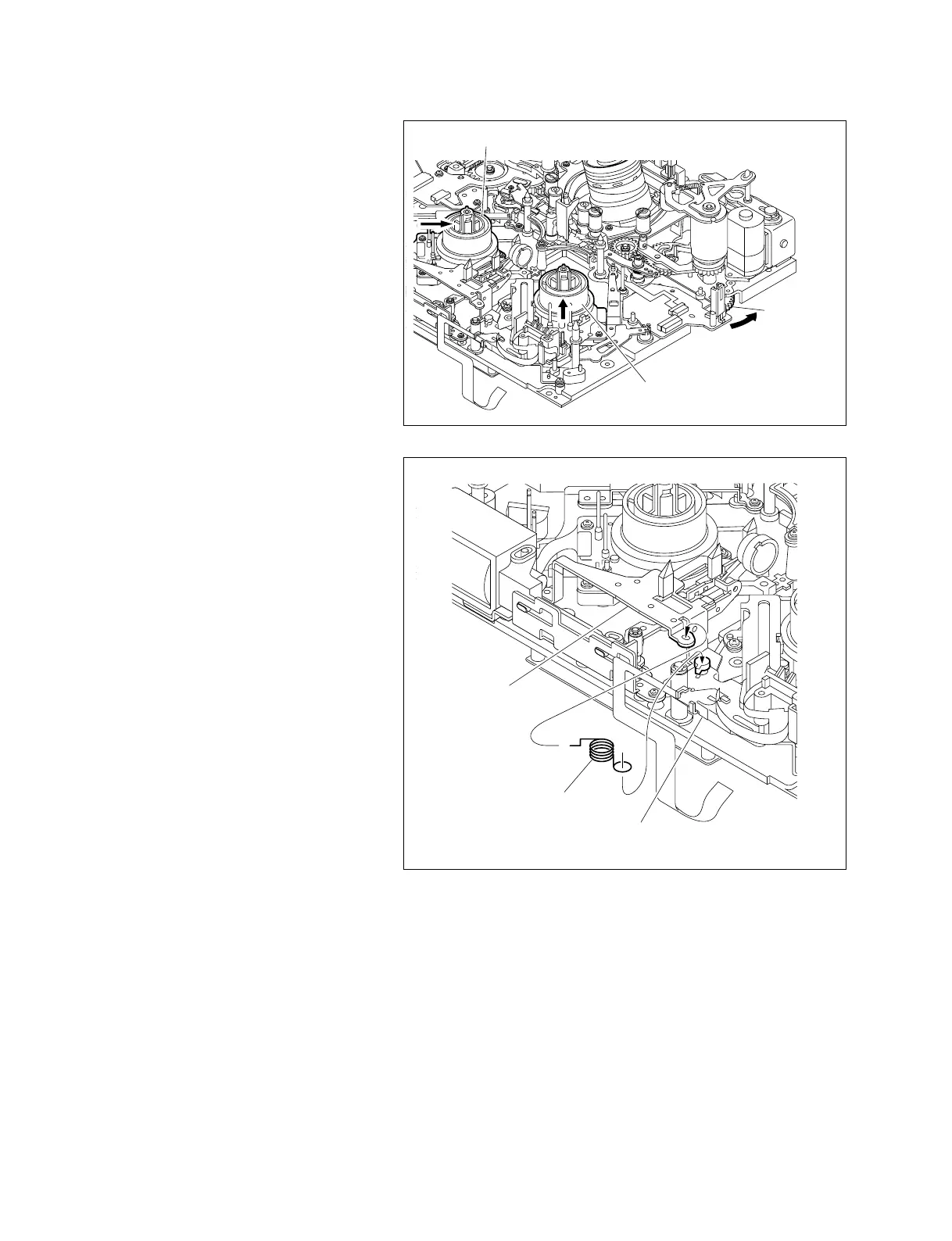

7. Moving the S/T reel tables
Turn the reel shift motor gear in the arrow
direction by a finger and bring the S/T reel tables
to the S-cassette position (the drum side).
Confirm that the S/T reel tables and the MIC
assembly shift smoothly.
8. Reattaching the MIC spring
Reattach the MIC spring removed in step 5 to the
MIC arm and RLR assemblies.
9. Reattaching the L push plate
Reattach the L push plate. (Refer to Section 7-3.)
10. Reconnecting the flexible card wire
Reconnect the flexible card wire to the connector
(CN7) on the MS-64 board located on the back
side of the MD chassis.
11. Reattaching the MD cover.
Reattach the MD cover. (Refer to Section 7-2.)
To Next Page
