2-9
DSR-2000A/2000AP

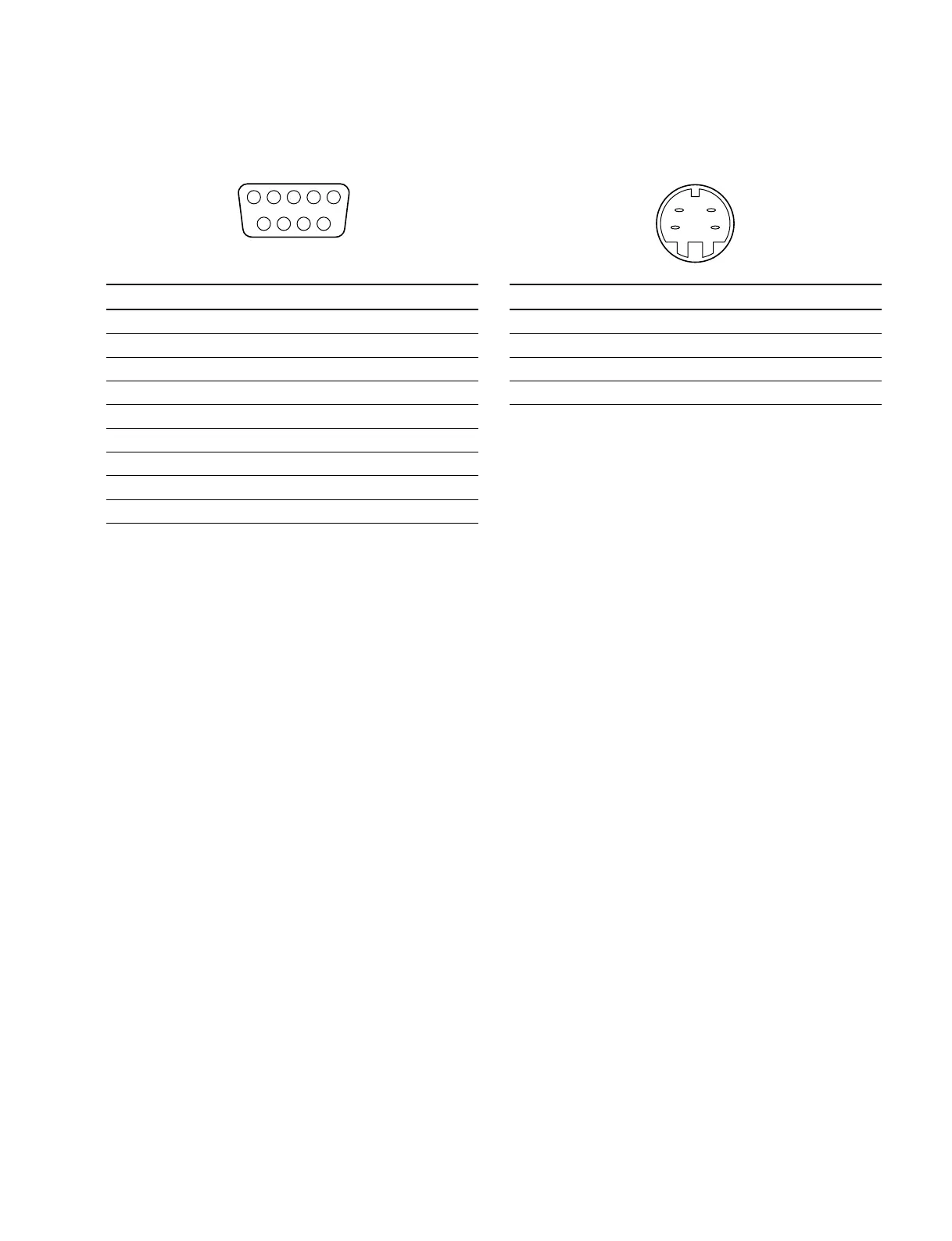

REMOTE (D-sub 9 pin : MALE)
<external view>
Pin No. Controlling Device Controlled Device
1 FRAME GROUND FRAME GROUND
2 RECEIVE A TRANSMIT A
3 TRANSMIT B RECEIVE B
4 TRANSMIT COMMON RECEIVE COMMON
5 PRIORITY IN PRIORITY OUT
6 RECEIVE COMMON TRANSMIT COMMON
7 RECEIVE B TRANSMIT B
8 TRANSMIT A RECEIVE A
9 FRAME GROUND FRAME GROUND
32145
7689
4
21
3
S VIDEO (Circular 4 pin)
<external view>
Pin No. Output Signal
1 Y (G)
2 C (G)
3 Y (X)
4 C (X)
To Next Page
