3-2
DSR-2000A/2000AP
3
4
1
2
6
5

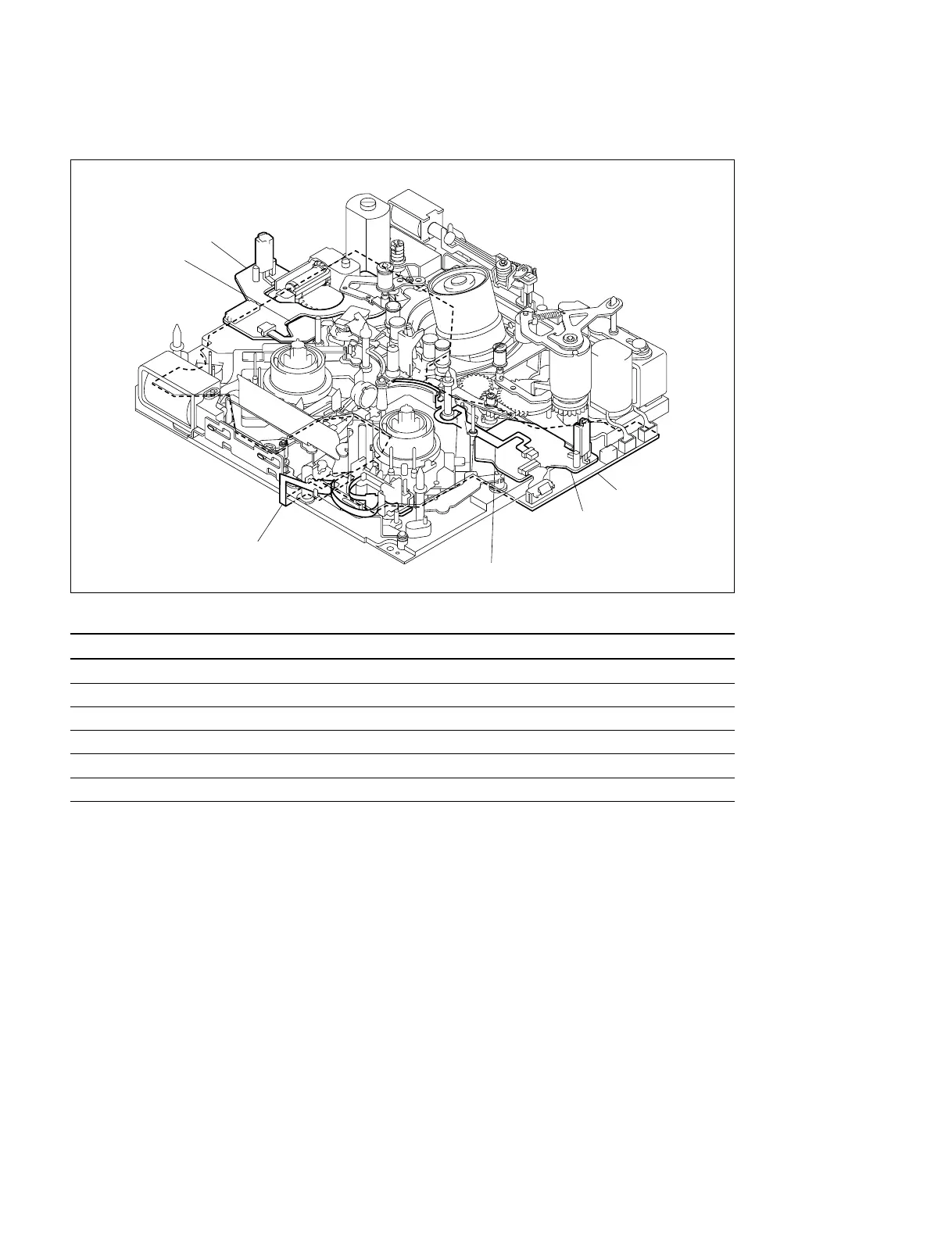

Locations of Mechanism Deck
No. Board Name Circuit Configuration
1 SE-521 Mode sensor/tape end sensor/loading motor FG sensor
2 SE-538 Tension sensor
3 CN-1863 Sensor input/output board
4 SE-525 LED signal board
5 SE-522 Tape top sensor/reel position sensor (Mini/M/Standard)
6 MS-64 Servo/mechanism control
To Next Page
