DSR-2000A/2000AP

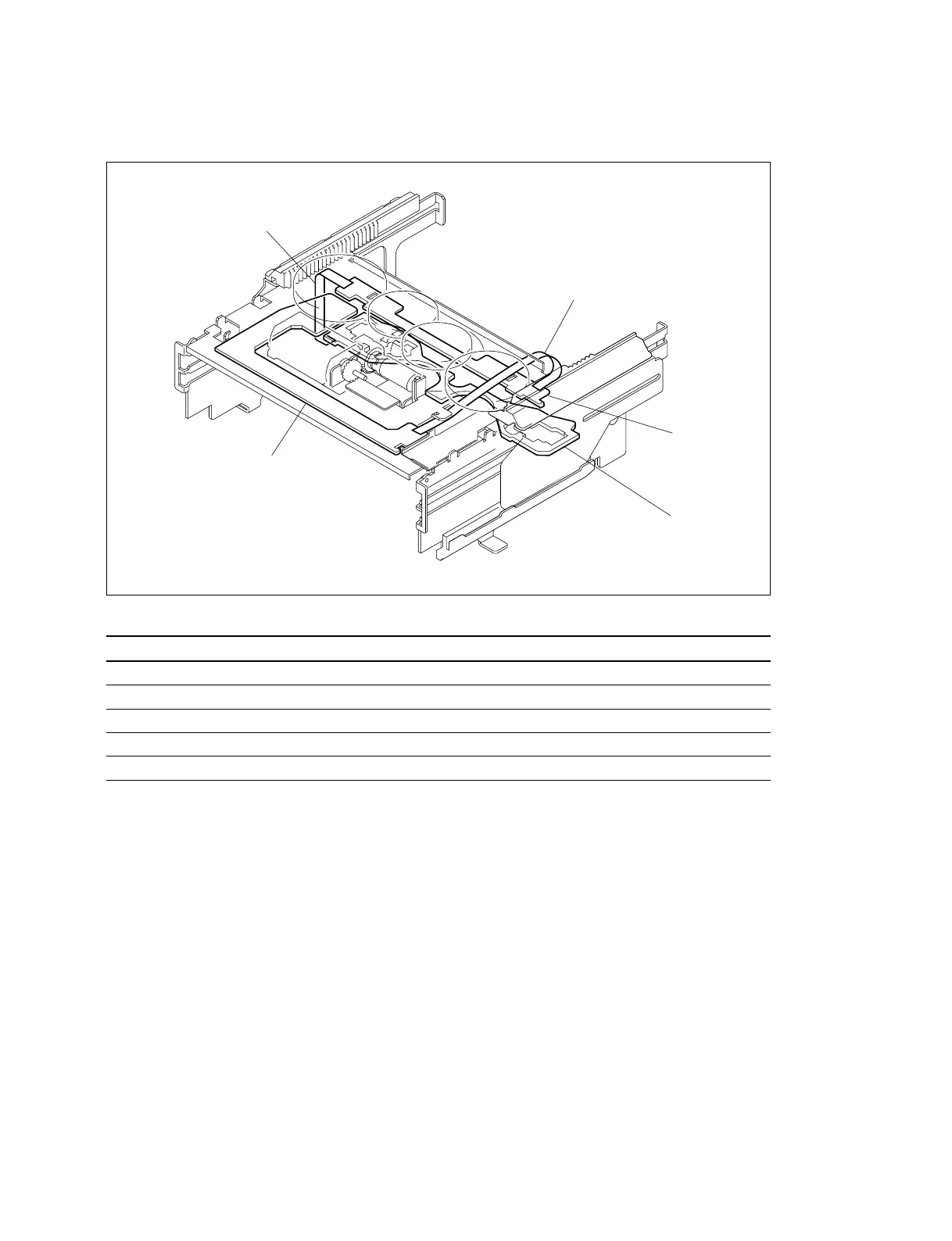

Locations of Cassette Compartment
No. Board Name Circuit Configuration
1 CN-2021 Intermediate board between CC-84 and CC-83
2 CC-83 Cassette compartment mode detection/intermediate board
3 CC-85 Cassette compartment cassette in detection
4 CC-84 Cassette compartment cassette type detection
5 CN-2022 Intermediate board between CC-85 and CC-84
2
1
3
4
5
