1. SENSOR CHECK
The respective items of “SENSOR CHECK” are described below :
11
11
1 CASS-COMPARTMENT
Checks the respective switches of the cassette compartment.
SW/Sensor Applicable board
PH1 CC-85
PH2
PH3
PH4
S1 CC-84
S2
S3

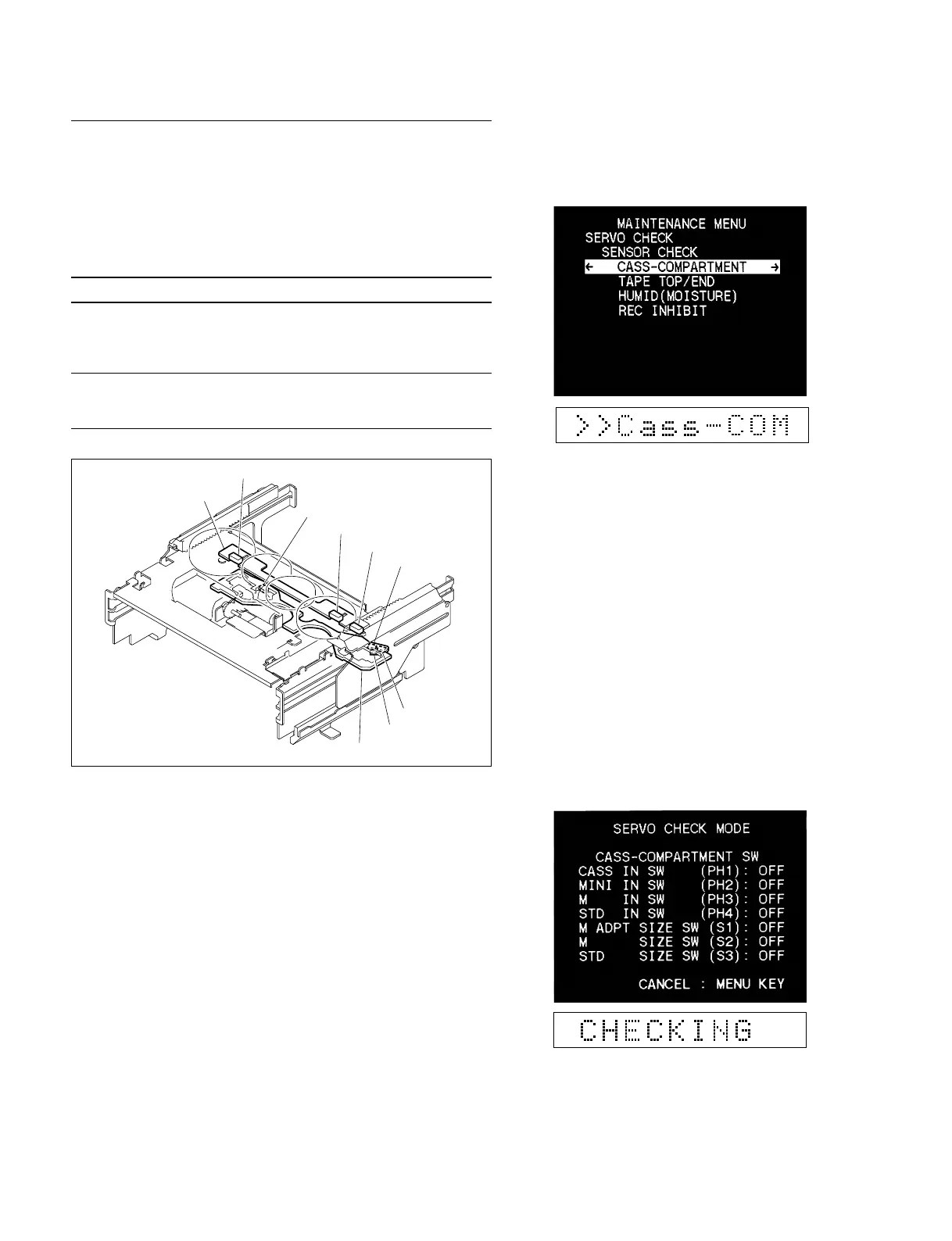

1. Execute the CASS-COMPARTMENT.
2. Confirm that the sensors are all OFF with no cassette inserted.
PH1
S1
S3
CC-84 board
CC-85 board
S2
PH2
PH4
PH3
