6-16
DSR-80/80P/60/60P

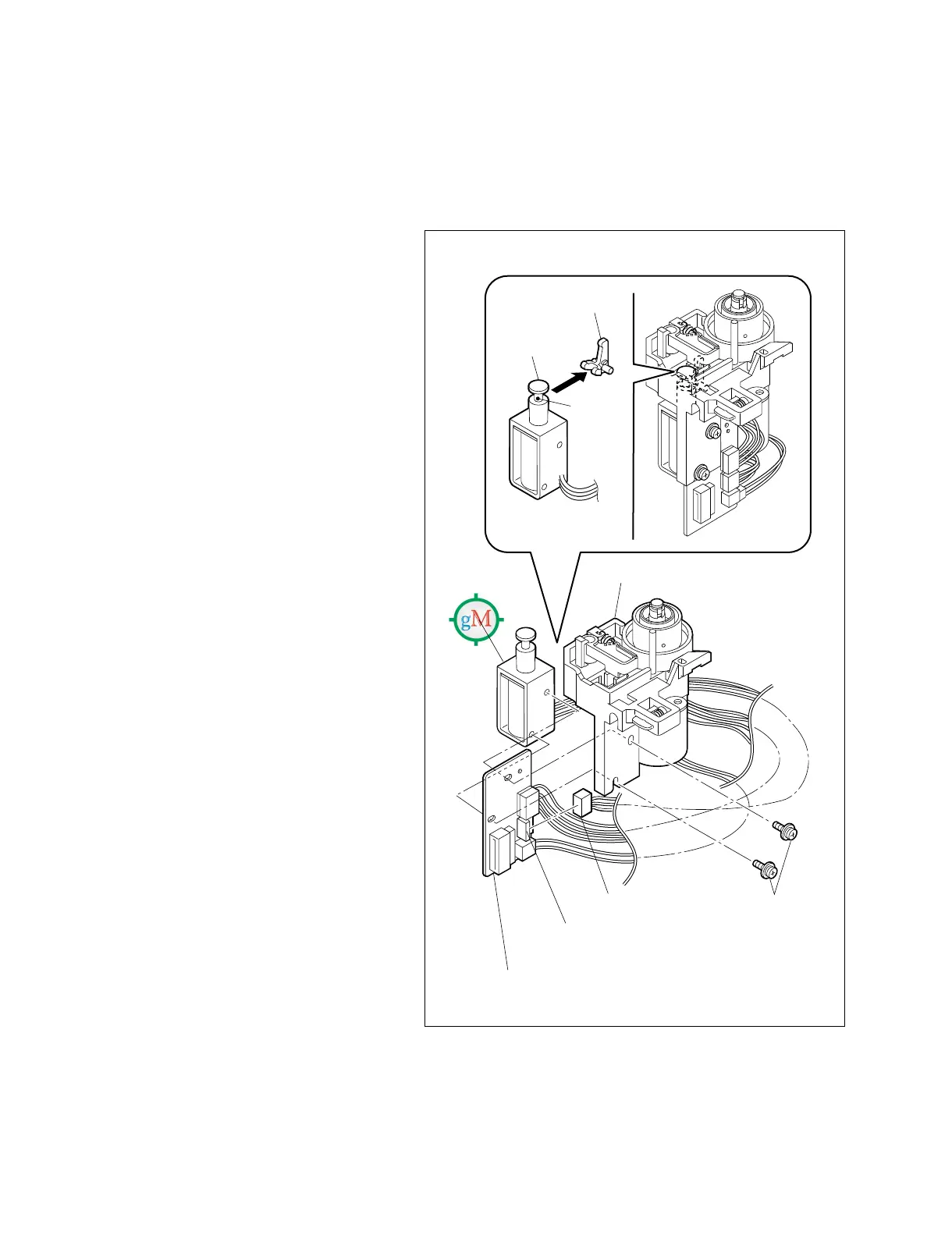

6-8. BRAKE SOLENOID REPLACEMENT
. The brake solenoid replacement procedure is the same for both the supply side and the takeup side.
Removal
1. Remove the reel block assembly from the
machine according to the reel block assembly
replacement procedure. (Refer to section 6-6.)
2. Remove the two fixing screws (PSW 2.6x6)
securing the brake solenoid to the reel block
assembly, and remove the brake solenoid
assembly together with either RM-159 board (S
side) or RM-160 board (T side).
3. Remove the connector CN13 (S side) on the RM-
159 board, or CN17 (T side) on the RM-160
board.
Attachment
4. Insert the groove of the iron core of the new
brake solenoid, into the brake release arm, and
attach the brake solenoid with two screws
temporarily.
5. Attach the disassembled parts by reversing the
removal procedure from steps 3 to 1.
Adjustment After Replacement
6. Perform the Reel Brake Release Check and
Adjustment. (Refer to section 6-4-3.)
Fixing screws
PSW 2.6x6
S-SIDE : CN13
(T-SIDE : CN17)
S-side : RM-159 board
(T-side : RM-160 board)
Brake solenoid
Reel block (S) assembly
Connector
Iron core
Groove
Brake release arm
<Supply side>
To Next Page
