Sony DSR-80 - 10-5-2-2. REC Y Clamp Level Adjustment

10-26 (P)
DSR-80/80P/60/60P
10-5-2-2. REC Y Clamp Level Adjustment
Conditions for adjustment Adjustment
..
..
. Specification
. EE mode
. COMPONENT IN ; 100 % Color bar
Connection 1
COMPONENT Y OUT (75 Z terminated)
1RV915/IO-149 (M-4)

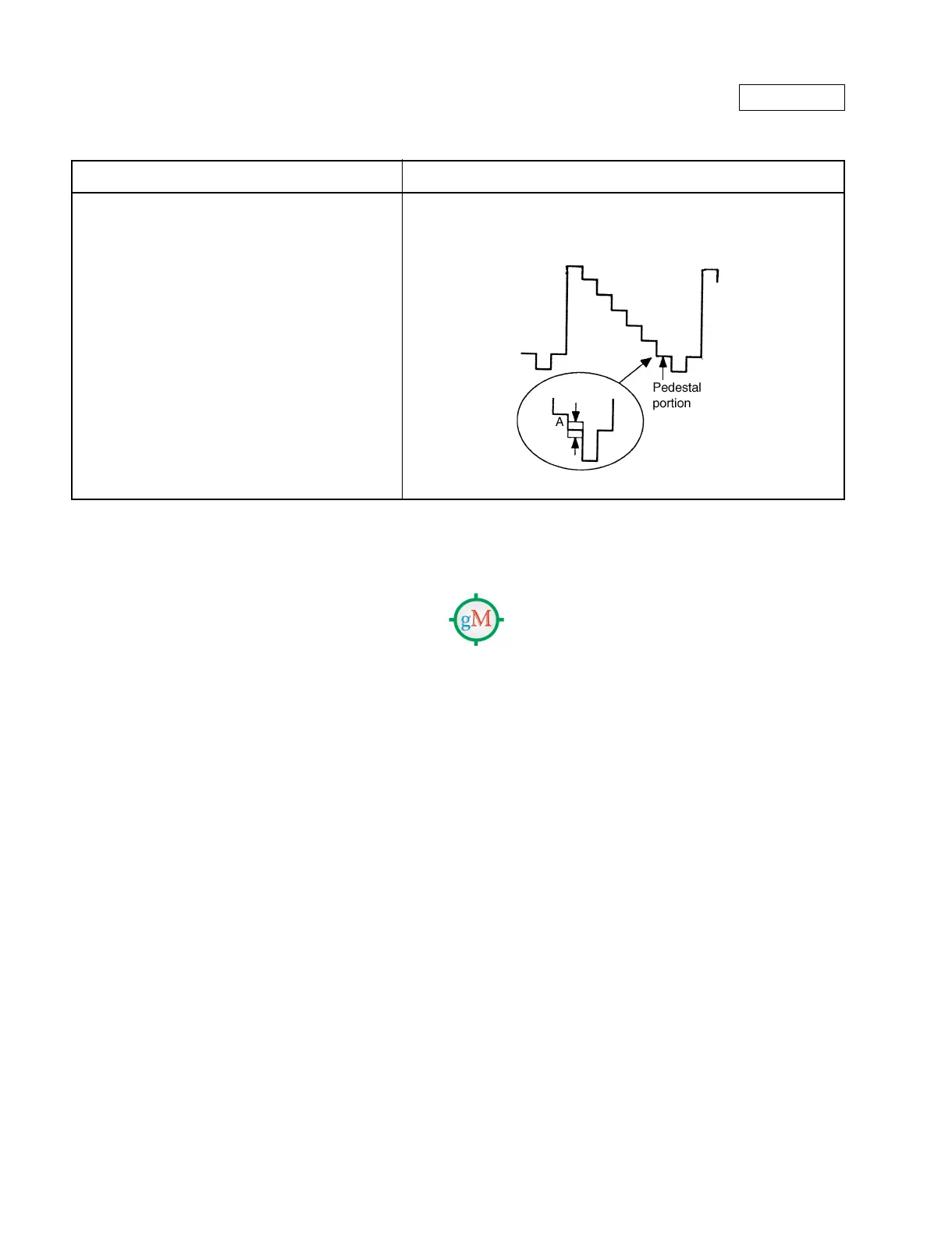

Spec. A=Overlap the Pedestal portion
DSR-80P
