Sony DSR-80 - 3-1-2. Location of Main Mechanical Parts

3-23-2
DSR-80/80P/60/60P

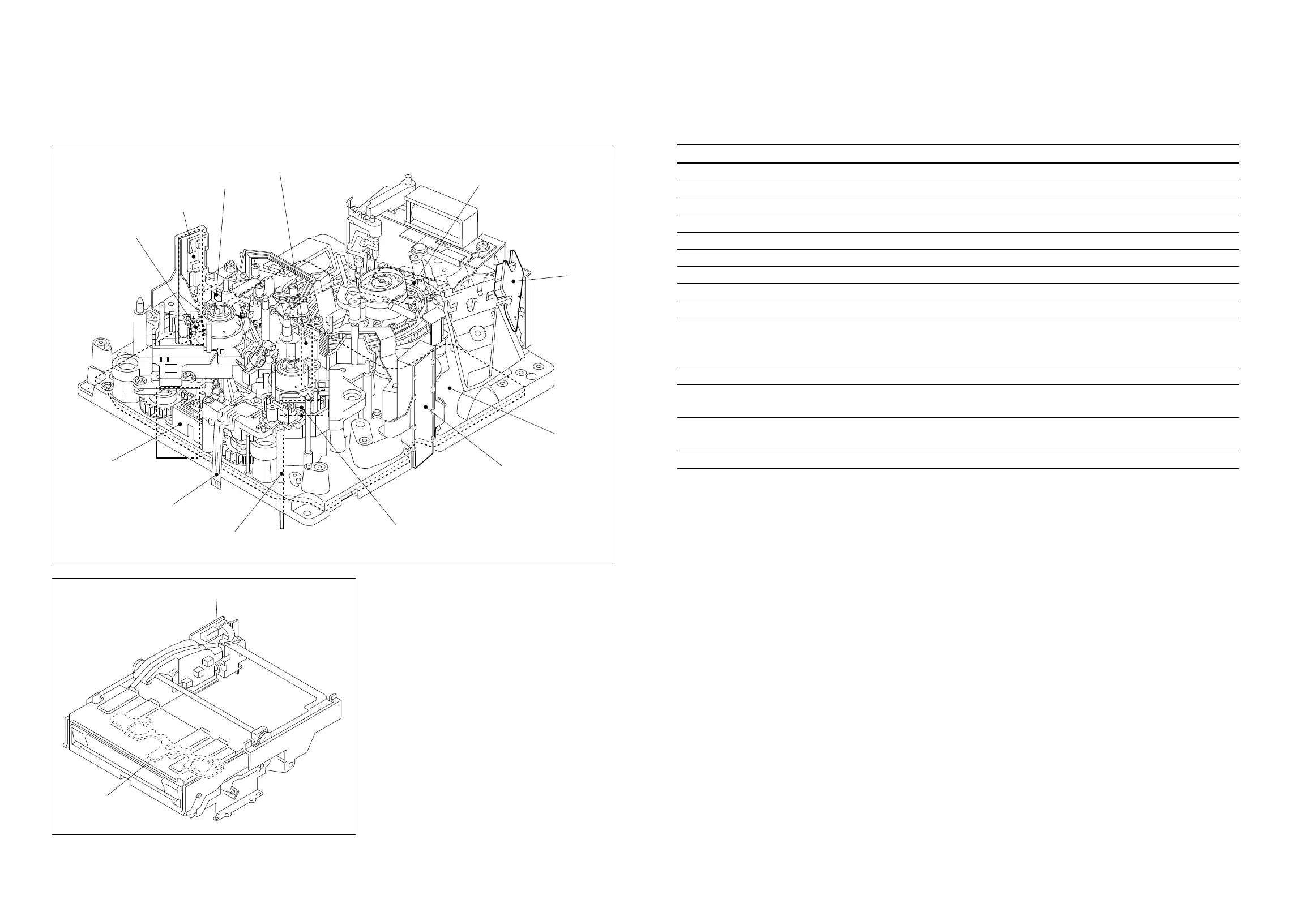

3-1-2. Location of Main Mechanical Parts
Board Locations of Mechanism Deck
Board Name Circuit Configuration
1 PTC-87 board TAPE TOP/END LED
2 TR-93 board TEN-REG ARM POSITION SENSOR
3 PTC-86 board TAPE END SENSOR, TENSION SENSOR CONNECTION
4 SE-315 board S REEL FG SENSOR
5 RM-159 board S REEL MOTOR/BRAKE SOL/FG SENSOR CONNECTION
6 FP-90 board CONNECTION
7 RM-160 board T REEL MOTOR/BRAKE SOL/FG SENSOR CONNECTION
8 SE-361 board T REEL FG SENSOR
9 PTC-85 board TAPE TOP SENSOR
!/ MS-43 board DRUM/CAPSTAN MOTOR DRIVE, CAPSTAN FG AMP,
TAPE TOP/END SENSOR AMP, REEL POSITION SENSOR,
SV DATA MEMORY
!- PTC-88 board THREADING FG SENSOR, THREADING MOTOR CONNECTION
!= PTC-84 board THREAD/UNTHREAD END SENSOR,
PINCH SOL/CLEAN SOL/DEW CONNECTION
![ CC-75 board CASSETTE COMPARTMENT DOWN 1/2/3 SENSOR
CC UP/DOWN MOTOR CONNECTION
!] CC-76 board CASSETTE IN 1/2/3 SENSOR
1
2
3
4
5
6
7
8
9
!/
!-
!=
![
!]
