Sony DSR-80 - 10-5-1-9. ENC SC Leak Adjustment

10-9 (P)
DSR-80/80P/60/60P

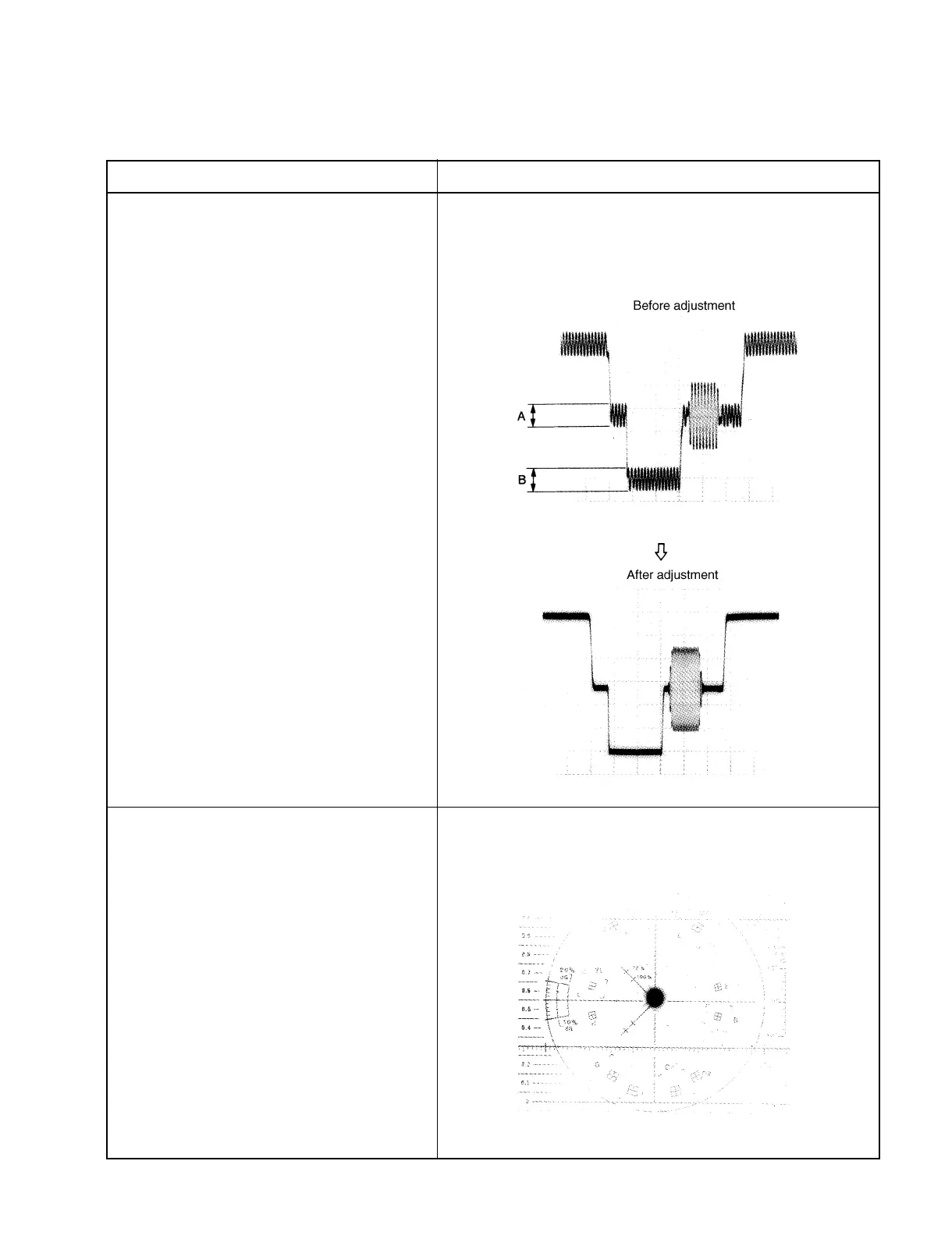

10-5-1-9. ENC SC Leak Adjustment
Step 1
. PB mode
100 % Color bar/XH5-1AP
. Waveform/Vector (1751) ; WFM mode
. Set the time axis of the WFM to magnification mode
Connection 2
Step 2
. PB mode
100 % Color bar/XH5-1AP
. Waveform/Vector (1751) ; Vector mode
Connection 2
VIDEO OUT 1 (75 Z terminated)
(A) ENC B-Y BAL (B) ENC R-Y BAL
1RV108/IO-149 (D-3) 1RV109/IO-149 (E-3)
TRIG : REF. VIDEO
WFM or Oscilloscope
(Spec. Adjust alternately.)
Spec. Minimize the A, B. A, B
<<
<<
<7 mV
VIDEO OUT 1 (75 Z terminated)
TRIG : REF. VIDEO
Vector mode
Spec. Maximum the gain of the Vector and check the dot is at center.
Conditions for adjustment Adjustment
..
..
. Specification
