2-2
DSR-80/80P/60/60P
2-4. INSTALLATION SPACE
(1) The rear side must be at least 40 cm away from the walls for ventilation and maintenance.
(2) When the unit is operated on a desk or similar condition, assure that the clearance above the unit is at least 40 cm to
provide accessibility to the printed circuit boards and other mechanical parts. Note that it is not necessary to provide the
space when the unit is mounted in a rack since the printed circuit boards can be repaired after it is pulled out.
2-5. SUPPLIED ACCESSORIES
. AC power cord : (1)
. RCC-5G 9-pin remote cable : (1)
. Operating instructions : (1)
. ClipLink™ Guide : (1)
2-6. OPTIONAL ACCESSORIES
. TBC remote control unit : UVR-60/60P
. Rack mount Kit : RMM-130
(The unit can be mounted in a 19-inch standard rack)
. Remote control cable : RCC-5G/10G/30G
. Cleaning cassette tape : PDVM-12CL
. Circus Remote control : SVRM-100A/DSRM-10
. Digital video cassette (Mini size) : PDVM-12ME/22ME/32ME/40ME
. Digital video cassette (Standard size) : PDV-64ME/94ME/124ME/184ME
. SDI output board : DSBK-100/100P (DSR-60/60P)
. QSDI output board : DSBK-110/110P (DSR-60/60P)
. SDI input/output board : DSBK-120/120P (DSR-80/80P)
. Time code input/output board : DSBK-130/130P

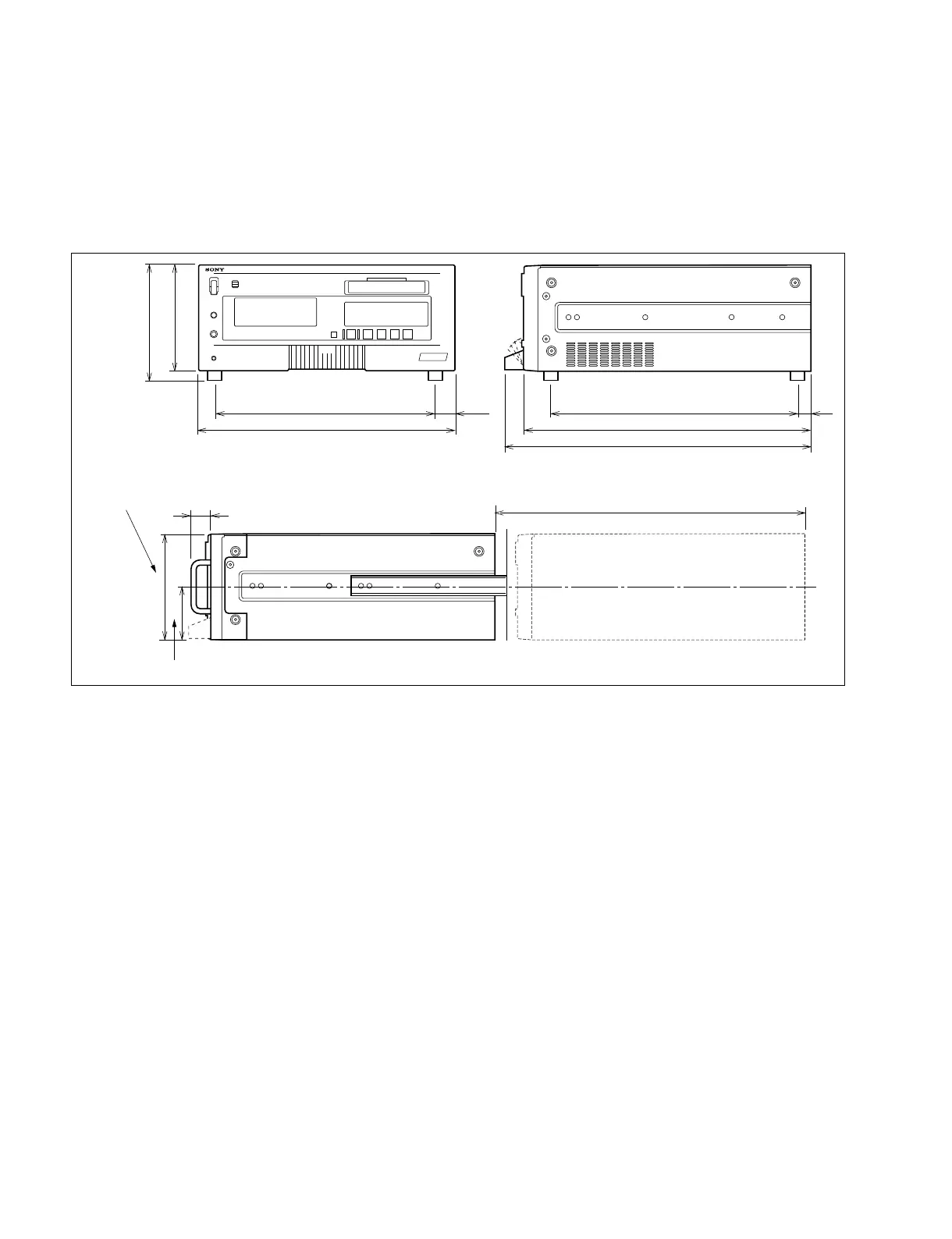

30 (handle hight)
Set’s height at
rack mounting.
( )
191
174
87
174 (4U)
372
27.5
427
577 (maximum traveling distance)
400
44
494
512
when rack-mounted
(height as slide rail center)
Unit : mm
To Next Page
