10-17 (N)
DSR-80/80P/60/60P
10-5-1-18. REF. CF Phase Adjustment

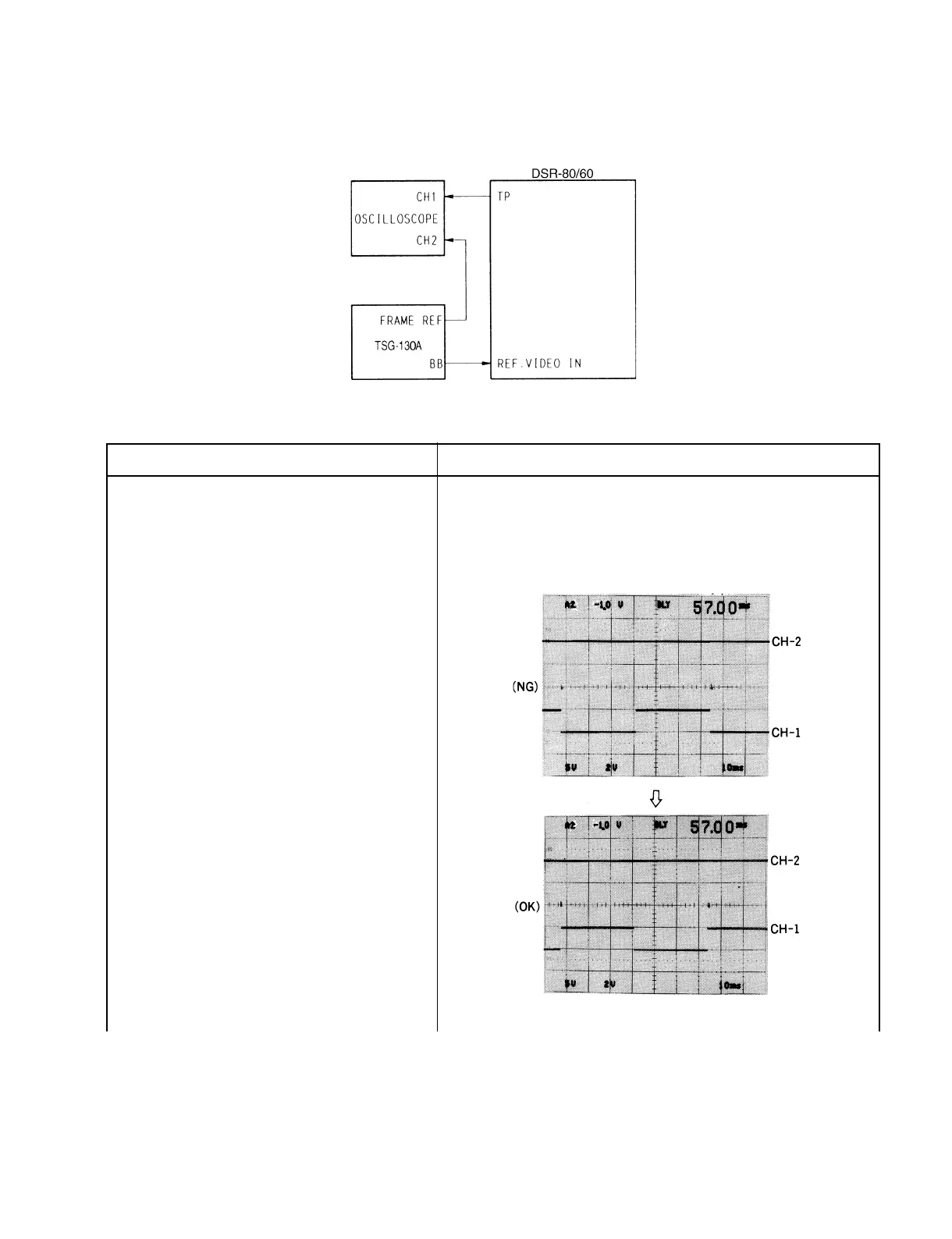

(Connection)
. STOP mode CH-1/Oscilloscope CH-2/Oscilloscope
TP604/IO-149 (A-2) FRAME PULSE/TSG-130A
1RV601/IO-149 (A-1)
TRIG : FRAME PULSE (CH-2)
Oscilloscope
Conditions for adjustment Adjustment
..
..
. Specification
