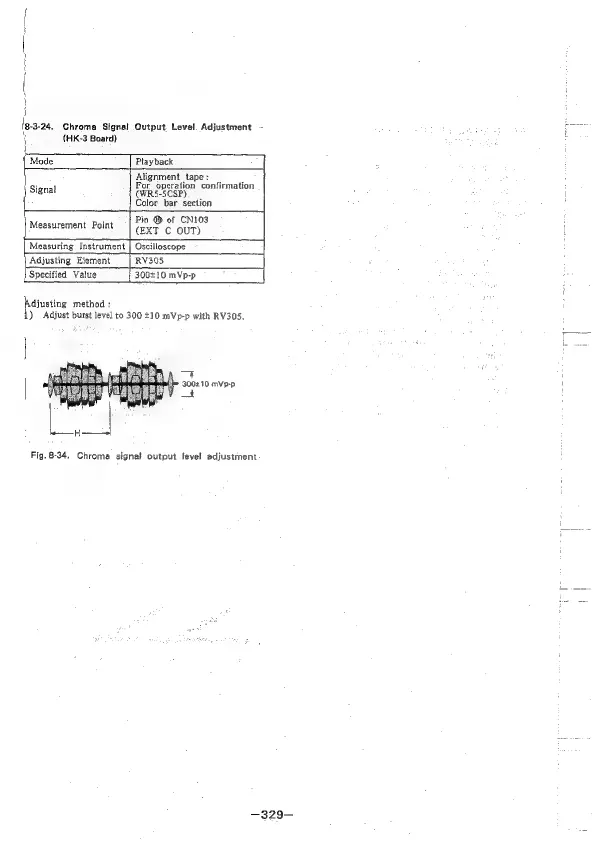

[-3-24. Chroma Signal
} (HK-3 Board)
i
|
Output. Level. Adjustment
| Mode Playback
Alignment tape :
(Signal For operation confirmation
(WR5-5CSP)
Color bar: section
| Measurement Point
Pin ® of CN103
(EXT C OUT)
Measuring Instrument | Oscilloscope
Adjusting Element RV305
t Specified Value
300+10 mVp-p
djusting method:
) Adjust burst level to 300 +10 mVp-p with RV305.
“F
300210 mVp-p
—t
Fig. 8-34. Chroma signal output fevel adjustment
—329—
