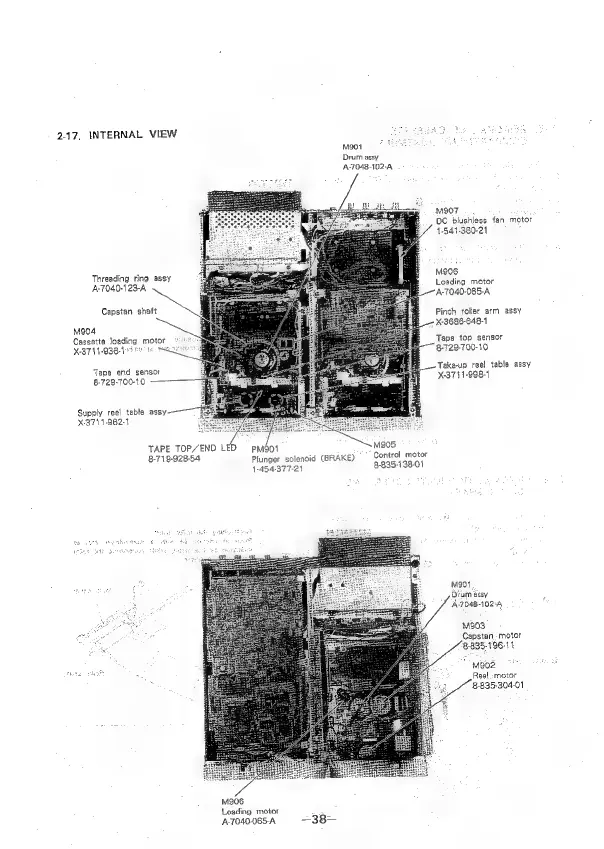

217, INTERNAL VIEW
mg01
Drum assy
A-7048-102-A
M807
OC blushless fan motor
1-541-360-21
Threading
ring
assy
M906
Loading
motor
A-7040-123-4 d ytd
a ‘A-7040-065-A
Pinch roller arm assy
X-3686-648-1
Tape top sensor
8-729-700-10
Taka-up reel table assy
X-3711-998-1
Capstan shaft
M904
Cassette loading motor
X-3711-936-1e
Tape end sensor
8-729-700-10
Supply reel table assy.
X-3711-962-1
PMgOt Mg05
Plunger
solenoid
(BRAKE)
Control
motor
1-454-377-21
8-835-138-01
TAPE TOP//END LED
8-719-928-54
M901
Drum assy
A-1048-102A
Pein
Senee
5
Mg03
3
§
Capstan
motor
8-835-196-11
" Mg02
Reel: motor
8-835-304.01
Loading motor
ATOS0-065-A
