Sony HCD-DX50 - Main Board and Power Board Removal; Leaf SW, Head (A), and Head (B) Board Removal

10
HCD-DX50/RG80

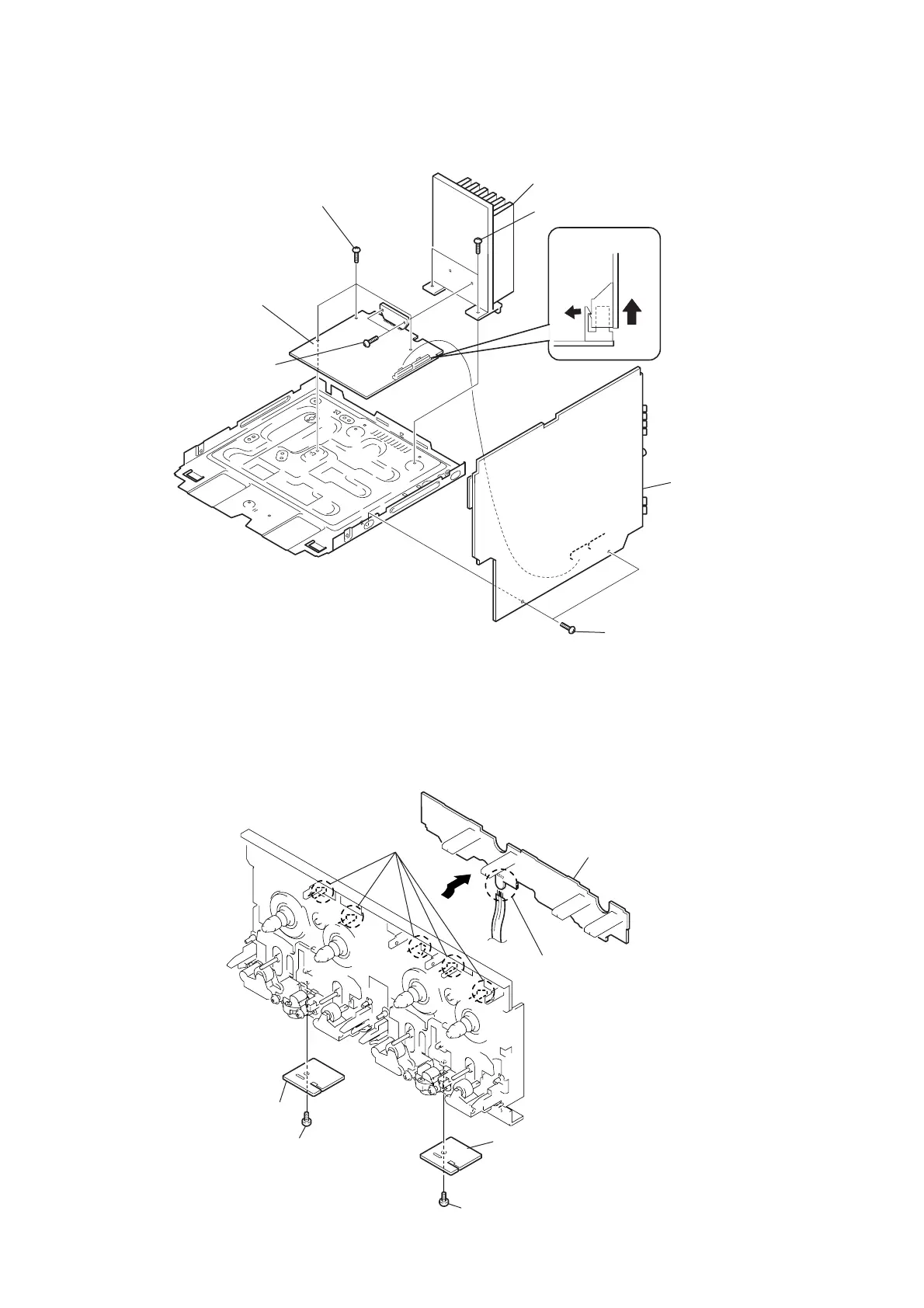

2-7. LEAF SW BOARD, HEAD (A) BOARD AND HEAD (B) BOARD
5 Screw (+PTT 2 × 4)
3 Screw (+PTT 2 × 4)
2 Leaf SW board
1 Five claws
4 Head (A) board
6 Head (B) board
Remove the four solderings.
2-6. MAIN BOARD AND POWER BOARD
4 Three screws (+BVTP 3 × 10)
6 Two screws (+BVTT 3 × 8)
7 Heat sink
3 Two screws (+BVTP 3 × 16)
1 Two screws (+BVTP 3 × 10
)
2 Main board
5 Power board
Main board
