Sony HCD-DX50 - Base Unit Disassembly; Driver, Motor, and Address Sensor Board Removal

11
HCD-DX50/RG80

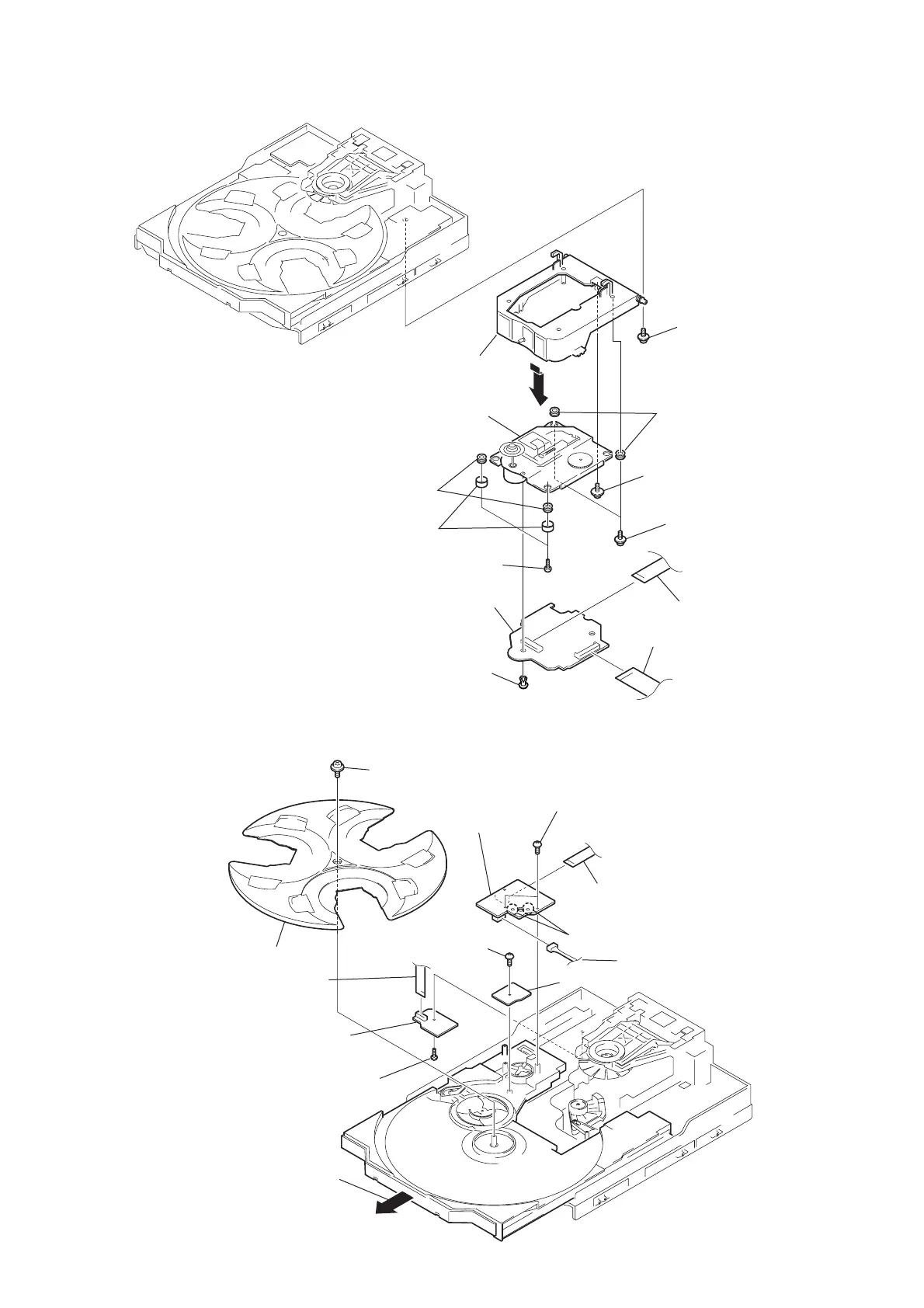

2-8. BASE UNIT
2-9. DRIVER BOARD, MOTER BOARD AND ADDRESS SENSOR BOARD
9 Pull-out the disc tray.
4 Two screws (+BVTP 2.6 × 8)
q; Screw (+PTPWH 2.6 × 8)
qa Tray
1 Screw (+BVTP 2.6 × 8)
qs Screw (+BVTP 2.6 × 8)
6 Flat type wire (8 core)
3 Flat type wire
(8 core)
8 Motor board
qd Address sensor board
2 Driver board
5 Remove the two solderings of motor.
7 Connector
Base unit
qa
9 Two screws (+PTPWH M2.6)
1 Screw (+PTPWH M2.6)
q; Screws (DIA. 12)
7 Two screws (+BVTP 2.6 × 8)
6 BD board
5 Rivet
qs Two insulators
2 Holder assy
qs Two insulators
8 Two stoppers
3 Flat type wire (21 core)
4 Flat type wire (16 core)
