Sony HCD-FX10 - Front Panel Assy; I;O Board, DC Fan

10
HCD-FX10

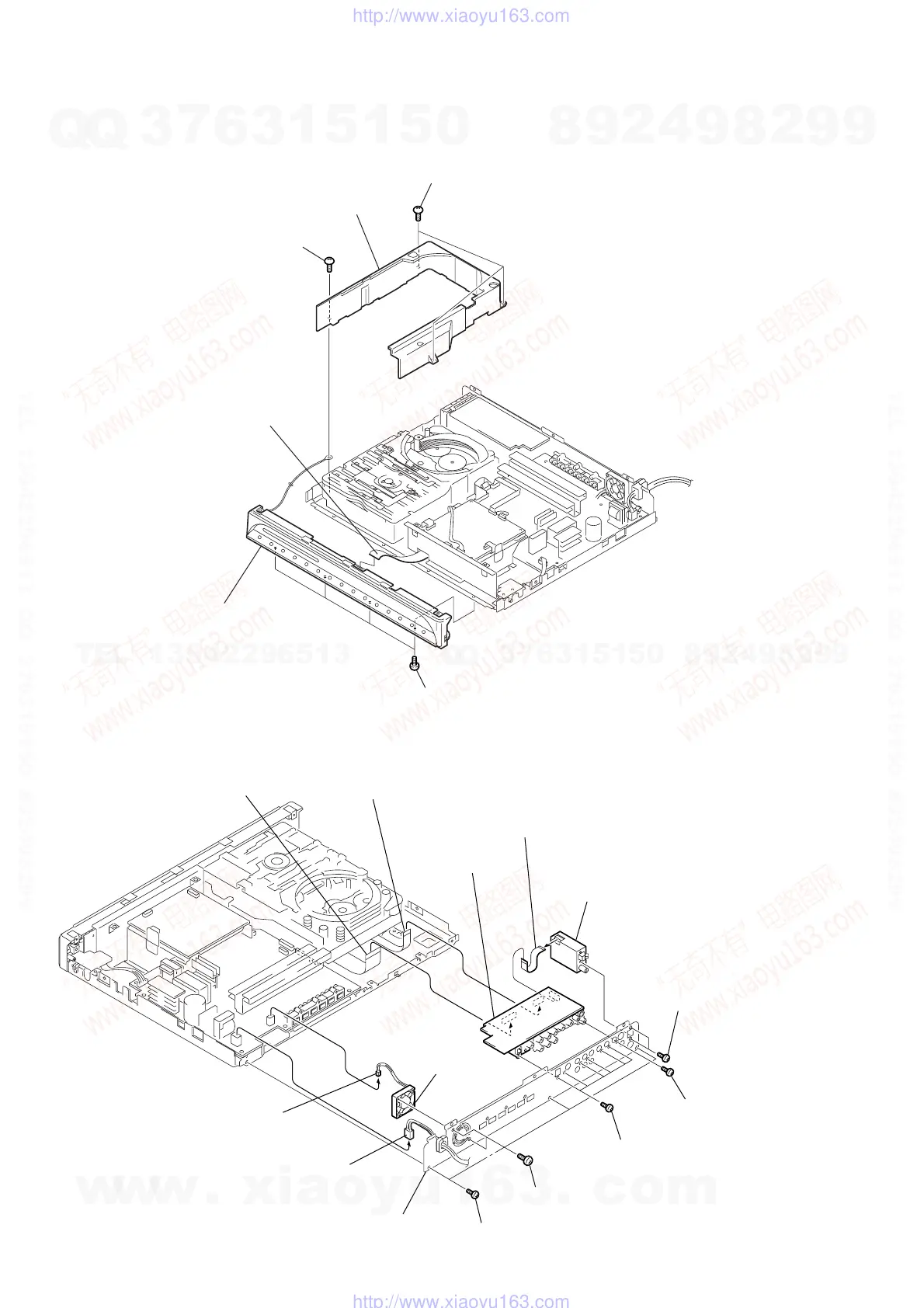

3-4. I/O BOARD, DC FAN
3-3. FRONT PANEL ASSY
6 front panel assy
3 MD cover
5 four screws
(+BVTP 3
× 8)
2 three screws
(+BVTP 3
× 8)
1 screw
(+BVTP 3
× 8)
4 wire (flat type)
19p(CN801)
2 connector
(CN300)
1 connector
(CN901)
7 DC fan
qd tuner
qa I/O board
back panel
5 wire (flat type)
13p(CN201)
0 wire (flat type)
11p(CN101)
4 wire (flat type)
23p(CN601)
9 screw (+BVTP 3 × 8)
8 six screws (+BVTP 3 × 8)
3 three screws (+BVTP 3 × 8)
qs two screws (+BVTP 3 × 8)
6 two screws (+BVTT 4 × 8)
