Sony HCD-FX10 - DMB10 Board

11
HCD-FX10

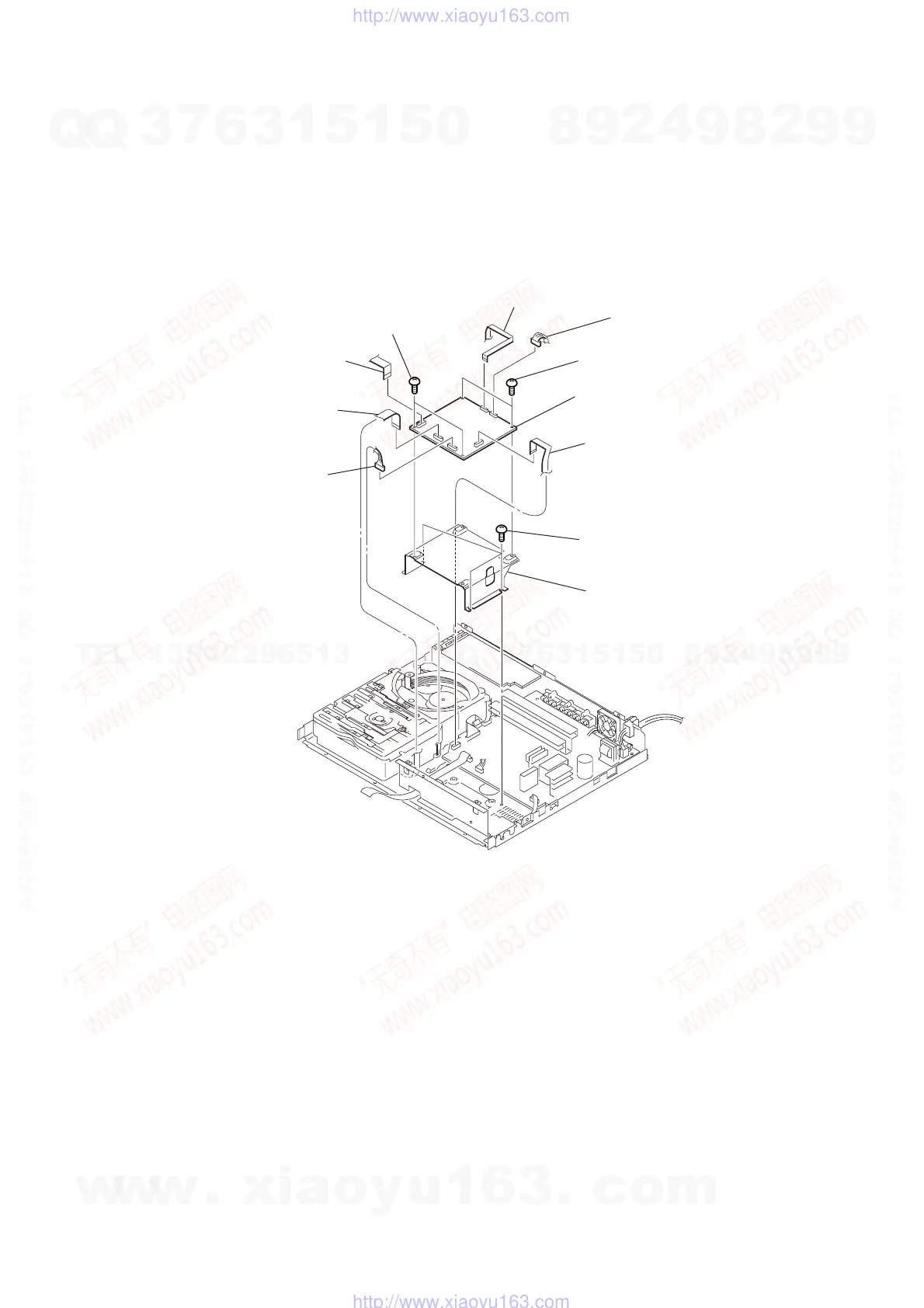

3-5. DMB10 BOARD
9 DMB10 board
qa dmb chassis
8 two screws
(+BV 3)
7 two screws
(+BV 3)
0 three screws
(+BVTP 3
× 8)
4 wire (flat type)
11p(CN4501)
6 wire (flat type)
13p(CN106)
5 connector (CN401)
1 connector (CN201)
3 wire (flat type)
13p(CN4802)
2 wire (flat type)
24p(CN101)
