HCD-FX10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-077-331-01 +BV3 (3-CR)
152 3-077-331-21 +BV3 (3-CR)
✩ 153 A-1104-744-A DMB10 BOARD, COMPLETE
154 A-1104-726-A MAIN BOARD, COMPLETE
155 4-232-478-31 FOOT
156 1-830-552-11 WIRE (FLAT TYPE) (24 CORE)
157 4-254-954-01 SHEET (DMB), RADIATION
158 1-828-382-11 WIRE (FLAT TYPE) (23 CORE)
159 1-830-543-11 WIRE (FLAT TYPE) (13 CORE)
160 4-254-947-01 SHEET (AMP), RADIATION
161 4-254-947-11 SHEET (AMP), RADIATION
162 1-830-576-11 WIRE (FLAT TYPE) (11 CORE)
163 1-828-361-11 WIRE (FLAT TYPE) (19 CORE)
0 F902 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3

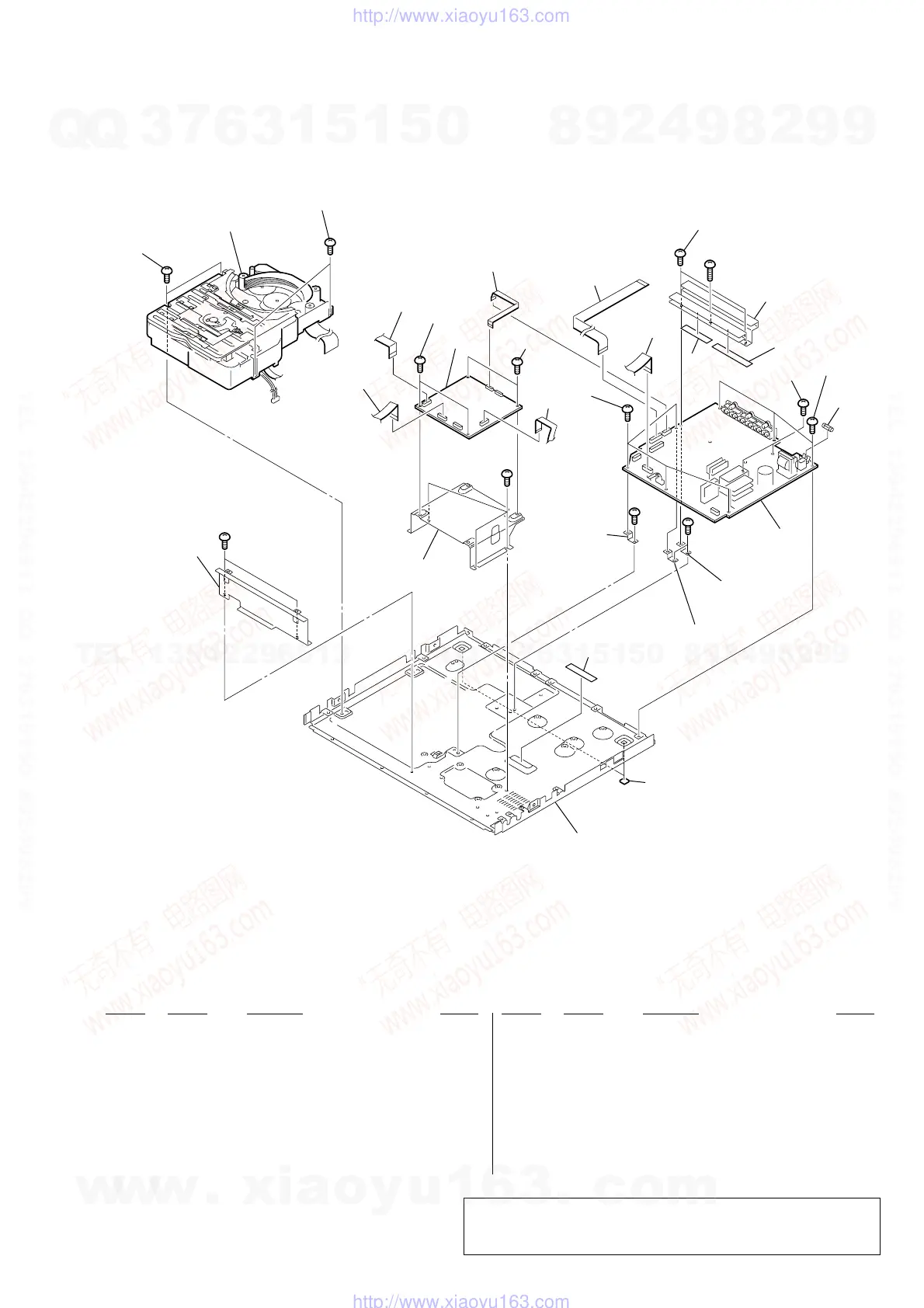

7-4. CHASSIS SECTION-2
151
152
152
152
152
152
163
160
161
158
159
156
153
154
157
not supplied
not supplied
not supplied
not supplied
not supplied
#2
F902
#2
#2
#2
not supplied
#3
not supplied
162
155
151
151
DVD mechanism deck section
162
✩ New part of EEP ROM (IC103) on the DMB10 board cannot be used.
Therefore, if the mounted DMB10 board (A-1104-744-A) is replaced,
exchange new EEP ROM (IC103) with that used before the replacement.
