HCD-FX10
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
CND : Canadian model.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

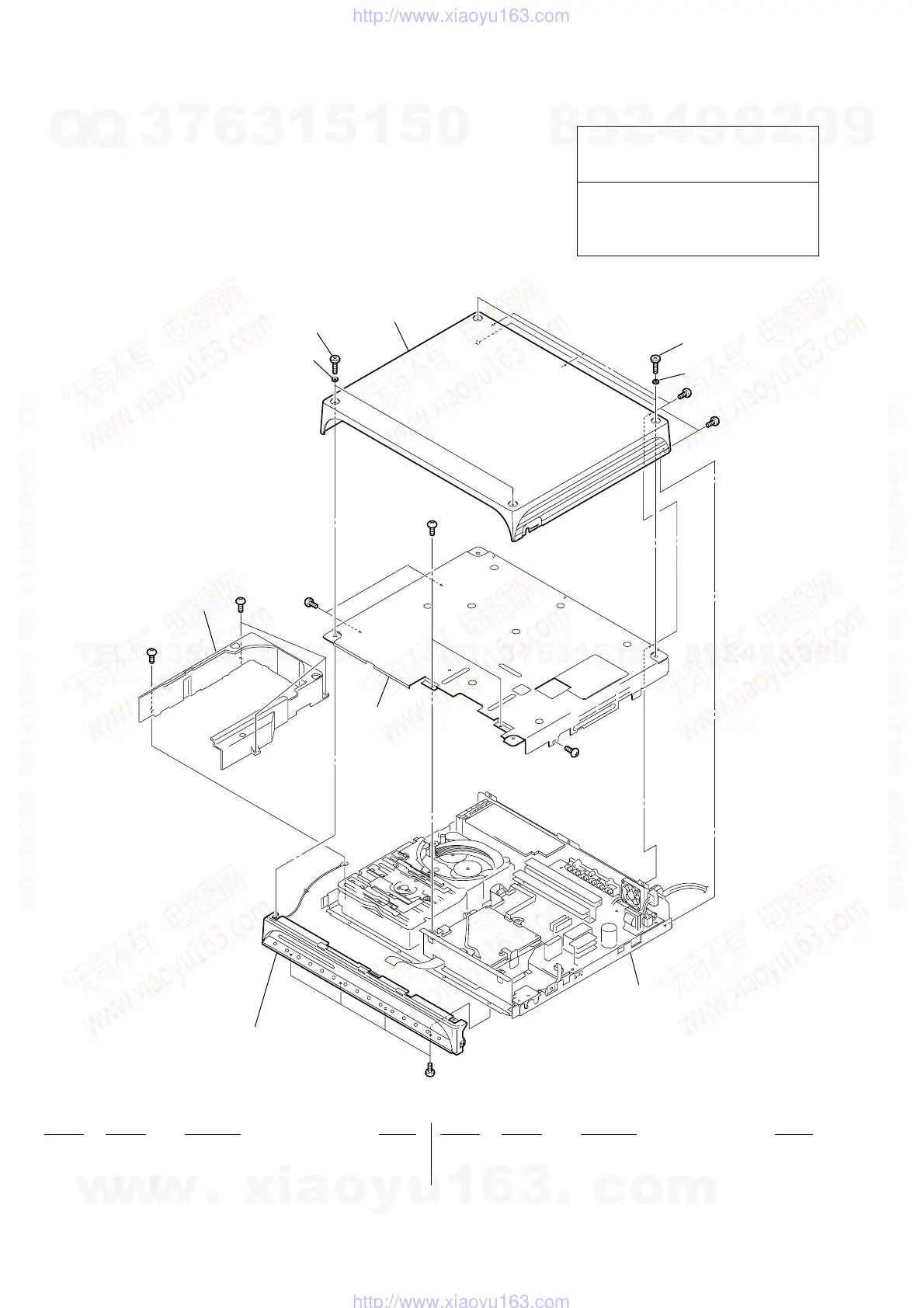

7-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
1 X-2055-097-1 TOP PANEL SUB ASSY
2 4-227-843-11 SCREW (TP), FLAT HEAD
3 2-585-409-01 CAP (SCREW)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
1
2
3
2
3
chassis section-1
#1
#2
#2
#1
#1
#
#1
#2
front panel assy section
not
supplied
not
supplied
