Sony HCD-FX10 - RELAY Board; Motor (Stocker) Assy (Stocker)(M761)

15
HCD-FX10
3

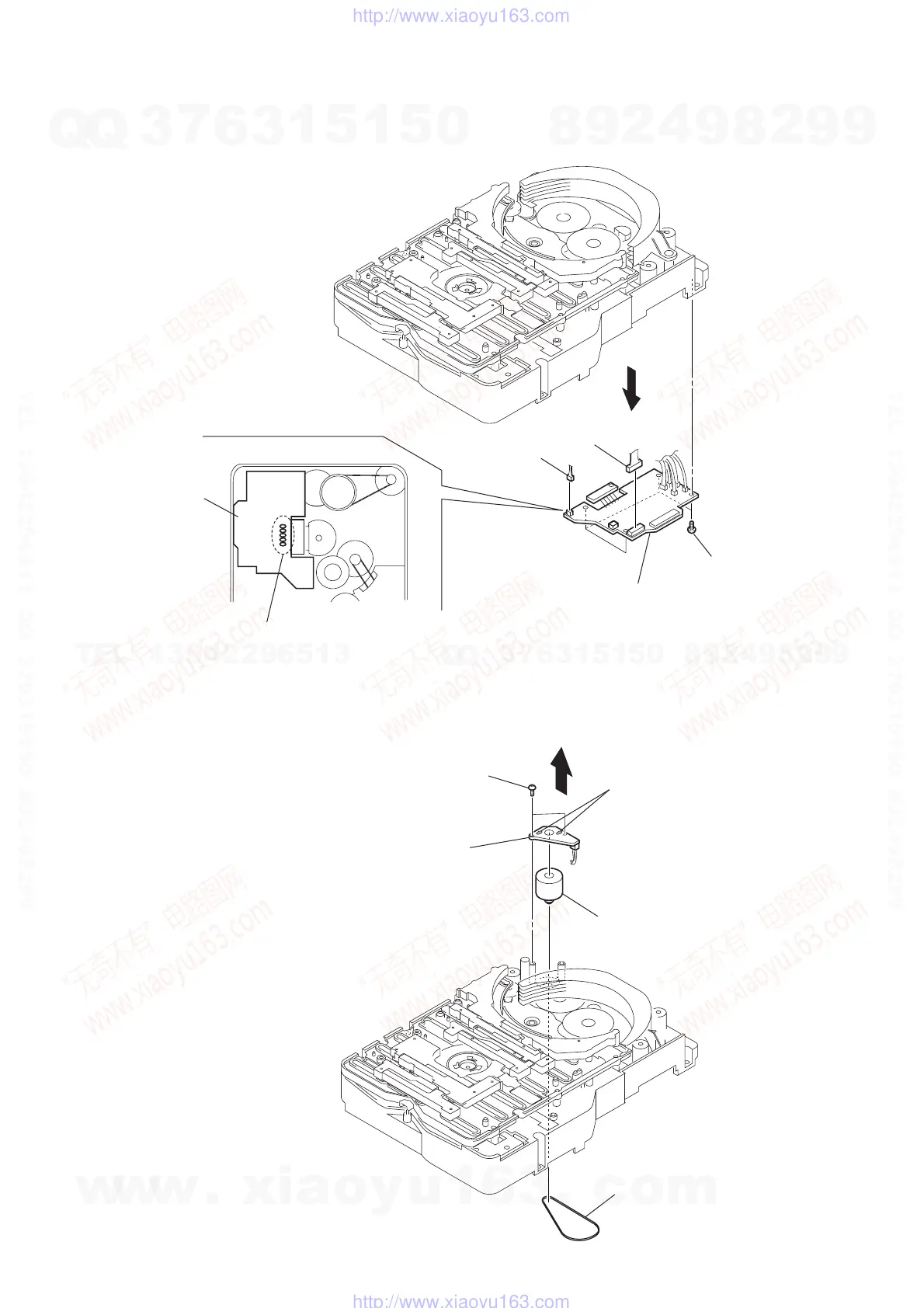

1 Remove five solders.
– bottom view –
RELAY board
2 four screws
(+BVTP2.6)
4 connector
(CN710)
5 connector
(CN703)
6 RELAY board
4
5 stocker motor board
3 two screws
(+BVTP2.6)
2 Remove two solders
6 motor (stocker) assy
(stocker) (M761)
1 belt (stocker)
3-12. RELAY BOARD
3-13. MOTOR (STOCKER) ASSY (STOCKER)(M761)
